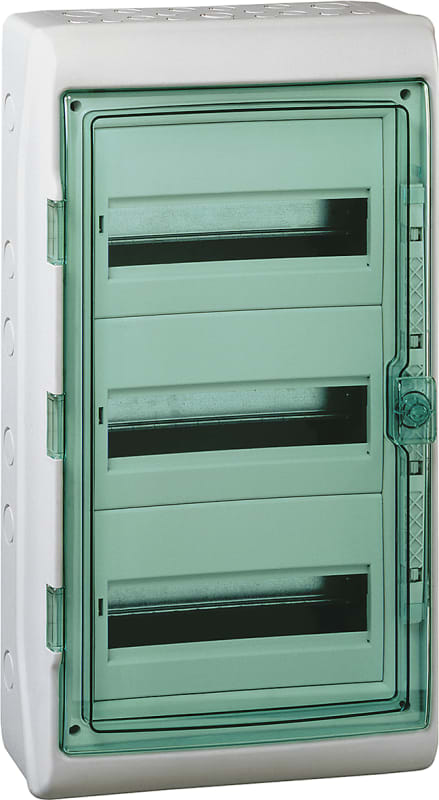

Kaedra IP65 modular enclosure 3X18MOD
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 13436 Kaedra - for module - 3 x 18 modules - 4 terminal blocks.
Technical Specifications
- Manufacturer part number (MPN)
- 13436
- EAN / GTIN
- 3303430134367
- Sales unit
- pcs
- Package quantity
- 19 pcs
- IP rating
- IP65
- Mounting method
- Surface mounted
- Colour
- Grey
- Width
- 448 mm
- UV resistant
- Yes
- Height
- 610 mm
- Depth
- 160 mm
- RAL-number
- 7035
- Number of rows
- 3
- Type of covering
- Door
- Inner depth
- 88 mm
- Housing material
- Plastic
- Width in number of modular spacings
- 18
- Type of door
- Single
- Degree of protection (IP)
- IP65
- Cover model
- Closed
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3303430134367
- SAP 1000521149
- Code 8846443
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric ACTI9 IC60 RCBO - 3P - 10 A - C Curve - 10000A/15KA - 30 mA - A type A9D17310
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 150A, 230V AC 50/60Hz coil, screw clamp terminals LC1D150P7
Schneider Electric
Busbar. 2P L1/N-L2 18 mod
A9XPH218
Schneider Electric

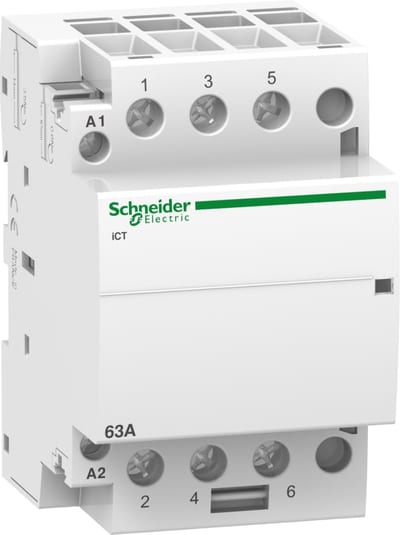

Schneider Electric iCT 63A 3NO 220...240V 50Hz contactor A9C20863
Schneider Electric

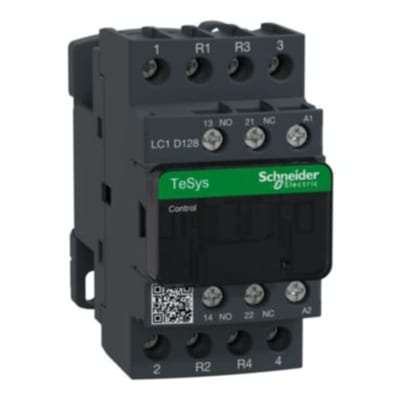

Schneider Electric Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 25A, 230VAC 50/60Hz coil, screw clamp terminal LC1D128P7
Schneider Electric

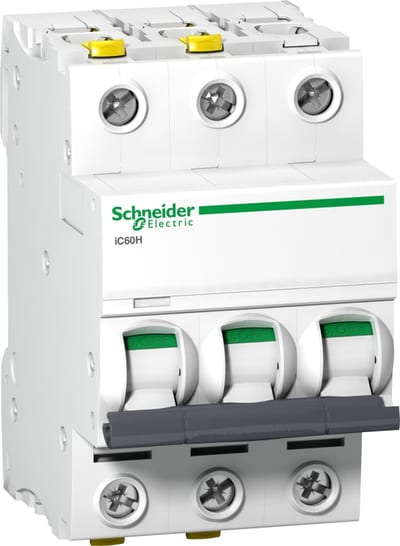

Schneider Electric A9F07306 ACTI9 IC60H Miniature Circuit Breaker 3P 6 A, Curve C
Schneider Electric

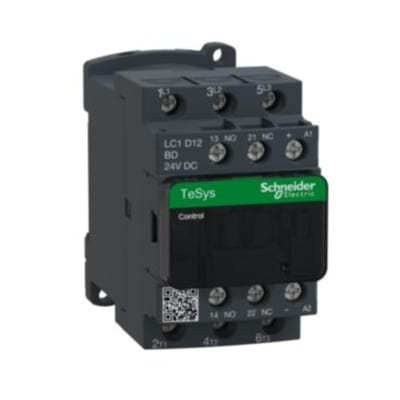

Contactor LC1D12BD 24VDC
Schneider Electric

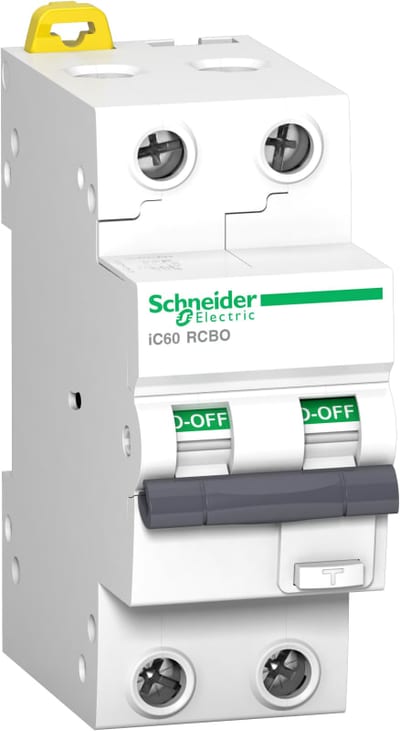

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 2P, 10A, C curve, 10000A/15KA, A-SI type, 30MA A9D27210
