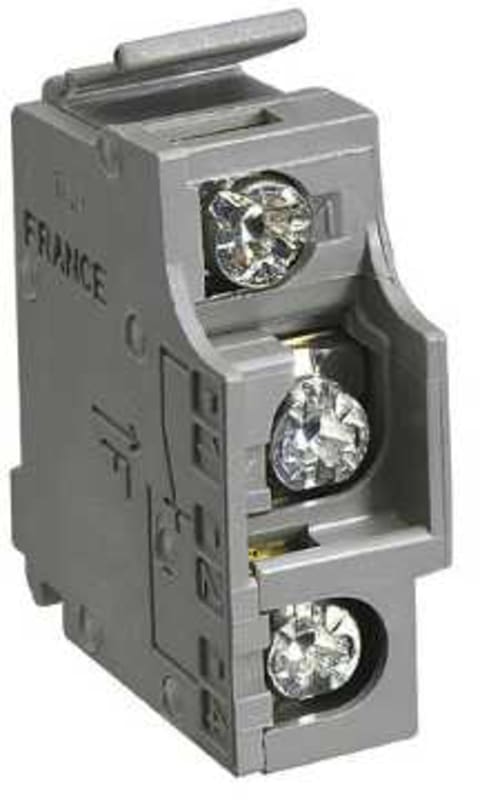

Schneider Electric standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 29450 — standard auxiliary contact, circuit breaker status OF/SD/SDE/SDV, 1 changeover contact type, screwless spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 29450 EAN / GTIN: 3303430294504 Sales unit: pcs Package quantity: 10 pcs Product or component type: Auxiliary contact Device short name: OF; SD; SDE; SDV Device application: Breaker status monitoring Range compatibility: ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; ComPact ComPacT INS; ComPact Compact INV; ComPact ComPact NSX; EasyPact EasyPact CVS; PowerPact PowerPact Multistandard; ComPact ComPact NSX DC Signal contacts composition: 1 NO/NC Fault type: General electric fault Local signalling: ON/OFF indication for open/close; Trip indicator for relay trip indicator; Fault trip for electrical fault Auxiliary contacts type: Standard mounting mode: Clip-on [Ith] conventional free air thermal current: 5 A Breaking capacity (A): AC-12: 6 A at 24 V AC 50/60 Hz; AC-12: 6 A at 48 V AC 50/60 Hz; AC-12: 6 A at 110 V AC 50/60 Hz; AC-12: 6 A at 220/240 V AC 50/60 Hz; AC-12: 6 A at 380/440 V AC 50/60 Hz; AC-12: 6 A at 480 V AC 50/60 Hz; AC-12: 6 A at 660/690 V AC 50/60 Hz; AC-15: 6 A at 24 V AC 50/60 Hz; AC-15: 6 A at 48 V AC 50/60 Hz; AC-15: 5 A at 110 V AC 50/60 Hz; AC-15: 4 A at 220/240 V AC 50/60 Hz; AC-15: 2 A at 380/440 V AC 50/60 Hz; AC-15: 1.5 A at 480 V AC 50/60 Hz; AC-15: 0.1 A at 660/690 V AC 50/60 Hz; DC-12: 6 A at 24 V DC 50/60 Hz; DC-12: 2.5 A at 48 V DC 50/60 Hz; DC-12: 0.6 A at 110 V DC 50/60 Hz; DC-12: 0.3 A at 250 V DC 50/60 Hz; DC-14: 1 A at 24 V DC 50/60 Hz; DC-14: 0.2 A at 48 V DC; DC-14: 0.05 A at 110 V DC; DC-14: 0.03 A at 250 V DC minimum load: 100 mA at 24 V DC Auxiliary connection terminal: Spring 0.5…1.5 mm² (20 AWG...16 AWG) Accessory / separate part category: Spare part for Compact NS630b...1600; Spare part for Compact NS1600b...3200 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 1.400 cm Package 1 Width: 7.000 cm Package 1 Length: 7.000 cm Package 1 Weight: 16.000 g Unit Type of Package 2: BB1 Number of Units in Package 2: 10 Package 2 Height: 4.500 cm Package 2 Width: 16.000 cm Package 2 Length: 16.000 cm Package 2 Weight: 176.000 g Unit Type of Package 3: S03 Number of Units in Package 3: 300 Package 3 Height: 30.000 cm Package 3 Width: 30.000 cm Package 3 Length: 40.000 cm Package 3 Weight: 5.590 kg Country of origin: CN Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3303430294504
- SAP 1000037337
- Code 8771139
