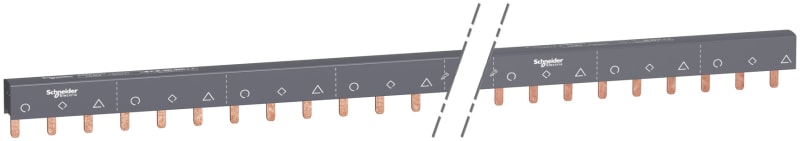

Schneider Electric ACTI9 - comb busbar - 3L - 18 mm pitch - 57 modules - 100A A9XPH357

Schneider Electric A9XPH357 Busbar 3pol (L1-L2-L3), length 57 modules.

Manufacturer part number (MPN)

A9XPH357

EAN / GTIN

3606480485152

Sales unit

pcs

Package quantity

5 pcs

Number of poles

3P

Range

Acti9

Product or component type

Comb busbar

mounting mode

Horizontal

Accessory / separate part category

Connection accessory

Lines description

3L

Length in 18 mm modules

57

Standards

EN/IEC 61439-1

Number of ways

19 ways 3 L

Distribution type

L1 L2 L3

Poles configuration for 1 way

1 x 3P

Connection pitch

18 mm

Connector type

Tooth

Distance between way

54 mm

Marking

L1 L2 L3

Insulation

Insulated

Device presentation

Cuttable

Provided equipment

Set of 10 end piece

[Ie] rated operational current

100 A at 40 °C

[Ue] rated operational voltage

415 V AC

[Ui] rated insulation voltage

500 V AC conforming to IEC 61439-2

Mounting location

Top or bottom on tunnel type terminals; Top or bottom on double terminal

9 mm pitches

114

Height

1000 mm

Colour

White (RAL 9003)

Range compatibility

Acti9 iC60; Acti9 iK60; Acti9 iID; Acti9 iID K; Acti9 iSW; Acti9 iSW-NA; Multi9 C60

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to IEC 60947-7-1

IP degree of protection

IP20 with end-pieces and tooth covers

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

270

Warranty (in months)

18

Insulated

Yes

Number of phases

3

Cross section

16 mm²

Rated permanent current Iu

100 A

Length

1000 mm

Width in number of modular spacings

57

Type of electric connection

Pin

Suitable for devices with auxiliary switch

Yes

Suitable for devices with N-conductor

No

Suitable for number of devices

19

Max. rated operation voltage Ue

415 V

Module width

18 mm

Can be cut to size

Yes

Country of origin

Germany

HS Code

8536.90
