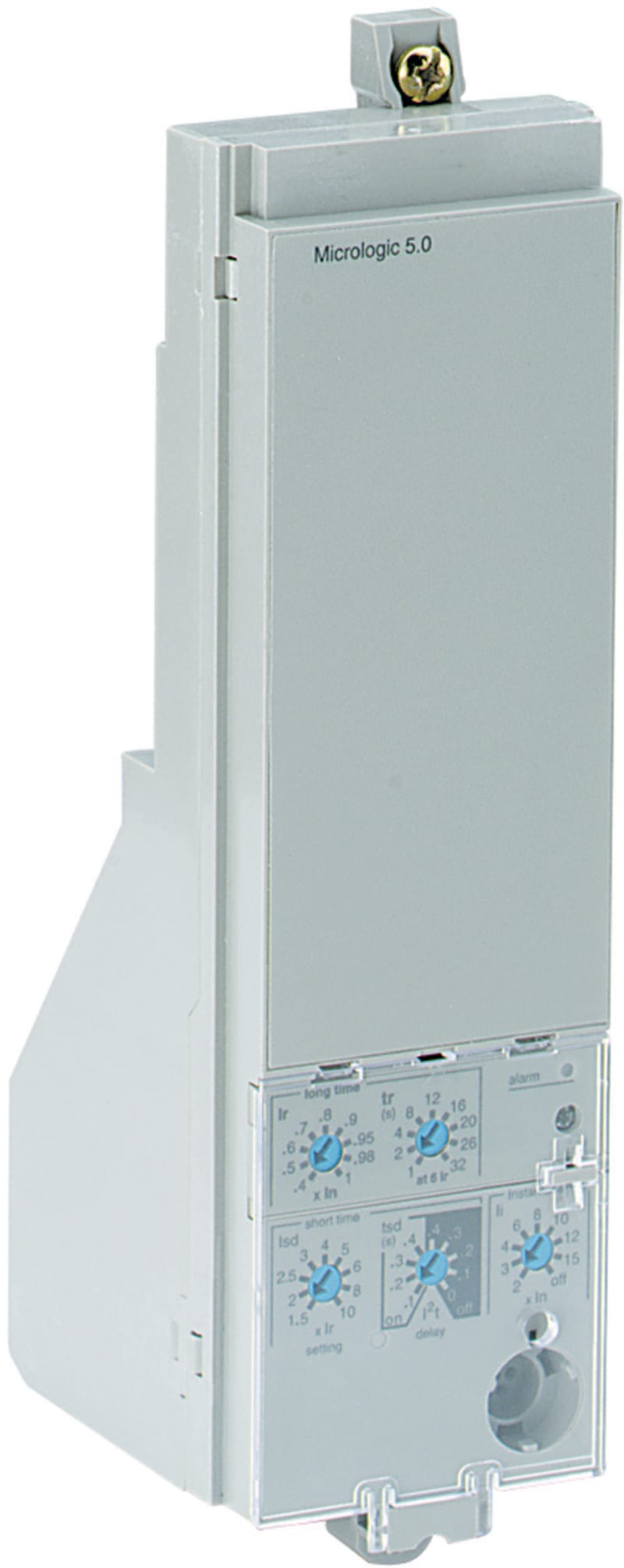

Schneider Electric trip unit MicroLogic 5.0, ComPact NS630B to NS3200 fixed and drawout, selective protections

Schneider Electric 33511 Micrologic 5.0.

Manufacturer part number (MPN)

33511

EAN / GTIN

3303430335115

Sales unit

pcs

Range

ComPacT

Range of product

ComPacT NS630b...1600 new generation

Product or component type

Trip unit

Trip unit name

MicroLogic 5.0

Trip unit technology

Electronic

Range compatibility

ComPacT NS630b...1600

Device application

Distribution

Number of poles

4P; 3P

Protected poles description

3t; 3t + N/2; 4t

Trip unit protection functions

Selective protection

Protection type

for short time short-circuit protection; for overload protection (long time); for instantaneous short-circuit protection

Trip unit rating

630 A at 50 °C; 800 A at 50 °C; 1000 A at 50 °C; 1250 A at 50 °C; 1600 A at 50 °C; 2000 A at 50 °C; 2500 A at 50 °C; 3200 A at 50 °C

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Drawout; Fixed

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

0.4...1 x In

Long-time protection delay adjustment type tr

Adjustable 9 settings

[tr] long-time protection delay adjustment range

0.7…16.6 s at 7.2 x Ir; 0.5…24 s at 6 x Ir; 12.5…600 s at 1.5 x Ir

Thermal memory

20 mn

Short-time protection pick-up adjustment type Isd

Adjustable 9 settings

[Isd] Short-time protection pick-up adjustment range

1.5...10 x Ir

Short-time protection delay adjustment type tsd

Adjustable

[tsd] Short-time protection delay adjustment range

0…0.4 s I²t=off; 0.1…0.4 s I²t=on

Instantaneous protection pick-up adjustment type Ii

Adjustable 9 settings

[Ii] instantaneous protection pick-up adjustment range

2...15 x In; Off

Earth-leakage protection

Without

Zone selective interlocking ZSI

Without

Local signalling

3 LEDs (red) for electrical fault; 1 LED (red) for internal error

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.9 cm

Package 1 Width

8.0 cm

Package 1 Length

21.5 cm

Package 1 Weight

190.0 g

Country of origin

FR

Warranty (in months)

18

Width

53.6 mm

Height

199.5 mm

Depth

67.5 mm

Rated permanent current Iu

3200 A

Short-circuit release function

Delayed

Overload release current setting

252–3200 A

External power supply required

No

Voltage type (operating voltage)

AC

With ground fault protection function

No

Rated switch current

3200 A

End value adjustment range undelayed short-circuit release

48000 A

Operating voltage AC 50 Hz

690 V

Operating voltage AC 60 Hz

690 V

Type of motor protection

Electronic release

Voltage type for actuating

Self powered

Current setting undelayed short-circuit release

6400–48000 A

Current setting delayed short-circuit release

378–32000 A

HS Code

8536.30
