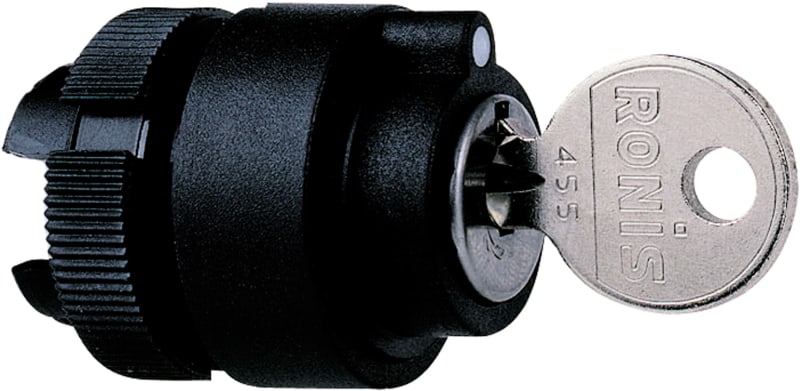

Schneider Electric ZA2BG2 Key Selector Switch Head, 2 Positions, Withdrawal Left

Schneider Electric ZA2BG2 is a key selector switch head with two fixed positions and key withdrawal in the left-hand position, part of the Harmony XAC range. The 22.5 mm mounting head features a black cap and unmarked appearance, rated IP66/IP65 with IK08 impact resistance. It complies with IEC 60947-5-1, UL 508 and CSA C22.2 No 14 for use in industrial control panels.

Manufacturer part number (MPN)

ZA2BG2

EAN / GTIN

3389110648621

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XAC

Product or component type

Selector switch

Component name

ZA2

Product compatibility

XACA

Product weight

0.042 kg

Cap/operator or lens colour

Black

Marking

Unmarked

Mounting location

Front of enclosure; Base of enclosure

Sale per indivisible quantity

1

Standards

IEC 60947-5-1; CSA C22.2 No 14; UL 508; IEC 60204-32

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

50

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

2

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Colour control element

Black

Switching function latching

No

HS Code

8538.90
