WALL-Mount Cabinet WITH WINDOW. 3X3X1,5
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D3315T Wall-mount cabinet With Window. 3X3X1,5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D3315T
- EAN / GTIN
- 3606480159732
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 300 mm
- Enclosure nominal width
- 300 mm
- Enclosure nominal depth
- 150 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- DNV; UL; BV; cUL; GL
- Product weight
- 4.04 kg
- Electromagnetic compatibility
- Electromagnetic field immunity test
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 18.500 cm
- Package 1 Width
- 32.000 cm
- Package 1 Length
- 31.000 cm
- Package 1 Weight
- 4.025 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 42
- Package 2 Height
- 108.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 184.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 300 mm
- Height
- 300 mm
- Depth
- 150 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159732
- SAP 1000089576
- Code 8883058
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric VW3A31814 Cable Entry Box Size 6, Altivar UL Type 1 Kit
Schneider Electric
Push-button for XACA217 arrow down
XACA924
Schneider Electric
Connector 1,5M Cable BASE H
ZARC05
Schneider Electric
Door with Cut-Out IP30-PRISMASET P B400
LVS08594
Schneider Electric
Schneider Electric TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 40 A - 230 V AC coil LC2D40AP7
Schneider Electric
WALL-Mount Cabinet WITH WINDOW. 8X6X2
NSYS3D8620T
Schneider Electric
Mounting Plate Metal 400X400
NSYMM44SB
Schneider Electric

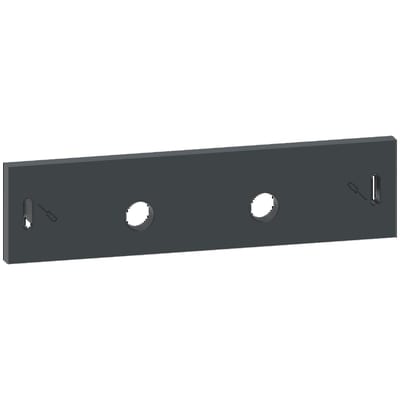

Front Cover for LR9G500
