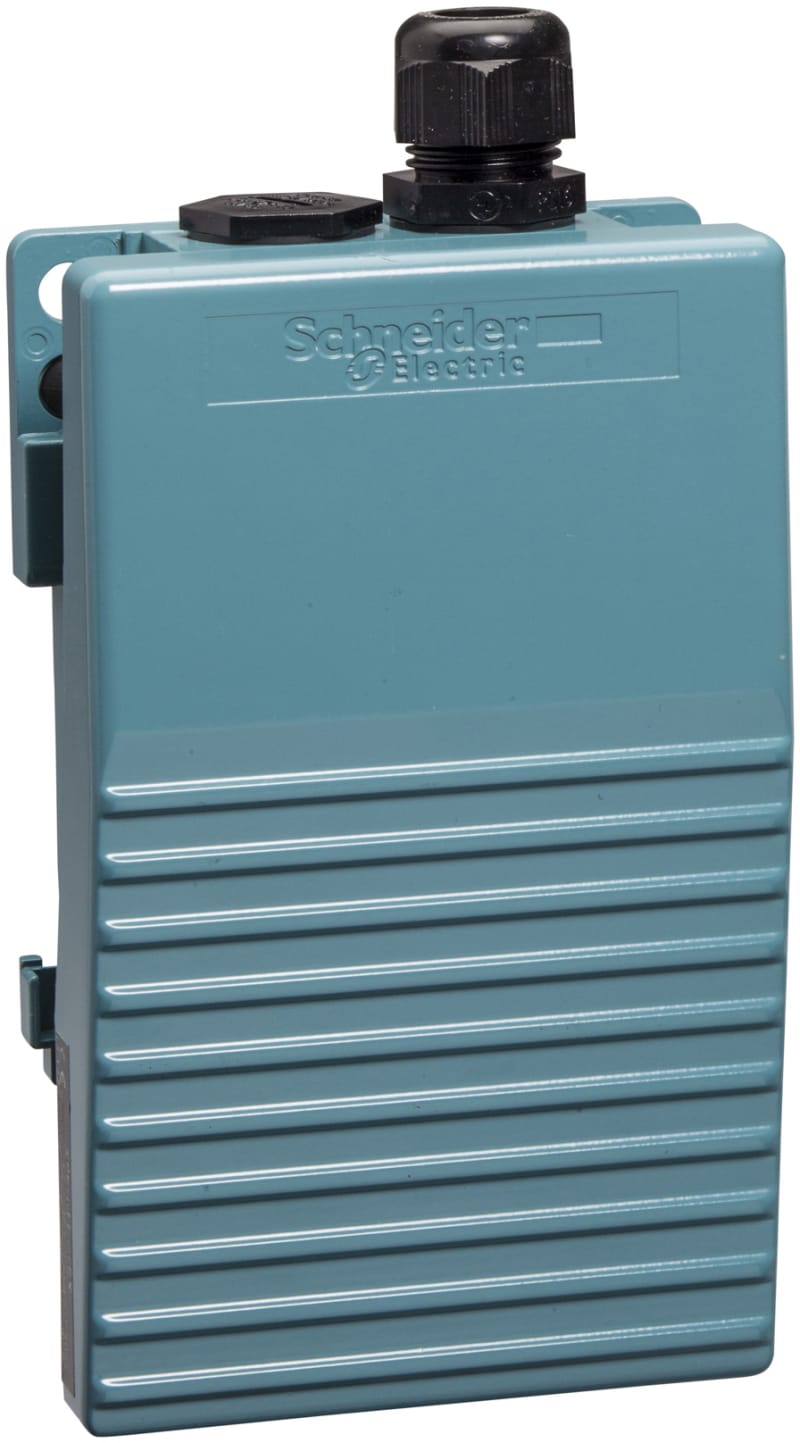

Schneider Electric XPEM111 Preventa XPE, Single foot switch, metal, blue, without cover, 2 NO + 2 NC

Schneider Electric XPEM111 Preventa XPE, Single foot switch, metal, blue, without cover, 2 NO + 2 NC is listed under Sensors & Instrumentation / Position Switches. Sales unit: pcs; Package quantity: 4 pcs; Range of product: Harmony XPE; Product or component type: Foot switch; Material: Metal; Foot switch type: Single foot switch.

Manufacturer part number (MPN)

XPEM111

EAN / GTIN

3389110650129

Sales unit

pcs

Package quantity

4 pcs

Range of product

Harmony XPE

Product or component type

Foot switch

Material

Metal

Foot switch type

Single foot switch

Device short name

XPEM

Trigger mechanism

Without trigger mechanism

Contact operation

1 step

Contacts type and composition

2 NC + NO

Colour

Blue

Positive opening

With conforming to IEC 60947-5-1 appendix K

Connections - terminals

Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end; Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end

cable entry

2 entries tapped for Pg 16 cable gland

Mechanical durability

15000000 cycles

[Ie] rated operational current

3 A, 240 V, AC-15, A300; 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; 500 V (pollution degree 3) conforming to NF C 20-040 group C; 500 V (pollution degree 3) conforming to VDE 0110 group C; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Maximum resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3; 25 MOhm conforming to NF C 93-050 method A

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1; 10 A cartridge fuse type gG conforming to VDE 0660-200

Rated operational power in W

10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Product weight

1.2 kg

Standards

IEC 60947-5-1; VDE 0660-200

Product certifications

FIMKO; CSA

Protective treatment

TC

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

150 gn conforming to NF E 09-031; 20 gn conforming to IEC 60068-2-27

Overvoltage category

Class I conforming to IEC 61140; Class I conforming to NF C 20-030

IP degree of protection

IP66 conforming to IEC 60529

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.800 cm

Package 1 Width

12.000 cm

Package 1 Length

18.800 cm

Package 1 Weight

1.338 kg

Unit Type of Package 2

S02

Number of Units in Package 2

4

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.733 kg

Unit Type of Package 3

P06

Number of Units in Package 3

64

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

101.540 kg

Country of origin

MA

Warranty (in months)

18

Width

104 mm

Height

104 mm

Depth

172 mm

Number of switch positions

1

Rated operation current Ie at AC-15, 230 V

3 A

Suitable for safety functions

Yes

Type of command

On or off

With protection hood

No

With interlocking

No

Degree of protection (IP)

IP66

With protective insulation

No

Switching function latching

No

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

2

HS Code

8536.50
