NS1000 L 4P Withdrawable with Motor
Pricing
Request a quote
We reply within 24 hours
Product Description

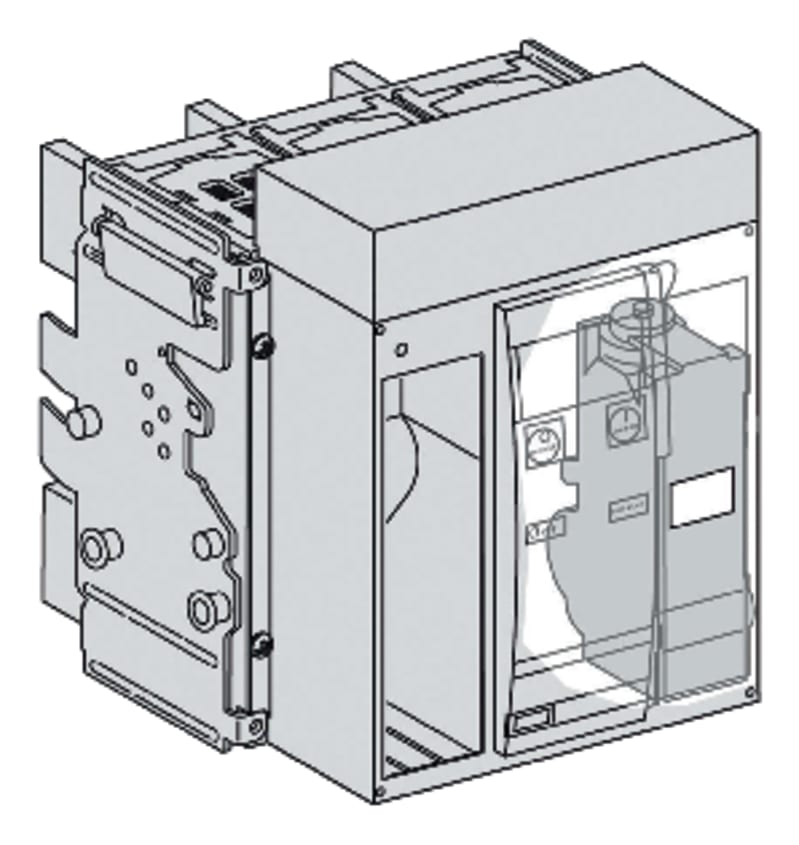

Schneider Electric 33396 NS1000 L 4P Withdrawable With Motor.
Technical Specifications
- Manufacturer part number (MPN)
- 33396
- EAN / GTIN
- 3303430333968
- Sales unit
- pcs
- Number of poles
- 4P
- Rated permanent current Iu
- 1000 A
- With integrated under voltage release
- No
- Rated voltage
- 690 V
- Power loss
- 308 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- Yes
- Type of electrical connection of main circuit
- Bolt connection
- Type of control element
- Push button
- With switched-off indicator
- Yes
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 150 kA
- Suitable for DIN rail (top hat rail) mounting
- No
- Integrated earth fault protection
- No
- Motor drive optional
- No
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- No
- Complete device with protection unit
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430333968
- SAP 1200722422
- Code 83837239
Product Documentation
