NS1000 N 4P Withdrawable with Motor
Pricing
Request a quote
We reply within 24 hours
Product Description

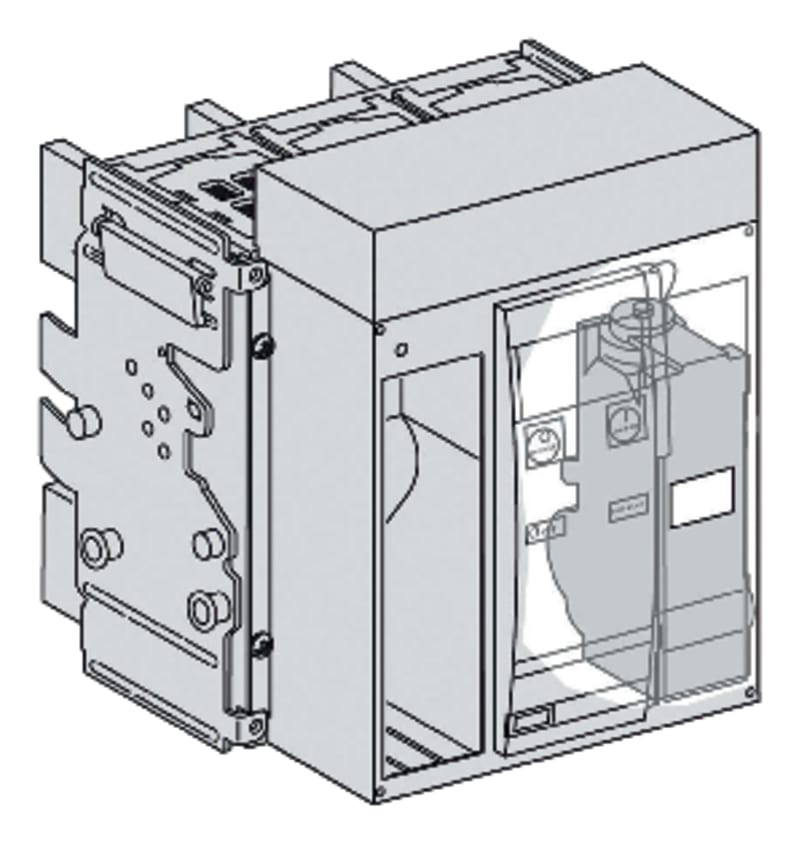

Schneider Electric 33394 NS1000 N 4P Withdrawable With Motor.
Technical Specifications
- Manufacturer part number (MPN)
- 33394
- EAN / GTIN
- 3303430333944
- Sales unit
- pcs
- Number of poles
- 4P
- Rated permanent current Iu
- 1000 A
- With integrated under voltage release
- No
- Rated voltage
- 690 V
- Power loss
- 200 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- Yes
- Type of electrical connection of main circuit
- Bolt connection
- Type of control element
- Push button
- With switched-off indicator
- Yes
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 50 kA
- Suitable for DIN rail (top hat rail) mounting
- No
- Integrated earth fault protection
- No
- Motor drive optional
- No
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- No
- Complete device with protection unit
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430333944
- SAP 1200722421
- Code 83837186
Product Documentation
More from Schneider Electric
Schneider Electric
Eth Managed Switch 8TX- Harsh
MCSESM083F23F0H
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120N, 2P, 125A, B curve, 10000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9N18347
Schneider Electric
Schneider Electric Complete push button, Harmony XB4, Explosive atmosphere, pushbutton green with boot and legend insertion XB4BP381GEX
Schneider Electric
Connector mini male straight 5ST
INS44303
Schneider Electric

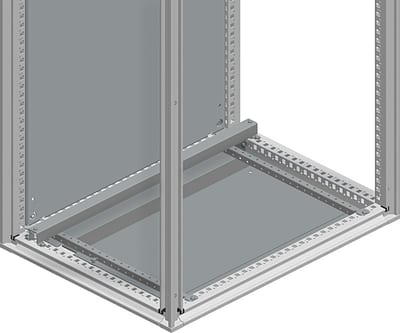

Cable routing, bottom centre 600
NSYFCG60
Schneider Electric

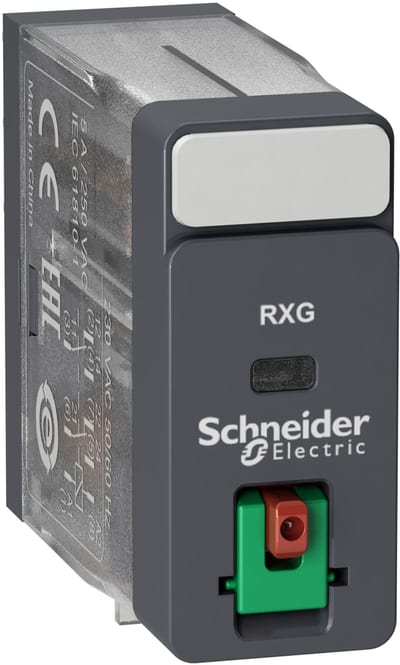

Schneider Electric Interface plug-in relay, 5 A, 2 CO, lockable test button, 48 V AC RXG21E7
Schneider Electric

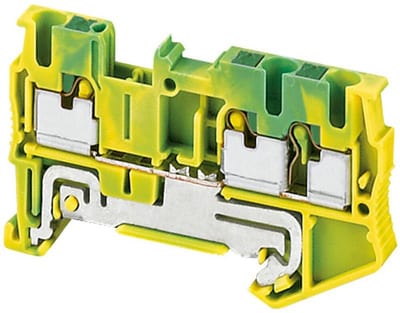

Schneider Electric NSYTRP23PE Linergy TR Push-In PE Terminal Block 2.5 mm² 3-Position
