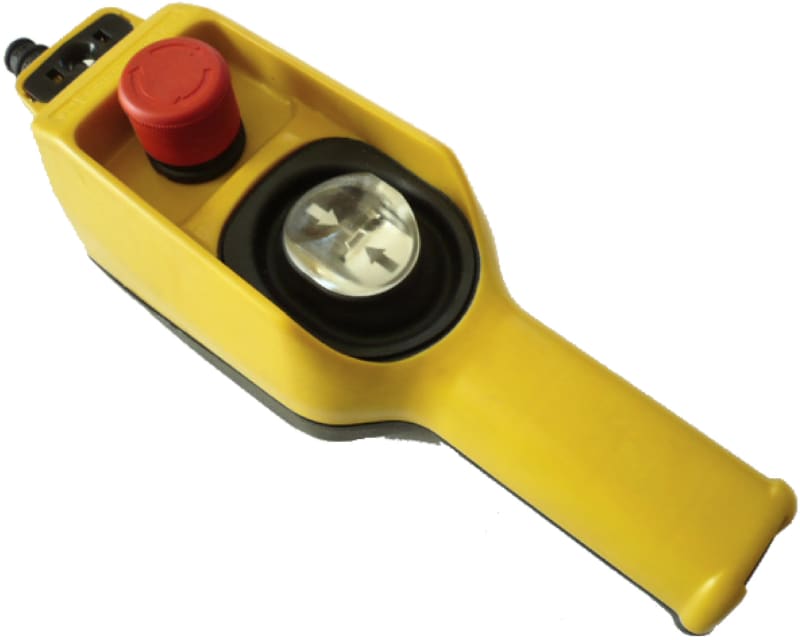

Schneider Electric pendant station XAC-D - 1 rocker lever 1 Emergency stop XACD22A1241

Schneider Electric XACD22A1241 Suspended enclosure 2Ret.2Hast.Emergency stop.

Manufacturer part number (MPN)

XACD22A1241

EAN / GTIN

3389110655971

Sales unit

pcs

Package quantity

6 pcs

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACD

Control station type

Double insulated

Enclosure material

Polypropylene

Control type

Intuitive

Electrical circuit type

Control circuit

enclosure type

Complete ready for use

Control station application

Control of 2-speed hoist motor

Motor starter type

Reversing

Control station composition

1 2-directional button + 1 emergency stop

Control button type

Stop push-button Ø 30 mm 1 NC latching; First direction button 1 NC + 2 NO raise, slow-fast; Second direction button 1 NC + 2 NO lower, slow-fast

Product compatibility

ZB2BE102 for emergency stop; XEDS1241 for reversing operation

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60204-32; UL 508

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

70 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Mechanical durability

3000000 cycles

Cable entry

Rubber sleeve with stepped entry 7…18 mm

Contact code designation

A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

16 A

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Staggered; Snap action

Maximum resistance across terminals

25 MOhm

Operating force

16 N

Short-circuit protection

10 A fuse protection by cartridge fuse type gG

Rated operational power in W

40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Terminals description ISO n°1

(23-24)NO_CL; (61-62)NC; (43-44)NO_CL; (13-14)NO; (51-52)NC; (33-34)NO

Terminals description ISO n°2

(11-12)NC

Terminal identifier

(13-14)NO; (11-12)NC

Product weight

0.42 kg

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

FR

Warranty (in months)

18

Width

82 mm

Height

300.5 mm

Depth

101 mm

Number of command positions

2

Colour housing cover

Yellow

Suitable for emergency stop

Yes

Housing material

Plastic

Number of speeds

2

Type of executable motions

Transport - hoist

Degree of protection (IP)

IP65

Rated operation current Ie at AC-15, 600 V

1.2 A

HS Code

8537.10
