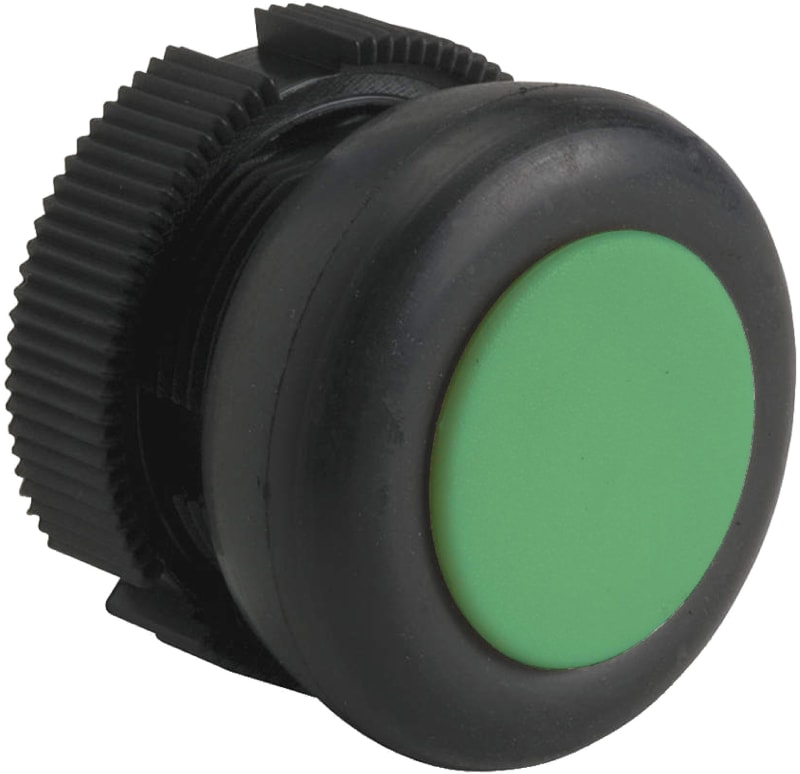

Schneider Electric XACA9413 round head for pushbutton - spring return - XAC-A - green - booted
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric XACA9413 round head for pushbutton - spring return - XAC-A - green - booted is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Range of product: Harmony XAC; Product or component type: Head for push-button; Component name: XACA; Marking: Unmarked.
Technical Specifications
- Manufacturer part number (MPN)
- XACA9413
- EAN / GTIN
- 3389110645156
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony XAC
- Product or component type
- Head for push-button
- Component name
- XACA
- Marking
- Unmarked
- Operator additional information
- Booted
- Cap/operator or lens colour
- Green
- Product compatibility
- XACA..
- Mounting location
- Front of enclosure
- Sale per indivisible quantity
- 10
- Standards
- IEC 60947-5-1; CSA C22.2 No 14; UL 508; IEC 60204-32
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Product weight
- 0.01 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.100 cm
- Package 1 Width
- 3.000 cm
- Package 1 Length
- 3.000 cm
- Package 1 Weight
- 9.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 3.000 cm
- Package 2 Width
- 9.000 cm
- Package 2 Length
- 15.000 cm
- Package 2 Weight
- 95.000 g
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 700
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 7.094 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Green
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65/IP67
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110645156
- SAP 1000068985
- Code 8749992
Product Documentation
