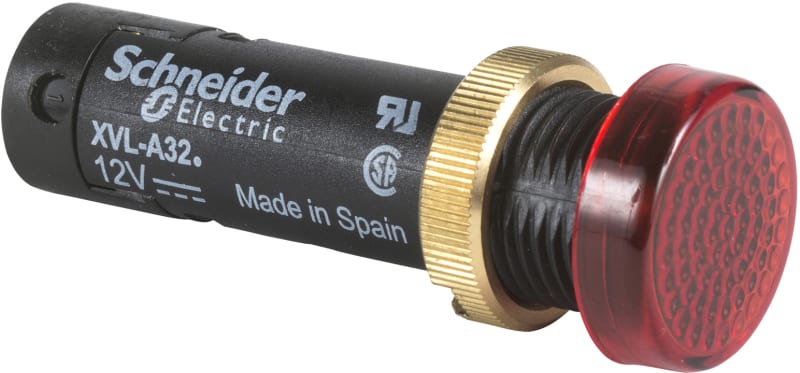

LED lamp 12mm 12V RED

Schneider Electric XVLA324 LED lamp 12mm 12V Red.

Manufacturer part number (MPN)

XVLA324

EAN / GTIN

3389110651621

Sales unit

pcs

Package quantity

10 pcs

Voltage

12 V

Range of product

Harmony XVL

Product or component type

LED pilot light with integral lens cap

Component name

XVL

Mounting diameter

12 mm

Light source

Covered LED

Light block colour

Red

Protection type

Built-in by diode; Integral ballast resistor

[Us] rated supply voltage

12 V

IP degree of protection

IP65 (with seal XVLZ912) conforming to IEC 60529; IP65 (with seal XVLZ912) conforming to NF C 20-010; IP40 conforming to IEC 60529; IP40 conforming to NF C 20-010

Sale per indivisible quantity

10

Supply circuit type

DC

Connections - terminals

Threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm²

Current consumption

18 mA

[Ui] rated insulation voltage

50 V conforming to IEC 60947-1

Bulb lifespan

100000 h

Nominal voltage limit

0.8...1.1 Un

Terminals description ISO n°1

(X1-X2)PL

Height

16 mm

Width

16 mm

Depth

51 mm

Product weight

0.007 kg

Product certifications

CSA; UL

Protective treatment

TC

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Overvoltage category

Class 3 conforming to IEC 60536; Class 3 conforming to NF C 20-030

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

100

Country of origin

ES

Warranty (in months)

18

Hole diameter

12 mm

Voltage type

AC/DC

Colour lens

Red

Number of indicator lights

1

Rated operating voltage Ue

12 V

Colour front ring

Black

Type of electric connection

Flat plug-in connection

Degree of protection (IP)

IP40

With light source

Yes

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of lamp socket

LED

Type of lens

Flat

HS Code

8531.80

• EAN 3389110651621
• SAP 1000062886
• Code 8725957
