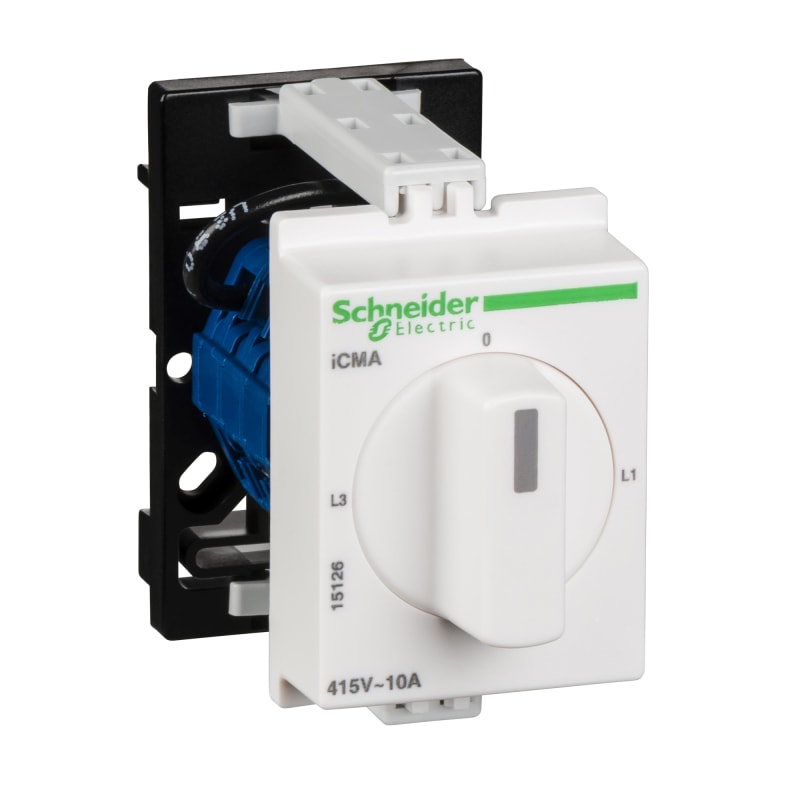

Schneider Electric ammeter selector switch iCMA - 10 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 15126 CMA Amperemetervender.
Technical Specifications
- Manufacturer part number (MPN)
- 15126
- EAN / GTIN
- 3303430151265
- Sales unit
- pcs
- Range of product
- Acti9
- Range
- Acti9
- Product name
- Acti9 iCM
- Product or component type
- Selector switch
- Device short name
- iCMA
- Device application
- Ammeter selector
- [Ue] rated operational voltage
- < 440 V AC 50/60 Hz
- [Ith] conventional free air thermal current
- 10 A
- [Ie] rated operational current
- 10 A
- Control type
- Rotary handle 4 positions
- Marking
- 0 - L1 - L2 - L3
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- 9 mm pitches
- 4
- Height
- 60 mm
- Width
- 36 mm
- Depth
- 75 mm
- Mechanical durability
- 2000000 cycles
- Electrical durability
- 1000000 cycles
- Connections - terminals
- Captive screw-jumper terminals - <= 1.5 mm²
- Standards
- IEC 60947-3
- IP degree of protection
- IP66 front face: ; IP20 terminals:
- Ambient air temperature for operation
- -20…55 °C
- Ambient air temperature for storage
- -25…80 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.0 cm
- Package 1 Width
- 8.0 cm
- Package 1 Length
- 7.5 cm
- Package 1 Weight
- 77.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 80
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 6.691 kg
- Country of origin
- AT
- Warranty (in months)
- 18
- With zero (off) position
- Yes
- Device construction
- Distributor board mounting
- Suitable for distribution board
- Yes
- With control element
- Yes
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3303430151265
- SAP 1000006694
- Code 857558
Product Documentation
More from Schneider Electric
Schneider Electric
Tesys T Profib 1,35-27A 230VAC
LTMR27PFM
Schneider Electric
Schneider Electric Serial line cartridge, Modicon M221, conveying 1 I/O extension TMC2CONV01
Schneider Electric
Schneider Electric safety controller XPS-MC - 24 V DC - 16 input - 32 LEDs signalling XPSMC16ZP
Schneider Electric
RAIL 40A 3M 3 Outlet + BUS
KNT40ED4303
Schneider Electric

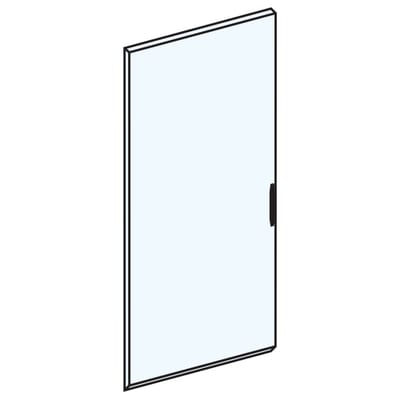

Door for PrismaSeT G CABINET-IP55-23MOD B600
LVS08326
Schneider Electric

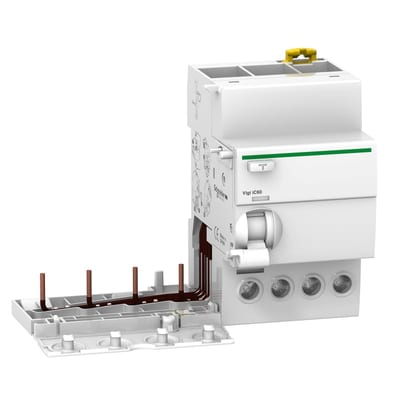

Schneider Electric Vigi IC60 - earth leakage add-on block - 4P - 25A - 100MA - A type A9V22425
Schneider Electric

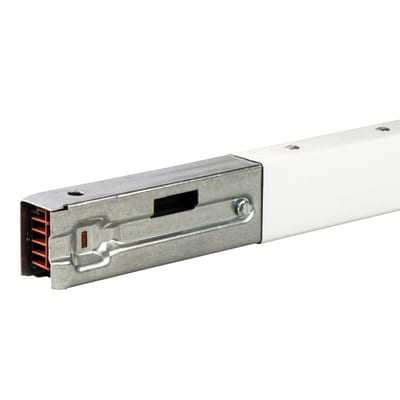

Schneider Electric Straight length, Canalis KBA, 40 A, 1 circuit 3L+N+PE, 3 tap-off units, 3 m, white KBA40ED4303W
Schneider Electric

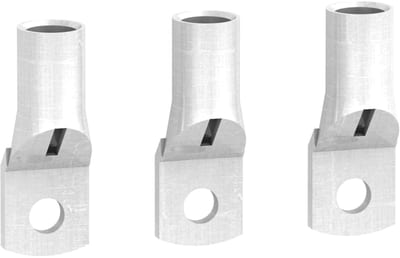

Cable LUG FOR CU 120 mm² 3 pcs
