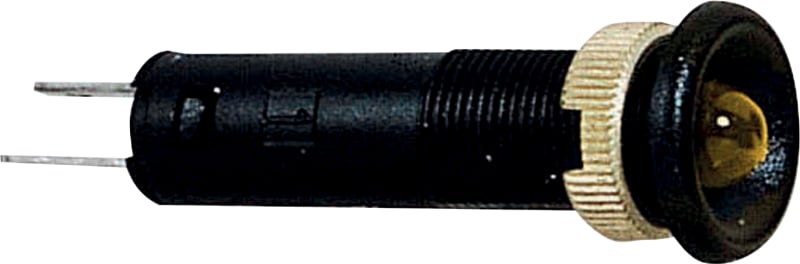

LED lamp 8mm 12V RED (XVLA124)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVLA124 LED lamp 8mm 12V Red.
Technical Specifications
- Manufacturer part number (MPN)
- XVLA124
- EAN / GTIN
- 3389110651027
- Sales unit
- pcs
- Voltage
- 12 V
- Range of product
- Harmony XVL
- Product or component type
- LED pilot light with black bezel
- Component name
- XVL
- Mounting diameter
- 8 mm
- Light source
- Protruding LED
- Light block colour
- Red
- Protection type
- Built-in by diode; Integral ballast resistor
- [Us] rated supply voltage
- 12 V
- IP degree of protection
- IP40 conforming to IEC 60529; IP40 conforming to NF C 20-010
- Sale per indivisible quantity
- 10
- Supply circuit type
- DC
- Connections - terminals
- Tag for Faston connectors: 2.8 x 0.5 mm; Tag for soldering connectors
- Current consumption
- 18 mA
- [Ui] rated insulation voltage
- 50 V conforming to IEC 60947-1
- Bulb lifespan
- 100000 h
- Nominal voltage limit
- 0.8...1.1 Un
- Terminals description ISO n°1
- (X1-X2)PL
- Height
- 12 mm
- Width
- 12 mm
- Depth
- 34 mm
- Product weight
- 0.003 kg
- Product certifications
- UL; CSA
- Protective treatment
- TC
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Overvoltage category
- Class 3 conforming to IEC 60536; Class 3 conforming to NF C 20-030
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 100
- Country of origin
- ES
- Warranty (in months)
- 18
- Hole diameter
- 8 mm
- Voltage type
- AC/DC
- Colour lens
- Red
- Number of indicator lights
- 1
- Colour front ring
- Black
- Type of electric connection
- Flat plug-in connection
- Degree of protection (IP)
- IP40
- With light source
- Yes
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of lamp socket
- LED
- Type of lens
- Flat
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3389110651027
- SAP 1000002268
- Code 816404
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PanelSet WM enclosure canopy W300XD150 Colour RAL7035.. Fixings supplied. NSYTJ3015
Schneider Electric
Jf.relay RH197M 380 for 415VAC
56518
Schneider Electric
Tilkoploblings ADAPTER-4000A, MTZ2
LVS04644
Schneider Electric
Schneider Electric transfer switch, TransferPacT automatic, 50A, 400V, 4P, rotary, frame 100A TA10D4S0504TPE
Schneider Electric
Bracket-forsterket-seismic-PrismaSeT P (LVS08710)
Schneider Electric
Schneider Electric Residual current breaker with overcur. prot. (RCBO), ACTI9 iDPN N Vigi, 1P+N, 6A, C curve, 6000A, A-SI type, 30MA A9D33606
Schneider Electric
Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 1250X500X320 IP65 NSYPLA1253G
Schneider Electric
Schneider Electric current transformer tropicalised DIN mount 600 5 cables d. 40 - bars 12X50 20X40 METSECT5MD060
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XVLA124?
- XVLA124 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is XVLA124.
- What is the HS code for XVLA124?
- The customs tariff (HS) code for XVLA124 is 8531.80.
- Who manufactures XVLA124?
- XVLA124 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for XVLA124?
- Yes — the XVLA124 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XVLA124?
- The minimum order quantity is 1.
- Is XVLA124 available?
- Yes — XVLA124 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
