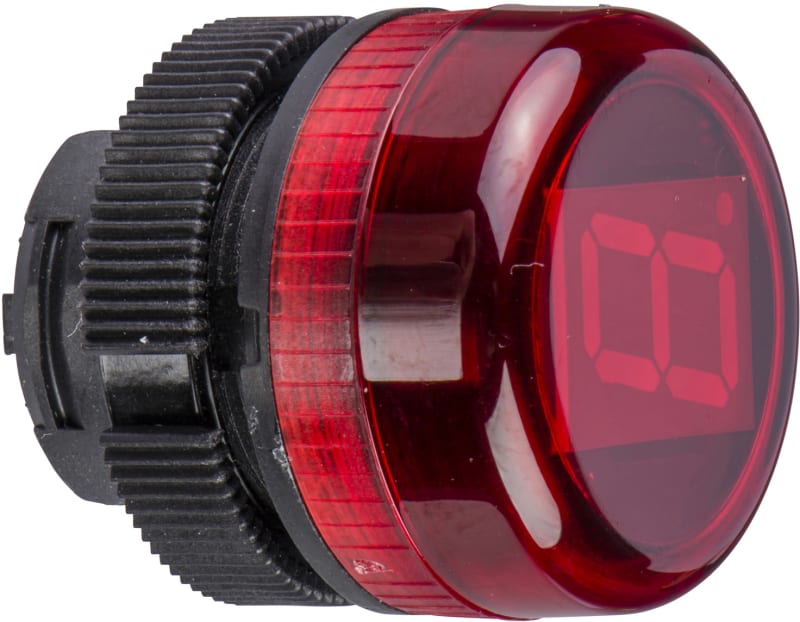

Cap FOR Display (ZA2VA04)

Schneider Electric ZA2VA04 Cap For Display.

Manufacturer part number (MPN)

ZA2VA04

EAN / GTIN

3389110648942

Sales unit

pcs

Package quantity

60 pcs

Range of product

Harmony

Product or component type

Digital display head

Mounting diameter

22 mm

Cap/operator or lens colour

Red

[Us] rated supply voltage

24 V DC

Display type

7 segments LED + decimal point

Supply voltage limits

13…30 V

Product weight

0.02 kg

Product certifications

UL; CSA

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Vibration resistance

10 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

180 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class II conforming to NF C 20-030

IP degree of protection

IP65 conforming to IEC 60529; IP65 conforming to NF C 20-010

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.200 cm

Package 1 Width

4.200 cm

Package 1 Length

4.200 cm

Package 1 Weight

20.000 g

Unit Type of Package 2

S01

Number of Units in Package 2

60

Package 2 Height

15.000 cm

Package 2 Width

15.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

1.435 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour lens

Red

Colour front ring

Black

Degree of protection (IP), front side

IP65/IP67

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Suitable for number of built-in signal lights

1

Type of lens

High

Degree of protection (NEMA)

4X, 13

HS Code

8531.90

• EAN 3389110648942
• SAP 1000073392
• Code 8739109
