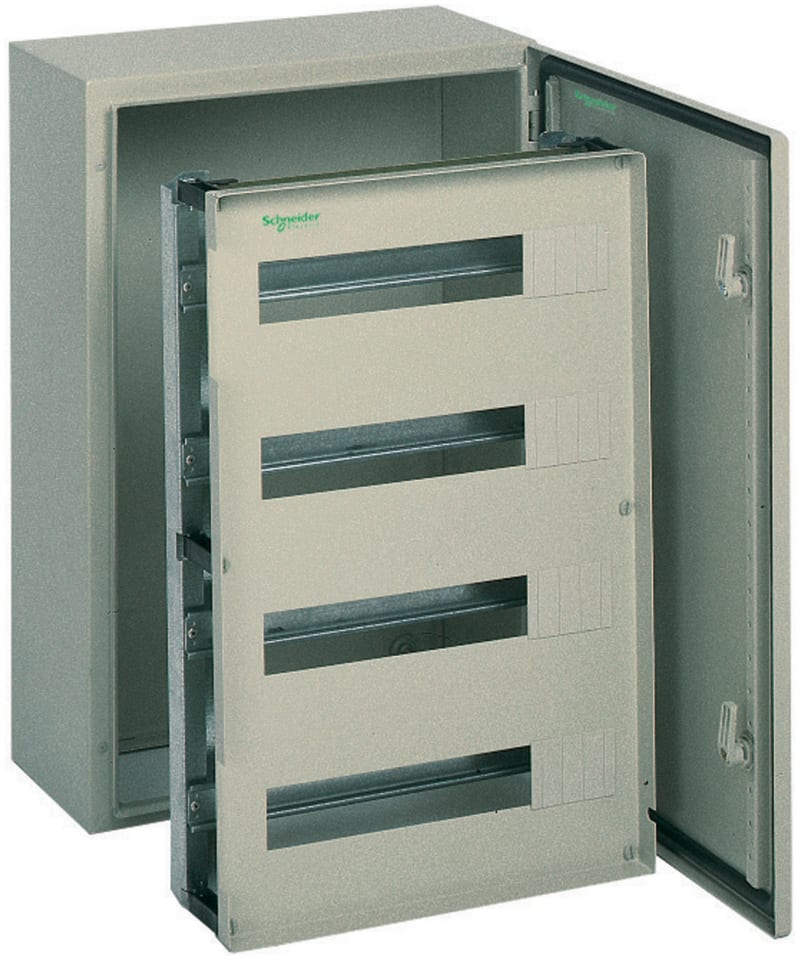

Modular unit 110M 700X500X200

Schneider Electric NSYDLCR110 Modular unit 110M 700X500X200.

Manufacturer part number (MPN)

NSYDLCR110 EAN / GTIN: 3606480162619 Sales unit: pcs Dimensions: 700×500×200 Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Multi-purpose; Modular distribution application Product or component type: Chassis Device short name: DL For enclosure nominal dimensions: - Mounting location: Front of enclosure Range compatibility: PanelSeT CRN Device composition: 1 chassis structure; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 1 front panel; 5 35 mm DIN rail Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 5 Total number of 18 mm modules: 110 Type of front plate: Plain and cut-out plates Number of cut-out: 5 cut-outs Height: 655 mm Width: 455 mm Depth: 110 mm Number of Units in Package 1: 1 Number of Units in Package 2: 50 Warranty (in months): 18 With mounting plate: No Type of covering: With notch With cover: No Number of DIN-rails: 5 Number of modular spacings per DIN-rail: 22 With N-PE clamp: Yes Country of origin: Spain

HS Code

8538.10

• EAN 3606480162619
• SAP 1000317789
• Code 8776777
