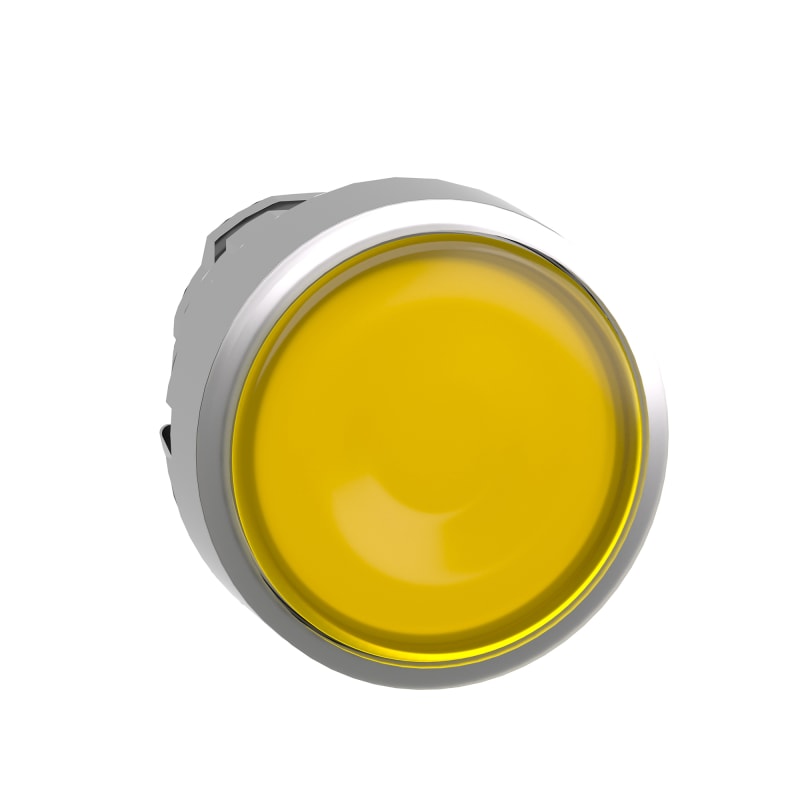

Illuminated Push Button pressure/pressure yellow (ZB4BH083)

Schneider Electric ZB4BH083 Illuminated Push Button in metal with pressure/pressure function in yellow colour for LED.

Manufacturer part number (MPN)

ZB4BH083

EAN / GTIN

3606481206374

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for illuminated push-button

Product compatibility

Universal LED

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

push-push

Operator profile

Yellow flush, unmarked

Cap/operator or lens colour

Yellow

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

30 mm

Product weight

0.026 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

500000 cycles

Electrical composition code

M5 for <2 contacts using single blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-4; UL 508; IEC 60947-5-1; JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-5; JIS C8201-1

Product certifications

CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

150

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Yellow

Suitable for lighting

Yes

Number of command positions

2

Spring-return

No

Labelled

No

Type of button

Flat

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

Width opening

29 mm

Height opening

29 mm

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

Yes

HS Code

8538.90

• EAN 3606481206374
• SAP 1200076281
• Code 81930845
