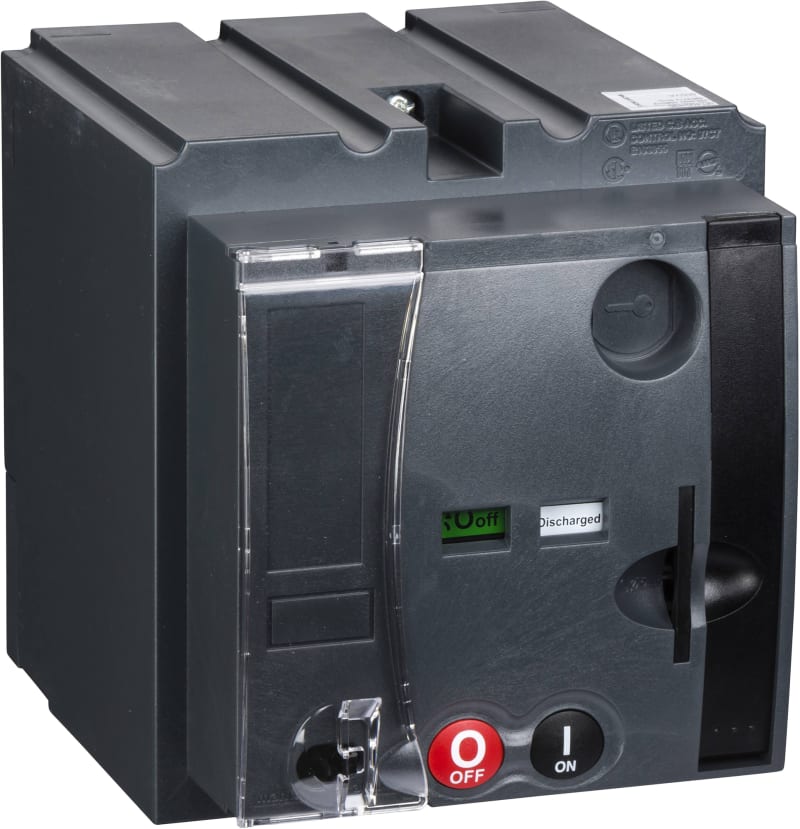

Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 48/60 VDC LV432644
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV432644 Motor mechanism 48-60VDC NSX400/630.
Technical Specifications
- Manufacturer part number (MPN)
- LV432644
- EAN / GTIN
- 3606480020209
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 48-60 V DC
- Device short name
- MT400/630
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX400; ComPacT NSX630; ComPacT NSX400 DC; ComPacT NSX630 DC
- Control type
- Standard
- [Uc] control circuit voltage
- 48...60 V DC
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 400 A; 630 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in W
- 500 W - closing; 500 W - opening
- Locking options description
- Padlocking in OFF position; 1 to 3 padlocks Ø 5 to Ø 8
- Country of origin
- IT
- Warranty (in months)
- 18
- Rated control supply voltage DC
- 48–60 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3606480020209
- SAP 1000092801
- Code 8908005
