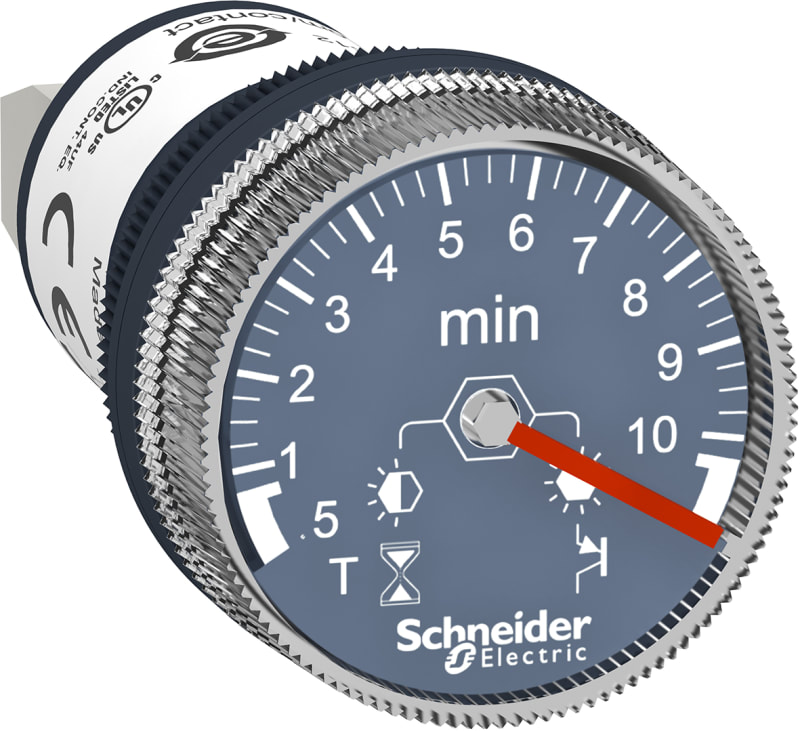

Schneider Electric Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10MIN, 24V DC XB5DTB24

Schneider Electric XB5DTB24 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Time relay for Ø22 mm hole with zinc-plated in and PNP output (0,2A) 0,5-10m 24VDC.

Manufacturer part number (MPN)

XB5DTB24 EAN / GTIN: 3606481205483 HS code: 8536.90 Sales unit: pcs Package quantity: 72 pcs Voltage: 24 V Range of product: Harmony XB5 Product or component type: Timer Sale per indivisible quantity: 1 Bezel material: Plastic Fixing collar material: Plastic Mounting diameter: 22 mm Panel Thickness: 1…6 mm Shape of signaling unit head: Round Time delay range: 0.5...10 min Time delay type: A Repeat accuracy: +/- 0.5 % Setting accuracy of time delay: +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 Temperature drift: +/- 0.05 %/°C Voltage drift: +/- 0.2 %/V Protection type: Reverse polarity protection; Overvoltage protection Pollution degree: 3 conforming to IEC 60664-1 Output type: Open collector PNP Temporary permissible current: 10 A for 0.01 s minimum switching current: 10 mA Voltage drop in closed state: 3 V Nominal rating: 200 mA at 20 °C( derating 1.5 mA per °C) Residual current in open state: 0.1 mA Power consumption in W: 1 W Reset time: 5 ms after time delay on de-energisation; 7 ms during time delay on de-energisation Local signalling: LED green, flashing for timing in progress; LED, steady for no timing in progress and output relay energised [Us] rated supply voltage: 24 V DC Supply voltage limits: 16.8…31.2 V DC Output short-circuit protection: Yes Connections - terminals: Screw terminals 1 x 4 mm² conforming to IEC 60947-1; Screw terminals 1 x 2.5 mm² conforming to IEC 60947-1 IP degree of protection: IP65 front: conforming to IEC 60529; IP20 back: conforming to IEC 60529 Ambient air temperature for operation: -20…60 °C Ambient air temperature for storage: -20…80 °C Tightening torque: 0.5 N.m Dielectric strength: 1500 V conforming to IEC 61812-1 [Ui] rated insulation voltage: 50 V conforming to IEC 60947-1; 50 V conforming to IEC 60664-1 [Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60947-1; 4 kV conforming to IEC 60664-1 Surge withstand: 1 kV, level 2 conforming to IEC 61000-4-5 Overvoltage category: Class 3 conforming to IEC 60536; Class 3 conforming to IEC 60664-1 Vibration resistance: 0.15 mm (f= 10…60 Hz) conforming to IEC 60068-2-6; 2 gn (f= 60…150 Hz) conforming to IEC 60068-2-6 Shock resistance: +/- 15 gn for 11 ms (6 shocks on each axis) conforming to IEC 60068-2-27 Resistance to fast transients: 2 kV class level 3 conforming to IEC 61000-4-4 Electromagnetic compatibility: Electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2; Electromagnetic emission class B conforming to IEC 55011 Resistance to electromagnetic fields: 10 V/m 80 MHz...1 GHz level 3 conforming to IEC 61000-4-3; 3 V/m 1.4...2 GHz level 2 conforming to IEC 61000-4-3; 1 V/m 2...2.7 GHz level 1 conforming to IEC 61000-4-3 Immunity to radioelectric fields: 10 V level 3 conforming to IEC 61000-4-6 Disturbance radiated/conducted: Class B conforming to EN 50022 Standards: UL 508; IEC 61812-1 Product certifications: CE; UL listed Device presentation: Monolithic product Height: 62 mm Width: 29 mm Depth: 29 mm Product weight: 0.027 kg Diameter: 29 mm Warranty (in months): 18

HS Code

8536.90

• EAN 3606481205483
• SAP 1000793506
• Code 81410539
