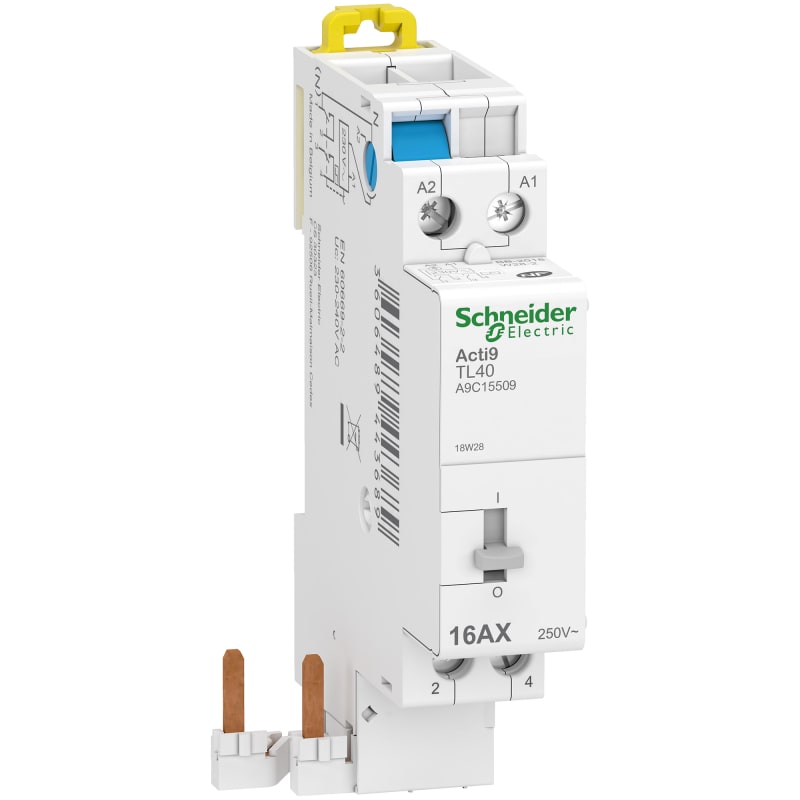

Schneider Electric impulse relay, ACTI9 TL40, 2P, 1NO, 16 A, 230 V AC, 50 Hz A9C15509

Schneider Electric A9C15509 Acti 9 TL40 impulse relay for iC40 25A 2P 230V.

Manufacturer part number (MPN)

A9C15509

EAN / GTIN

3606489443689

Sales unit

pcs

Package quantity

6 pcs

Voltage

230 V

Rated current

16 A

Number of poles

2P

range of product

Acti9

Product name

Acti9 TL40

Product or component type

Impulse relay

Device short name

TL40

Device application

Standard

Poles

2P

Pole contact composition

2 NO

[In] rated current

16 A

Network type

AC

[Uc] control circuit voltage

230 V AC 50 Hz

Network frequency

50 Hz

[Ue] rated operational voltage

250 V AC 50 Hz

[Ui] rated insulation voltage

500 V AC

[Uimp] rated impulse withstand voltage

2.5 kV

Control type

Remote and manual control

Control signal type

Impulse

Switching frequency

5 switching operations/minute

Impulse duration

50 ms

Remote control type

Illuminated push-button 3 mA

Local signalling

ON/OFF indication

Hold-in power consumption in VA

19 VA

mounting mode

Fixed

Mounting support

DIN rail

9 mm pitches

2

Height

87 mm

Width

18 mm

Depth

69 mm

Product weight

105 g

Electrical durability

AC-22: 200000 cycles

Connections - terminals

Power circuit: tunnel type terminals 1 cable(s) 1…4 mm² rigid; Power circuit: tunnel type terminals 2 cable(s) 1…2.5 mm² rigid; Power circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible; Power circuit: tunnel type terminals 2 cable(s) 1…2.5 mm² flexible; Control circuit: tunnel type terminals 1 cable(s) 0.5…1.5 mm² rigid; Control circuit: tunnel type terminals 1 cable(s) 0.5…1.5 mm² flexible; Power circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule; Power circuit: tunnel type terminals 2 cable(s) 1…2.5 mm² flexible with ferrule; Control circuit: tunnel type terminals 1 cable(s) 0.5…1.5 mm² flexible with ferrule

Wire stripping length

9 mm

Tightening torque

1 N.m

Product compatibility

No auxiliary

Standards

IEC 60669-1; IEC 60669-2-2

Quality labels

NF

Noise level

60 dB

IP degree of protection

IP20 conforming to IEC 60529 (on opening); IP40 conforming to IEC 60529 (in enclosure)

Pollution degree

3

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…80 °C

Warranty (in months)

18

Mounting method

DIN rail

Function

Mechanical switch

Built-in depth

50 mm

Width in number of modular spacings

1

Control voltage 1

230 V

Type of control voltage 1

AC

Frequency control voltage 1

50 Hz

Suitable for manual operation

Yes

Voltage type (supply voltage)

AC

Supply voltage

250 V

Rated switch current

16 A

Number of contacts as normally open contact

2

Country of origin

Belgium

HS Code

8536.50
