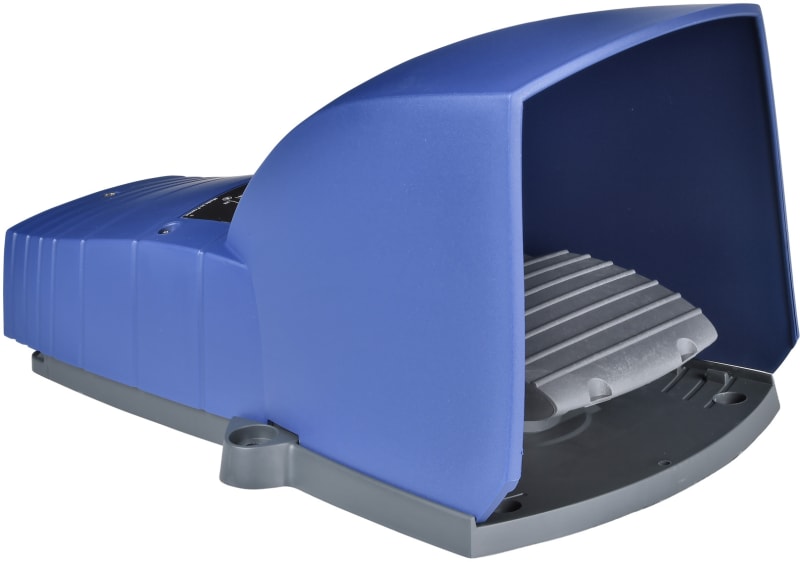

Schneider Electric Preventa XPE, Single foot switch, plastic, blue, with cover, 1 NO + 1 NC XPEB310

Schneider Electric XPEB310 Fotpedal blue with cover 1 NO/NC.

Manufacturer part number (MPN)

XPEB310

EAN / GTIN

3389110164787

Sales unit

pcs

Package quantity

6 pcs

Contact configuration

1 NO / NC

Range of product

Harmony XPE

Product or component type

Foot switch

Material

Plastic

Foot switch type

Single foot switch

Device short name

XPEB

Provided equipment

Cover

Trigger mechanism

Without trigger mechanism

Contact operation

1 step

Contacts type and composition

1 NC + 1 NO

Colour

Blue

Positive opening

With conforming to IEC 60947-5-1 appendix K

Connections - terminals

Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end; Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end

Mechanical durability

10000000 cycles

[Ie] rated operational current

3 A, 240 V, AC-15, A300; 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; 500 V (pollution degree 3) conforming to NF C 20-040 group C; 500 V (pollution degree 3) conforming to VDE 0110 group C; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Maximum resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3; 25 MOhm conforming to NF C 93-050 method A

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1; 10 A cartridge fuse type gG conforming to VDE 0660-200

Rated operational power in W

10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Product weight

0.69 kg

Standards

NF E 09-031

Product certifications

UL; CSA

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140; Class II conforming to NF C 20-030

IP degree of protection

IP66 conforming to IEC 60529

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

24

Country of origin

FR

Warranty (in months)

18

Width

165 mm

Height

74 mm

Depth

282 mm

Number of switch positions

1

Rated operation current Ie at AC-15, 230 V

3 A

Suitable for safety functions

Yes

Type of command

On or off

With protection hood

Yes

With interlocking

No

Degree of protection (IP)

IP66

With protective insulation

No

Switching function latching

No

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

HS Code

8536.50
