Schneider Electric Harmony XAPS Vandal-Resistant Key-Operated Control Station

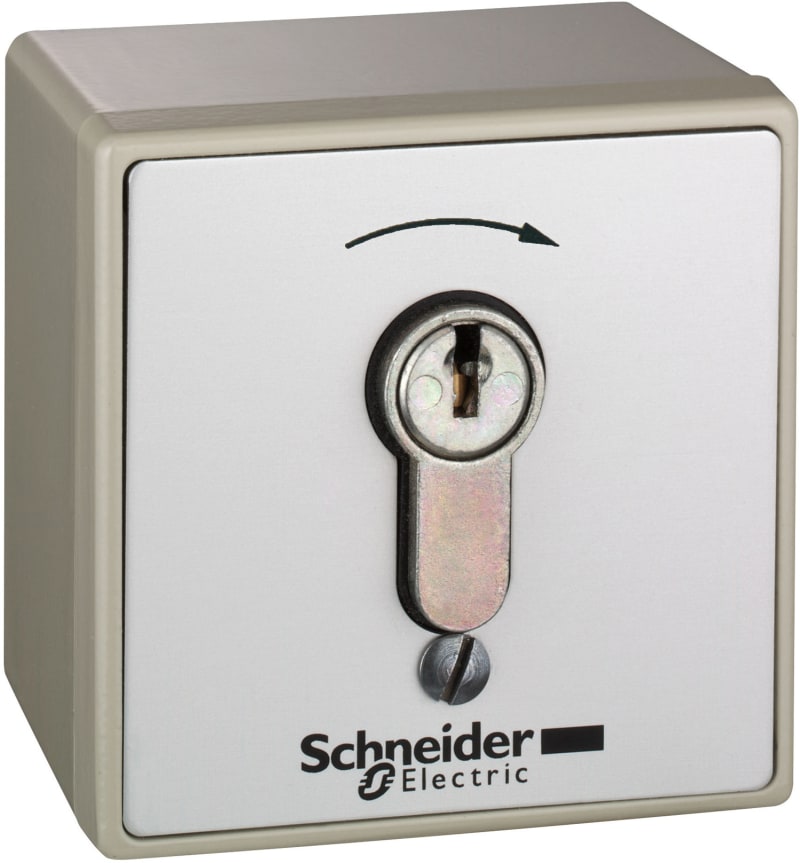

Schneider Electric XAPS11221N is a surface-mounted vandal-resistant control station with a two-position key selector and spring return from right to left, 1 NO contact. Aluminium alloy enclosure suits harsh industrial environments. Screw clamp terminals; supplied in packs of 8.

Manufacturer part number (MPN)

XAPS11221N

EAN / GTIN

3389110838503

Sales unit

pcs

Package quantity

8 pcs

Range of product

Harmony XAPS

Product or component type

Key operated control station

Device short name

XAPS

Product mounting

Surface mounted

Control station composition

1 key selector switch, spring return from right to left 1 NO right arrow marking

Operator position information

2 positions

Key withdrawal position

Left-hand

Contact operation

Slow-break

AC control voltage 50 HZ

120…600 V

Cable entry

1 knock-out for cable entry, clamping capacity: 17 mm; 1 tapped entry for cable gland, clamping capacity: 12 mm

AC control voltage 60 HZ

120…600 V

Product weight

0.83 kg

DC control voltage

125…600 V

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Number of command positions

1

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Maximum resistance across terminals

25 MOhm

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

Number of indicator lights

0

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Compatibility code

XAPS

Number of push buttons

0

Number of selector switches

0

Number of key switches

1

Number of mushroom-shaped push-buttons

0

Emergency power off

No

Number of contacts as normally closed contact

0

Number of contacts as normally open contact

1

Number of contacts as change-over contact

0

Housing material

Metal

Housing colour

Grey

colour of cover

Grey

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP54 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Standards

IEC 60947-5-1

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

CZ

Warranty (in months)

18

Ex-class

None

Colour housing cover

Grey

Degree of protection (IP)

IP54

For Ex-zone gas

None

For Ex-zone dust

None

HS Code

8537.10
