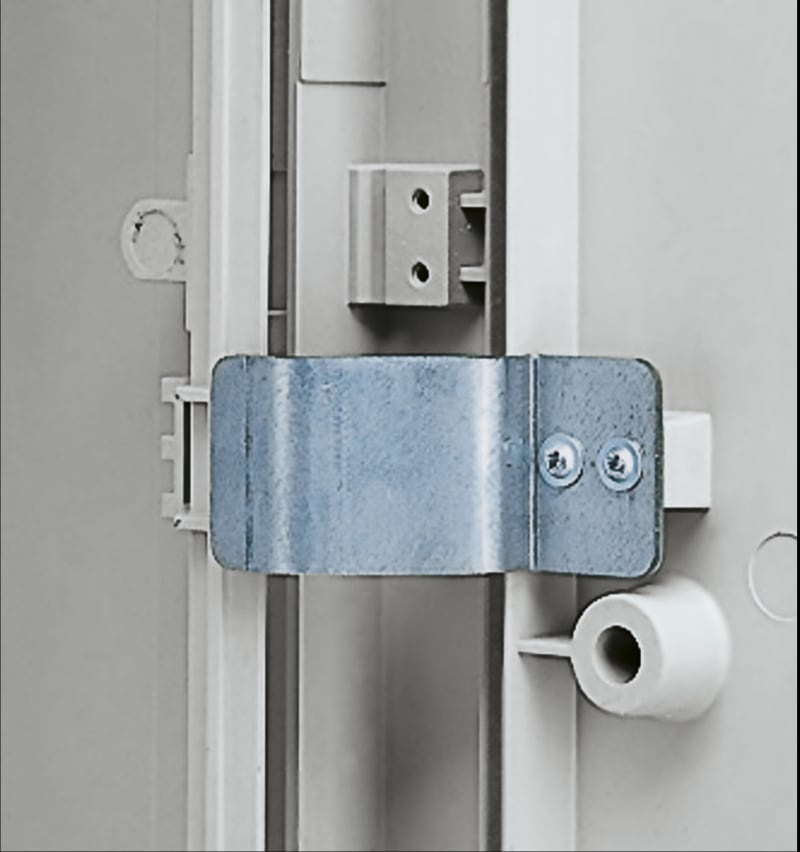

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 500X500X320 IP44 NSYPLAZT553G
Pricing
Request a quote
We reply within 24 hours
Product Description
THLSA REGNT TO.SOK 7035 500X500X320.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZT553G
- EAN / GTIN
- 3606480776236
- Sales unit
- pcs
- IP rating
- IP44
- Dimensions
- 500×500×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZT
- Nominal height
- 500 mm
- Nominal width
- 500 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door; 1 canopy; 1 plinth
- Body type
- Open top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (180 °)
- Lock type
- 2 points handle lock, 5 mm double-bar
- Accessibility for operation
- Front; Rear; Top; Bottom
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 500 mm
- Height
- 500 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 265 N
- Max. permitted load of the door(s) according to IEC 62208
- 69 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776236
- SAP 1000752593
- Code 8488750
Product Documentation
More from Schneider Electric
Schneider Electric
Internal corner Tir+ IH 120/40 HVI
5427070
Schneider Electric
Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 500X750X320 IP65 NSYPLA573G
Schneider Electric
LCD Display M.LOGIC 6 E-M
LV429486
Schneider Electric
Schneider Electric Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3E,≤440V,25A,24V AC coil,50/60Hz,1NO auxiliary contact LC1E2510B7
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 50KA, thermal magnetic multifunction, Everlink terminals GV4PEM50N
Schneider Electric
Schneider Electric thermal overload relays, TeSys Deca, 17...25A, class 10A LRD3322
Schneider Electric
Schneider Electric Vigi C120 - earth leakage add-on block - 3P - 300 mA - class A si A9N18595
Schneider Electric

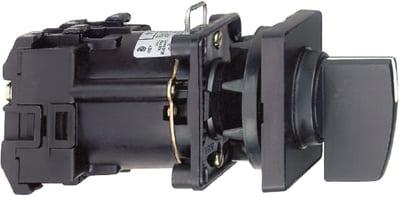

Step Switch 5 Steps 1-Pole Ø22
