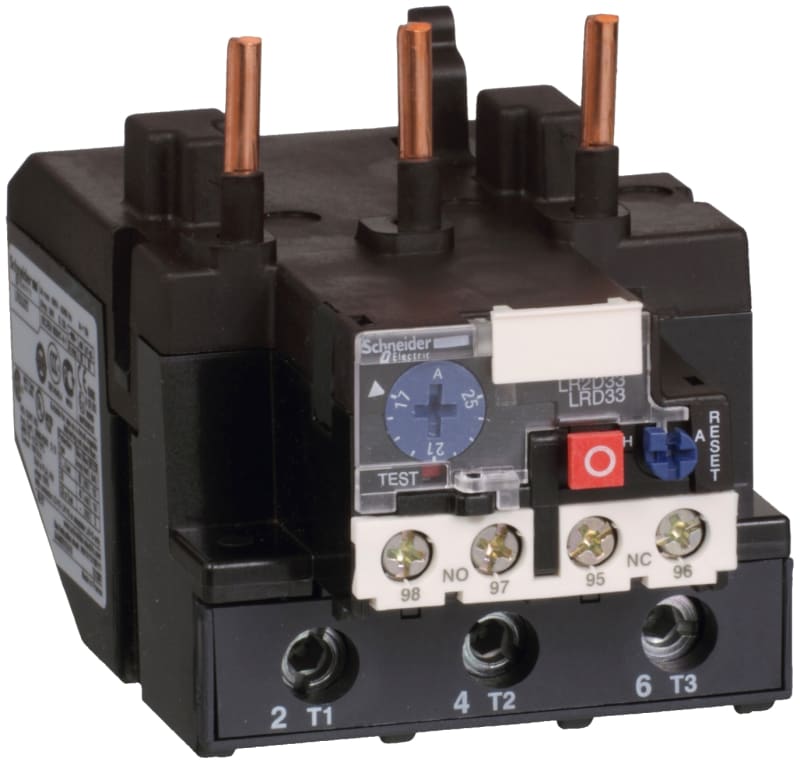

Schneider Electric thermal overload relays, TeSys Deca, 17...25A, class 10A LRD3322

Schneider Electric LRD3322 — TeSys thermal overload relay. Bimetallic thermal overload relay for motor protection. Thermal Relay 17-25A.

Manufacturer part number (MPN)

LRD3322

EAN / GTIN

3389110519822

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Setting range

17-25 A

Range

TeSys

Product name

TeSys LRD; TeSys Deca

Product or component type

Differential thermal overload relay

Device short name

LRD

Relay application

Motor protection

Product compatibility

LC1D80; LC1D95

Network type

DC; AC

Thermal overload class

Class 10A conforming to IEC 60947-4-1

Thermal protection adjustment range

17…25 A

[Ui] rated insulation voltage

Power circuit: 1000 V conforming to IEC 60947-4-1; Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL

Network frequency

0...400 Hz

Mounting support

Plate, with specific accessories; Rail, with specific accessories; Under contactor

Tripping threshold

1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Auxiliary contact composition

1 NO + 1 NC

[Ith] conventional free air thermal current

5 A for signalling circuit

Permissible current

0.72 A at 500 V AC-15 for signalling circuit; 0.06 A at 440 V DC-13 for signalling circuit

[Ue] rated operational voltage

1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Associated fuse rating

4 A gG for signalling circuit; 4 A BS for signalling circuit

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Phase failure sensitivity

Tripping current 130 % of Ir on two phase, the last one at 0

Control type

Red push-button: stop; Blue push-button: reset

Temperature compensation

-20…60 °C

Connections - terminals

Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end; Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end; Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end

Tightening torque

Control circuit: 1.7 N.m - on screw clamp terminals; Power circuit: 9 N.m - on screw clamp terminals

Height

81 mm

Width

70 mm

Depth

115 mm

Product weight

0.51 kg

Climatic withstand

conforming to IACS E10

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…60 °C without derating conforming to IEC 60947-4-1

Ambient air temperature for storage

-60…70 °C

Flame retardance

V1 conforming to UL 94

Mechanical robustness

Vibrations: 6 Gn conforming to IEC 60068-2-6; Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Dielectric strength

2.2 kV at 50 Hz conforming to IEC 60947-1

Standards

EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4; GB/T 14048.5; EN 50495

Product certifications

IEC; UL; CSA; CCC; EAC; ATEX INERIS; UKCA

Warranty (in months)

18
