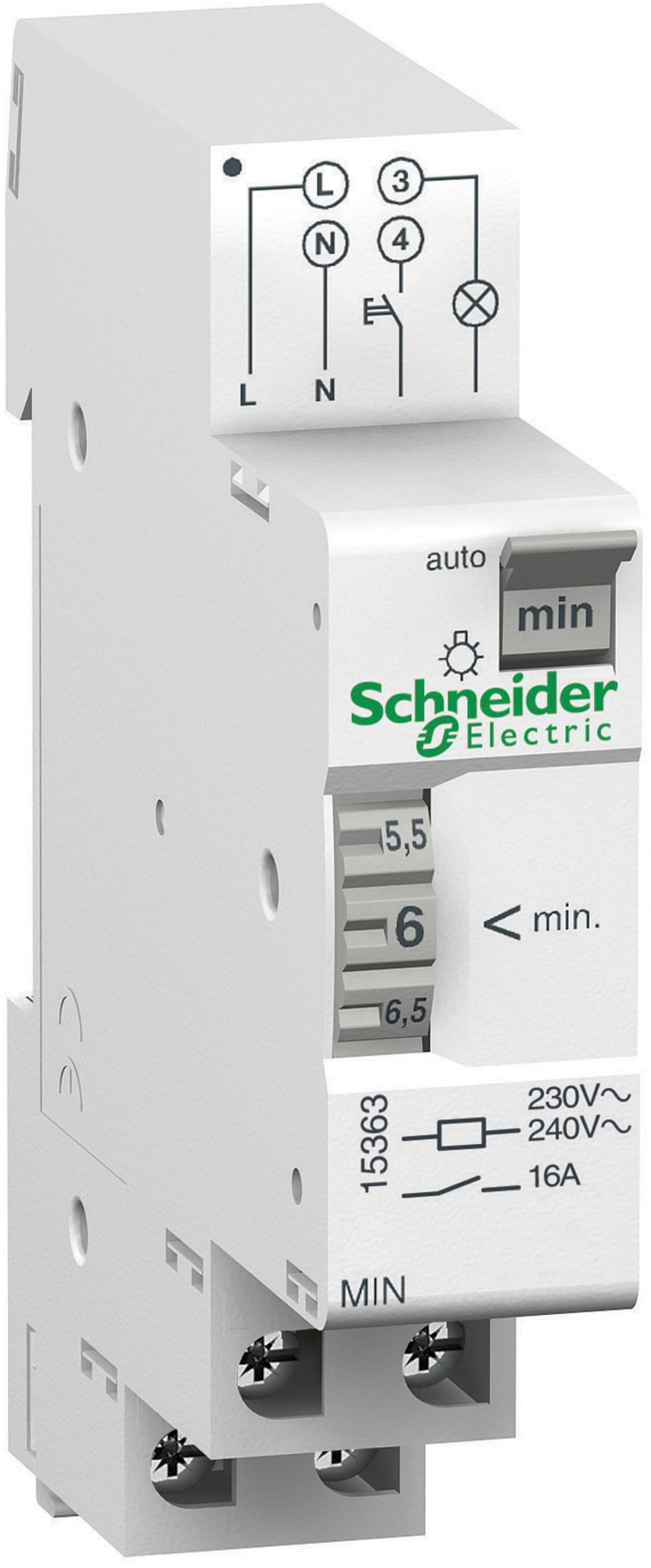

Schneider Electric Multi 9 MIN Staircase Lighting Timer
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 15363 is a MIN staircase lighting timer from the Multi 9 modular range. Release delay adjustable 1 to 7 minutes; 230 V AC supply, 50 Hz. Rated switching current 16 A with a maximum incandescent lamp load of 2300 W. DIN rail mounted, one module wide.
Technical Specifications
- Manufacturer part number (MPN)
- 15363
- EAN / GTIN
- 3303430153634
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting method
- DIN rail
- Built-in depth
- 68 mm
- Release-delay
- 1–7 min
- Width in number of modular spacings
- 1
- Control voltage 1
- 230 V
- Type of control voltage 1
- AC
- Type of control voltage 2
- AC
- Frequency control voltage 1
- 50 Hz
- Wiring system
- 3 and 4 wire configuration
- Pre-warning of switching-off
- None
- Repetitive
- None
- Voltage type (supply voltage)
- AC
- Supply voltage
- 230 V
- Max. switching current (cos phi = 0.6)
- 10 A
- Max. incandescent lamp load
- 2300 W
- Max. load fluorescent lamp
- 2300 VA
- Rated switch current
- 16 A
- Push button glow-lamp current
- 50 mA
- Current surge function selectable
- No
- Number of contacts as normally open contact
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9107.00
Cross References
- EAN 3303430153634
- SAP 1000027605
- Code 8502797
