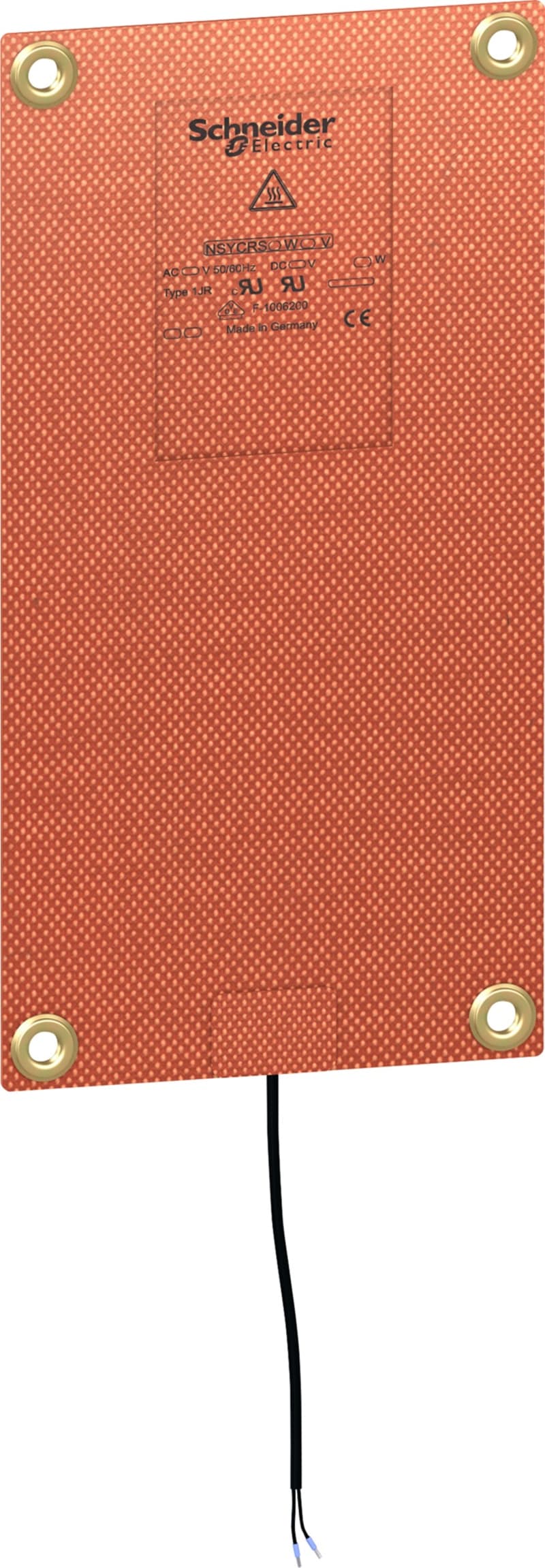

Schneider Electric Climasys Ultra thin resistance heater low starting current 12W 240V 130X250MM NSYCRS10W240V
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCRS10W240V Ultratynn heater 10W 240V.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCRS10W240V
- EAN / GTIN
- 3606480530128
- Sales unit
- pcs
- Voltage
- 240 V
- Power
- 10 W
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Ultra thin resistance heater
- Power range
- 12 W
- Input voltage
- 240 V AC 50/60 Hz
- Electrical connection
- Cable length: 2 m
- Operating position
- Vertical; Horizontal
- Ambient air temperature for operation
- -60…70 °C
- Temperature setting range
- -40…70 °C
- Material
- Silicone rubber
- Height
- External: 110 mm
- Width
- External: 140 mm
- Depth
- External : 1.6 mm
- Device composition
- 6 self-adhesive Velcro pads; 6 plastic spacers; 4 Telequick nuts; 4 clip-on nuts; fixing accessories
- Condition of use
- Electrical protection is needed; Heaters must be installed with a thermal controller; Air sealed enclosure
- fixing mode
- By 4 screws
- Mounting support
- Standard mounting plate; Adhesive Velcro; DIN rail; Telequick mounting plate
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 440
- Country of origin
- MX
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Rated power
- 10 W
- Continuous heating power at 10 °C
- 10 W
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 3606480530128
- SAP 1000336121
- Code 8367499
Product Documentation
