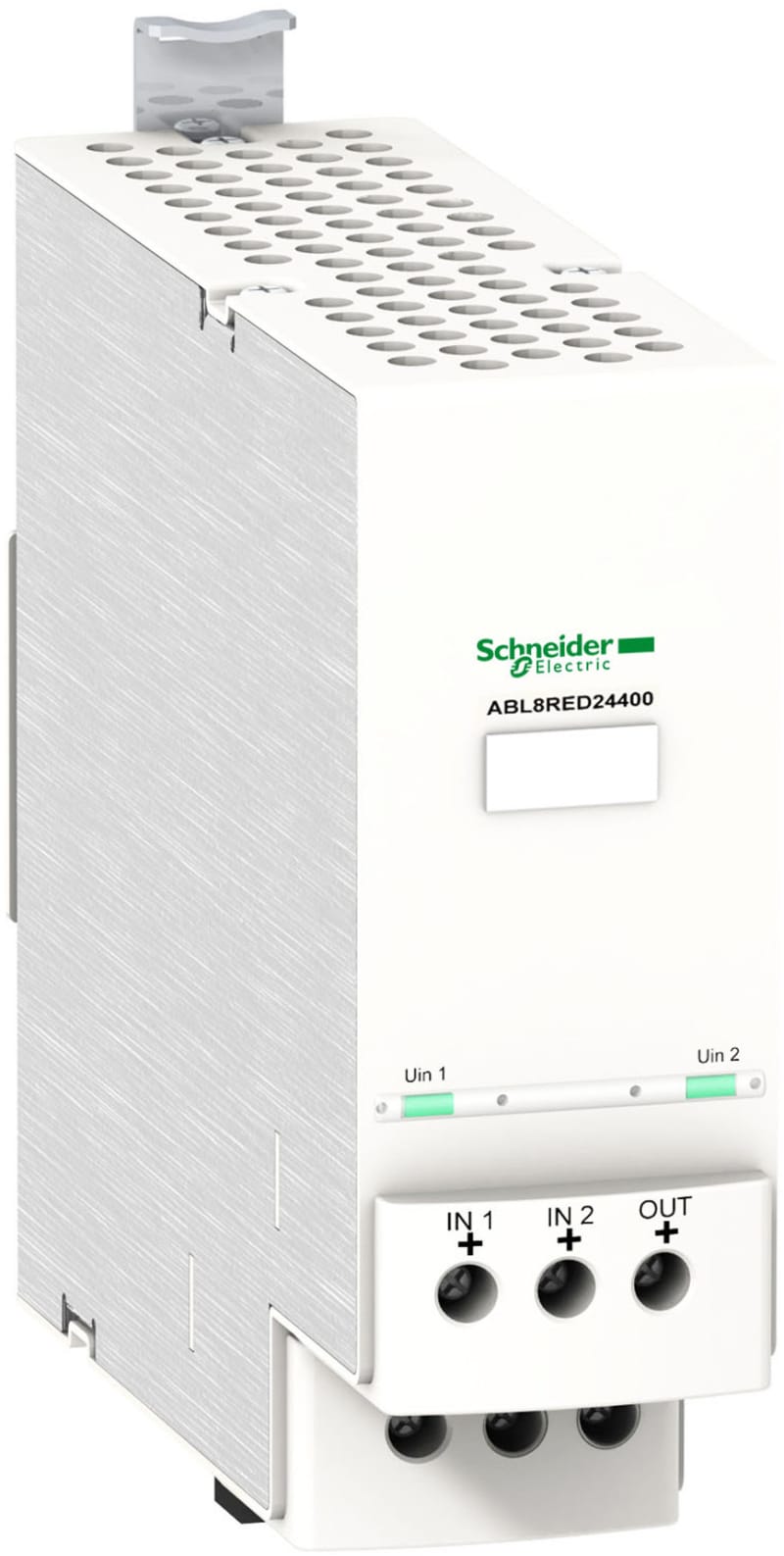

Redundantmodul 40A (ABL8RED24400)

Schneider Electric ABL8RED24400 40 A redundantmodul for redundans on input.

Manufacturer part number (MPN)

ABL8RED24400

EAN / GTIN

3389119406871

Sales unit

pcs

Package quantity

10 pcs

Rated current

40 A

Range of product

Phaseo

Product or component type

Redundancy module

Input voltage

24...28.8 V DC

Output voltage

(Uin-0.2) V DC

Maximum output current

40 A

Input voltage limits

22...30 V

Input current

20 A

Number of output channels

1

Output protection type

Against overload, protection technology: external protection by power supply; Against short-circuits, protection technology: external protection by power supply

Connections - terminals

For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWG; For input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² 20 AWG...8 AWG; For diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² 14 AWG

Fixing mode

By clips on 35 mm symmetrical DIN rail, operating position: horizontal; By clips on 35 mm symmetrical DIN rail, operating position: vertical

Output coupling

Parallel

Operating altitude

2000 m

Marking

CE

Name of test

Electrostatic discharges conforming to IEC 61000-4-2; Emission conforming to IEC 61000-6-3; Induced electromagnetic field conforming to IEC 61000-4-6 level 3; Radiated electromagnetic field conforming to IEC 61000-4-3 level 3; Rapid transient conforming to IEC 61000-4-4 level 3; Surge conforming to IEC 61000-4-5 level 2; Conducted/radiated emissions conforming to EN 55022 class B; Emission conforming to EN 50081-1

Local signalling

1 LED per input (green) for power supply status; 1 relay for power supply status

Product weight

0.7 kg

Product certifications

EAC; RCM

Standards

CSA C22.2 No 60950-1; UL 508

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Environmental characteristic

EMC conforming to IEC 61000-6-3; EMC conforming to IEC 61000-6-2; Safety conforming to IEC 60950-1; Safety conforming to EN/IEC 61204

IP degree of protection

IP20 conforming to IEC 60529

Dielectric strength

500 V between input and ground; 500 V between output and ground

Overvoltage category

Class II conforming to VDE 0106-1

Relative humidity

0…90 % during operation; 0…95 % during storage

MTBF reliability

2488391 H at 24 V DC with UTE C80-810 calculation method

Vibration resistance

2 gn (f= 11.9…150 Hz) conforming to IEC 61131-2; 3.5 mm (f= 3…11.9 Hz) conforming to IEC 61131-2

Number of Units in Package 1

1

Number of Units in Package 2

80

Country of origin

PH

Warranty (in months)

18

Voltage type (supply voltage)

DC

Max. output current 1

40 A

Nominal value output voltage 1

24 V

Nominal value output current 1

40 A

Power output

145 W

Type of electric connection

Screw connection

Wall mounting possible

No

Width

44 mm

Height

146 mm

Depth

140 mm

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Degree of protection (IP)

IP10

HS Code

8538.90
