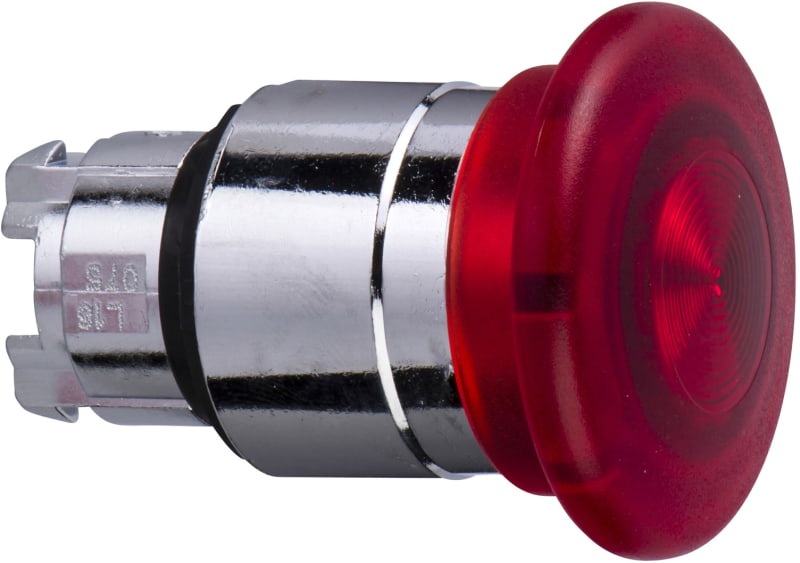

Mushroom-head Button w/Light Impulse Red
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB4BW443 Mushroom-head button with light, impulse, red.
Technical Specifications
- Manufacturer part number (MPN)
- ZB4BW443
- EAN / GTIN
- 3389110666496
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Range of product
- Harmony XB4
- Product or component type
- Head for illuminated push-button
- Device short name
- ZB4
- Product compatibility
- Universal LED
- Bezel material
- Chromium plated metal
- Head type
- Standard
- Mounting diameter
- 22.5 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Red mushroom Ø 40 mm, unmarked
- Cap/operator or lens colour
- Red
- CAD overall width
- 40 mm
- CAD overall height
- 40 mm
- CAD overall depth
- 53 mm
- Product weight
- 0.051 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mechanical durability
- 10000000 cycles
- Electrical composition code
- M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integr
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110666496
- SAP 1000066714
- Code 8554640
Product Documentation
More from Schneider Electric
Schneider Electric

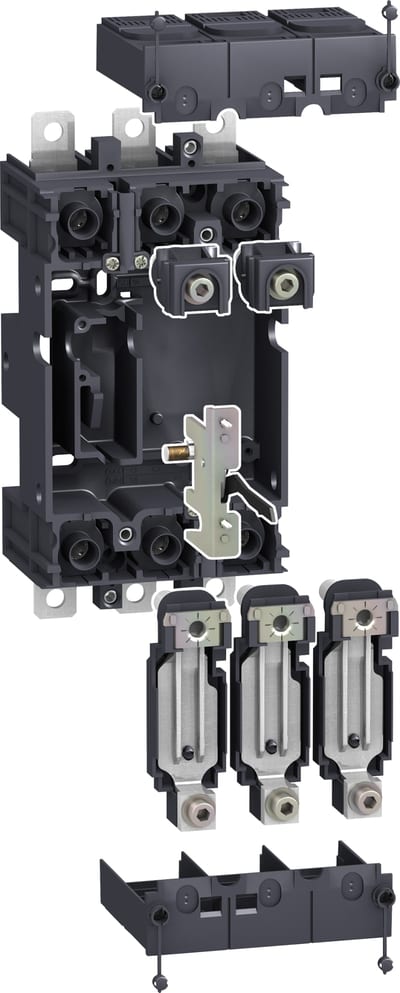

Schneider Electric plug-in kit, ComPact NSX 100/160/250 with Vigi add-on module, 3 poles LV429291
Schneider Electric

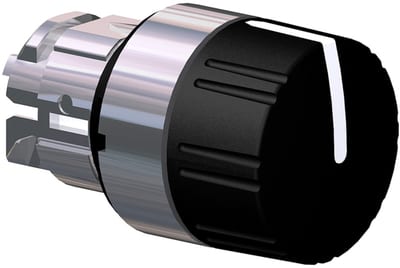

WHEEL-Selector Switch Head 2 Fixed positions
ZB4BD29
Schneider Electric

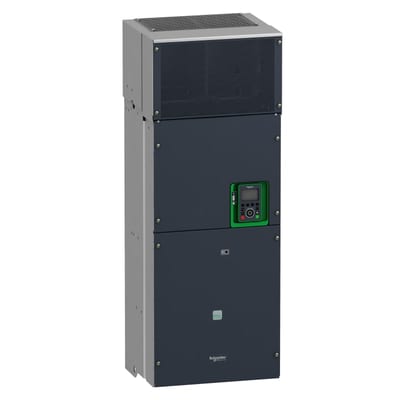

ATV930 IP00 220kW 400V DNV
ATV930C22N4428
Schneider Electric

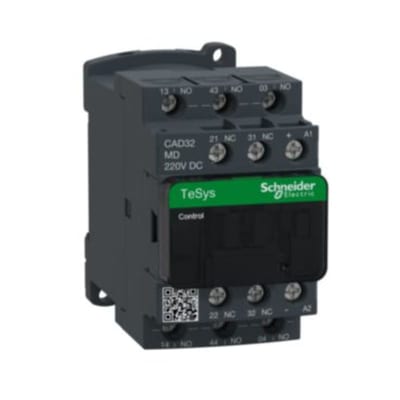

Schneider Electric TeSys D control relay - 3 NO + 2 NC - <= 690 V - 220 V DC standard coil CAD32MD
Schneider Electric

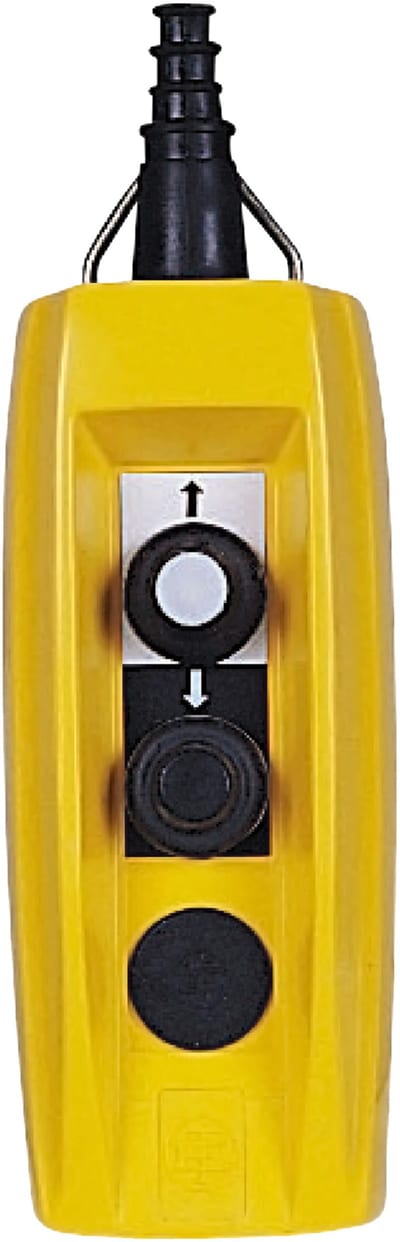

Schneider Electric XACB219 Harmony XAC Pendant Control Station 2 Pushbuttons 12 A
Schneider Electric

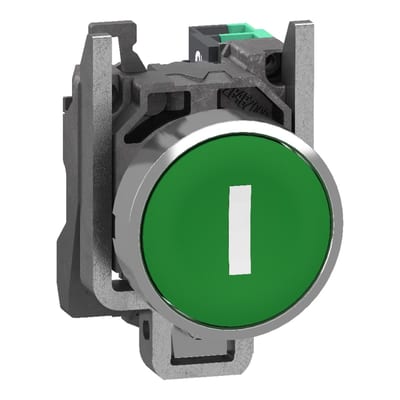

Schneider Electric Push button, Harmony XB4, metal, flush, green, 22mm, spring return, white marked I, 1 NO, compact push in terminals XB4BA33115
Schneider Electric

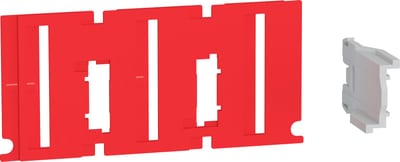

Safety Shutters FOR MTZ1 NSX 3P
LV833765SP
Schneider Electric

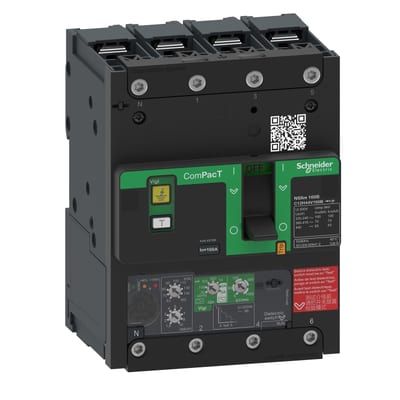

Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 4 poles, MicroLogic 4.1 trip unit 25A, lugs/busbars C11B44V025B
