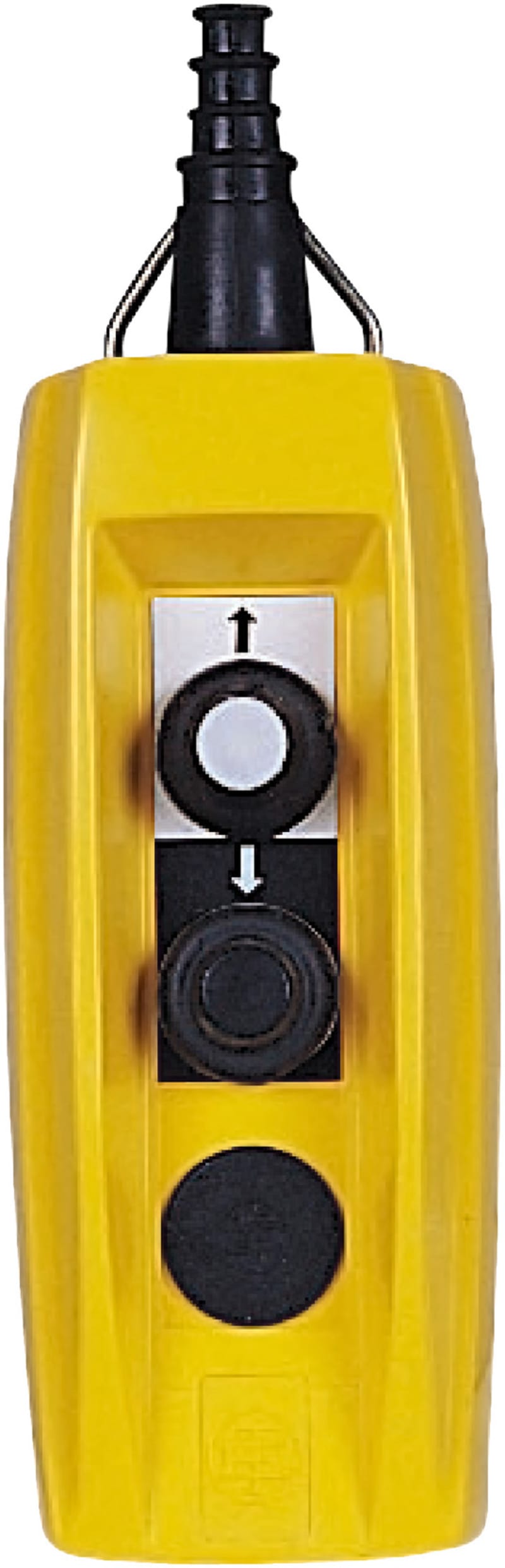

Schneider Electric XACB219 Harmony XAC Pendant Control Station 2 Pushbuttons 12 A

Schneider Electric XACB219 is a Harmony XAC pendant control station in yellow glass-reinforced polyester with two two-pole pushbuttons for single-speed hoist raise/lower operation. Rated for 2 kW power circuits at 12 A conventional enclosed thermal current with mechanical interlocking between the pair. Cable entry accepts 7 to 13 mm rubber sleeves. Ingress protection is IP65 per IEC 60529 with CSA type 4 certification.

Manufacturer part number (MPN)

XACB219

EAN / GTIN

3389110636154

Sales unit

pcs

Package quantity

6 pcs

Power

2 kW

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACB

Control station type

Double insulated

Enclosure material

Glass reinforced polyester

Electrical circuit type

Power circuit

enclosure type

Complete ready for use

Control station application

Control of single speed hoist motor

Control station composition

2 push-buttons

Control button type

First push-button 2-pole raise, slow; Second push-button 2-pole lower, slow

Product compatibility

XESD1191 for reversing operation

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60204-32

Product certifications

CSA type 4

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 7…13 mm

[Ithe] conventional enclosed thermal current

12 A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; 600 V conforming to CSA

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Snap action

Operating force

17 N push-button

Short-circuit protection

10 A fuse protection by cartridge fuse type aM

Rated power in hp

2 hp at 240 V, CSA certified; 3 hp at 600 V, CSA certified; 5 hp at 400 V, CSA certified

Rated operational power in W

2200 W AC-3 at 240 V conforming to IEC 60947-3 appendix A; 2200 W AC-3 at 400 V conforming to IEC 60947-3 appendix A; 2200 W AC-4 at 240 V conforming to IEC 60947-3 appendix A; 2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A

Electrical durability

300000 cycles AC-3, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 300000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 300000 cycles AC-4, 2200 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 300000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 500000 cycles AC-3, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 500000 cycles AC-4, 1500 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 800000 cycles AC-3, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 800000 cycles AC-4, 1500 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

Terminals description ISO n°1

(43-44)NO; (23-24)NO; (13-14)NO; (33-34)NO

Terminal identifier

(13-14)NO; (11-12)NC

Product weight

0.355 kg

Number of Units in Package 1

1

Number of Units in Package 2

6

Warranty (in months)

18

Width

85 mm

Height

265 mm

Depth

74.5 mm

Number of command positions

2

Colour housing cover

Yellow

Suitable for emergency stop

No

Housing material

Plastic

Number of speeds

1

Degree of protection (IP)

IP65

Country of origin

Czechia

HS Code

8537.10
