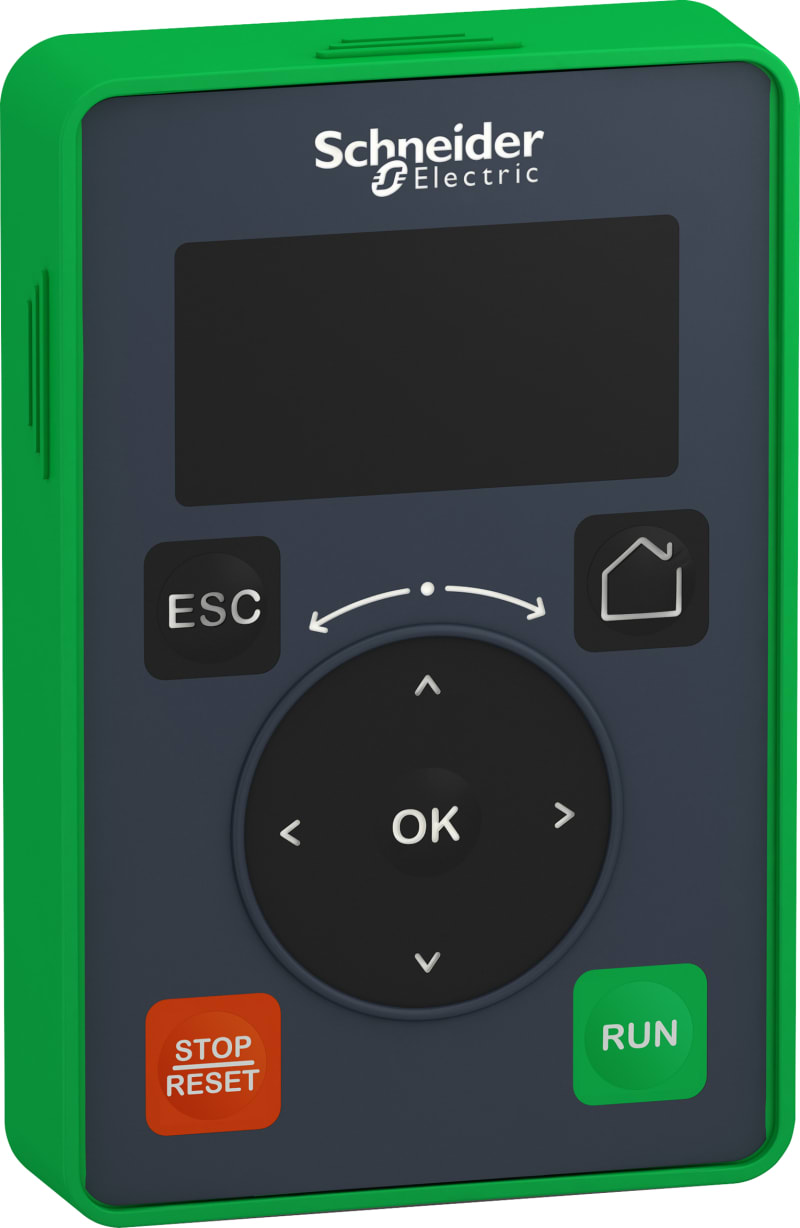

Schneider Electric VW3A1113 Plain Text Display Terminal 128 x 64 px IP21
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A1113 is a plain text display terminal for the Altivar Machine ATV340 and Easy Altivar 610 drives, ordered separately from the drive. The backlit LCD offers 128 x 64 pixel resolution across two message lines with menus in French, German, English, Spanish, Italian and Chinese. It supports drive control, adjustment, configuration display and saving or downloading configurations, and carries IP21 protection for panel-front mounting.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A1113
- EAN / GTIN
- 3606480702228
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range of product
- Altivar
- Range compatibility
- Easy Altivar 610; Altivar Machine ATV340
- Accessory / separate part category
- Display and signalling accessories
- Accessory / separate part type
- Display terminal
- Accessory / separate part destination
- Variable speed drive
- Product specific application
- To control, adjust and configure the drive; To display the current values; To save and download configurations
- IP degree of protection
- IP21
- User language
- French; German; English; Spanish; Italian; Chinese
- Realtime clock
- Without
- Display type
- Backlit LCD screen white
- Messages display capacity
- 2 lines
- Pixel resolution
- 128 x 64
- Product weight
- 0.05 kg
- Ambient air temperature for operation
- -15…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 45
- Country of origin
- ID
- Warranty (in months)
- 18
- Type of accessory/spare part
- Control panel
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480702228
- SAP 1200023311
- Code 81454617
