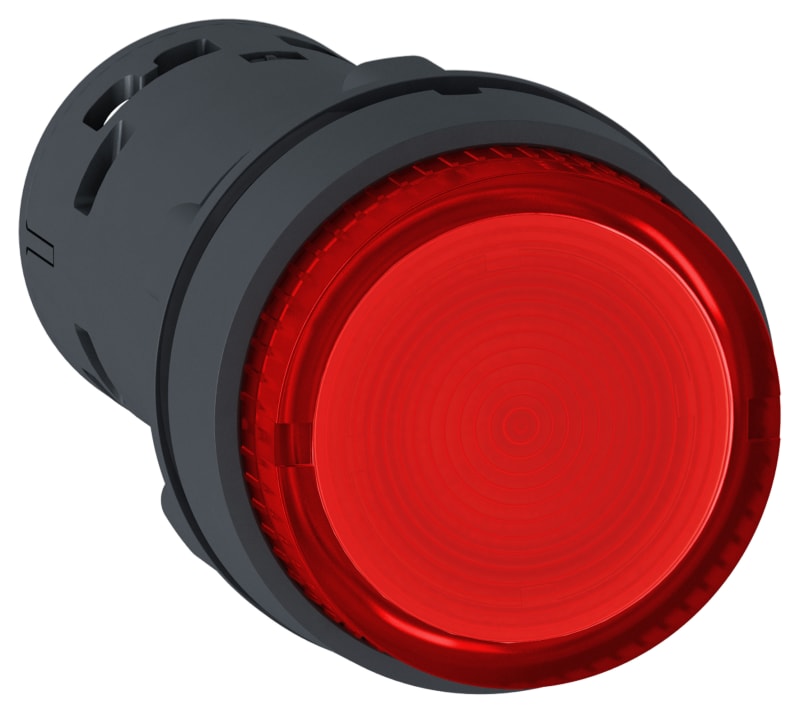

Schneider Electric Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230V AC, 1NC XB7NW34M2

Schneider Electric XB7NW34M2 Illuminated Push Button LED spring return NC - Red.

Manufacturer part number (MPN)

XB7NW34M2

EAN / GTIN

3606480470844

Sales unit

pcs

Package quantity

10 pcs

Contact configuration

NC

Range of product

Harmony XB7

Product or component type

Illuminated push-button

Device short name

XB7

Mounting diameter

22 mm

Sale per indivisible quantity

10

IP degree of protection

IP20 (rear face) conforming to IEC 60529; IP65 (front face) conforming to IEC 60529

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Red projecting, unmarked

Operator additional information

With plain lens

Contacts type and composition

1 NC

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1

Light source

LED

Bulb base

Integral LED

[Us] rated supply voltage

230 V AC at 50/60 Hz

Device presentation

Monolithic product

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

57.5 mm

Terminals description ISO n°1

(11-12)NC

Product weight

0.023 kg

Device mounting

Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1

Fixing center

>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm

Fixing mode

Fixing nut beneath head: 2…2.4 N.m

Contact operation

Slow-break

Positive opening

With conforming to IEC 60947-5-1 appendix K

Mechanical durability

300000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with JIS No 1 screwdriver; Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Short-circuit protection

4 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1; 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1; 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ <= 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4

Signalling type

Steady

Supply voltage limits

195…264 V AC

Current consumption

22...27 mA

Service life

70000 h at rated voltage and 25 °C

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

Enclosure Type

UL type 12

Standards

CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-1; UL 508; JIS C8201-1

Product certifications

GOST; CCC

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration

Electromagnetic emission

Class B conforming to IEC 55011

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/green

Suitable for lighting

Yes

Number of command positions

1

Spring-return

Yes

Type of button

High

Colour front ring

Black

Type of electric connection

Screw connection

Degree of protection (IP)

IP54

Material front ring

Plastic

With front ring

Yes

Transparent

Yes

Construction type lens

Round

Supply voltage lamp

230 V

Switching function latching

No

Number of contacts as normally closed contact

1

Country of origin

Indonesia

HS Code

8536.50
