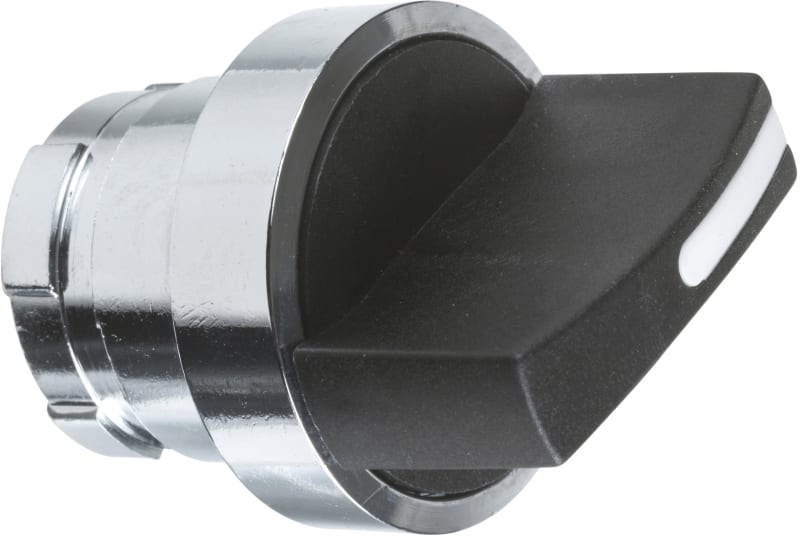

Selector Switch.Short GREP.BLACK F/KZ127

Schneider Electric KAXZ1M12 Selector switch.short grip.black f/KZ127.

Manufacturer part number (MPN)

KAXZ1M12

EAN / GTIN

3389110980752

Sales unit

pcs

Package quantity

90 pcs

Range of product

Harmony Series K

Product or component type

Cam switch operating head

Component name

KAX

Product compatibility

Front mounting bodies 12 and 20 A by Ø 22 mm hole

Cam switch head type

With bezel Ø 28.5 mm, metal

Type of operator

Black standard handle

Rotary handle padlocking

Without

Presentation of legend

With matt black legend

Mechanical durability

1000000 cycles

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

25 mm

Product weight

0.04 kg

Compatibility code

KAX

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

IP degree of protection

IP65 conforming to IEC 529; IP65 conforming to NF C 20-010

Number of Units in Package 1

1

Number of Units in Package 2

90

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP65/IP67

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Wing knob

Colour control element

Black

Switching function latching

No

HS Code

8538.90

• EAN 3389110980752
• SAP 1000030272
• Code 8270461
