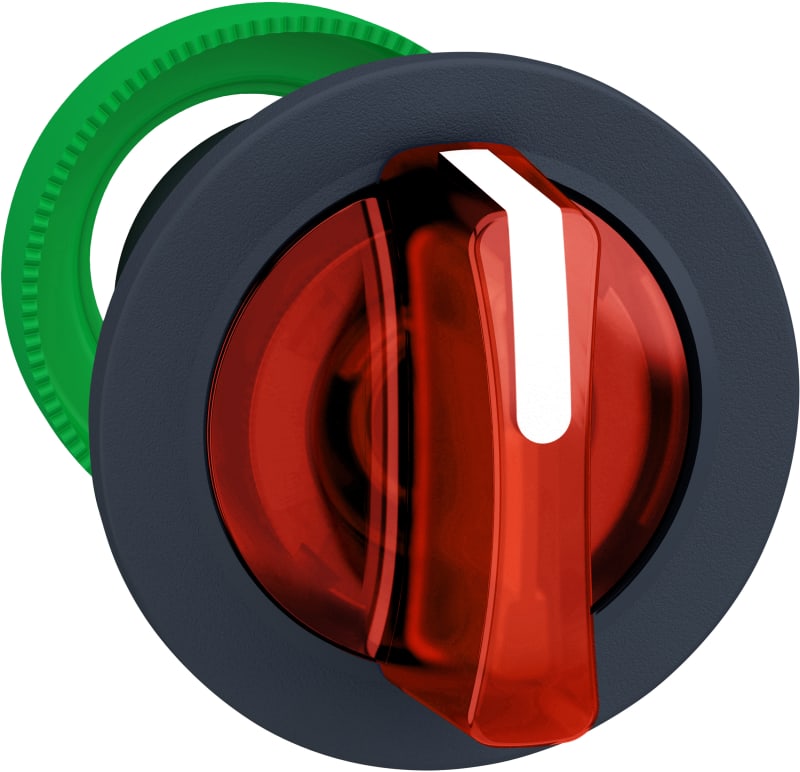

Selector switch flush for LED 3 pos red (ZB5FK1543)

Schneider Electric ZB5FK1543 Selector Switch Head flush in plastic for LED with 3 pos. and spring return for M in red colour.

Manufacturer part number (MPN)

ZB5FK1543

EAN / GTIN

3606481340351

Sales unit

pcs

Range of product

Harmony XB5

Product or component type

Head for illuminated selector switch

Product compatibility

Universal LED

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

30.5 mm

Head type

Built-in-flush

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

To centre spring return

Operator profile

Red standard handle

Operator position information

3 positions +/- 45°

CAD overall width

37 mm

CAD overall height

37 mm

CAD overall depth

46 mm

Product weight

0.03 kg

Mechanical durability

500000 cycles

Electrical composition code

M3 for <4 contacts using single blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; MF1 for <2 contacts using single blocks in front mounting with integral LED; M4 for <4 contacts using single and double blocks in front mounting with integral LED

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

EN/IEC 60947-5-4; EN/IEC 60947-1; EN/IEC 60947-5-1; JIS C8201-5-1; CSA C22.2 No 14; EN/IEC 60947-5-5; UL 508; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.45 cm

Package 1 Width

4.3 cm

Package 1 Length

5.2 cm

Package 1 Weight

22.0 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

31 mm

Number of switch positions

3

Suitable for lighting

Yes

Spring-return

Yes

Colour front ring

Grey

Degree of protection (IP), front side

IP66

Width opening

37 mm

Height opening

37 mm

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Colour indicator light cap

Red

Colour control element

Red

Switching function latching

No

HS Code

8538.90

• EAN 3606481340351
• SAP 1200094548
• Code 81957752
