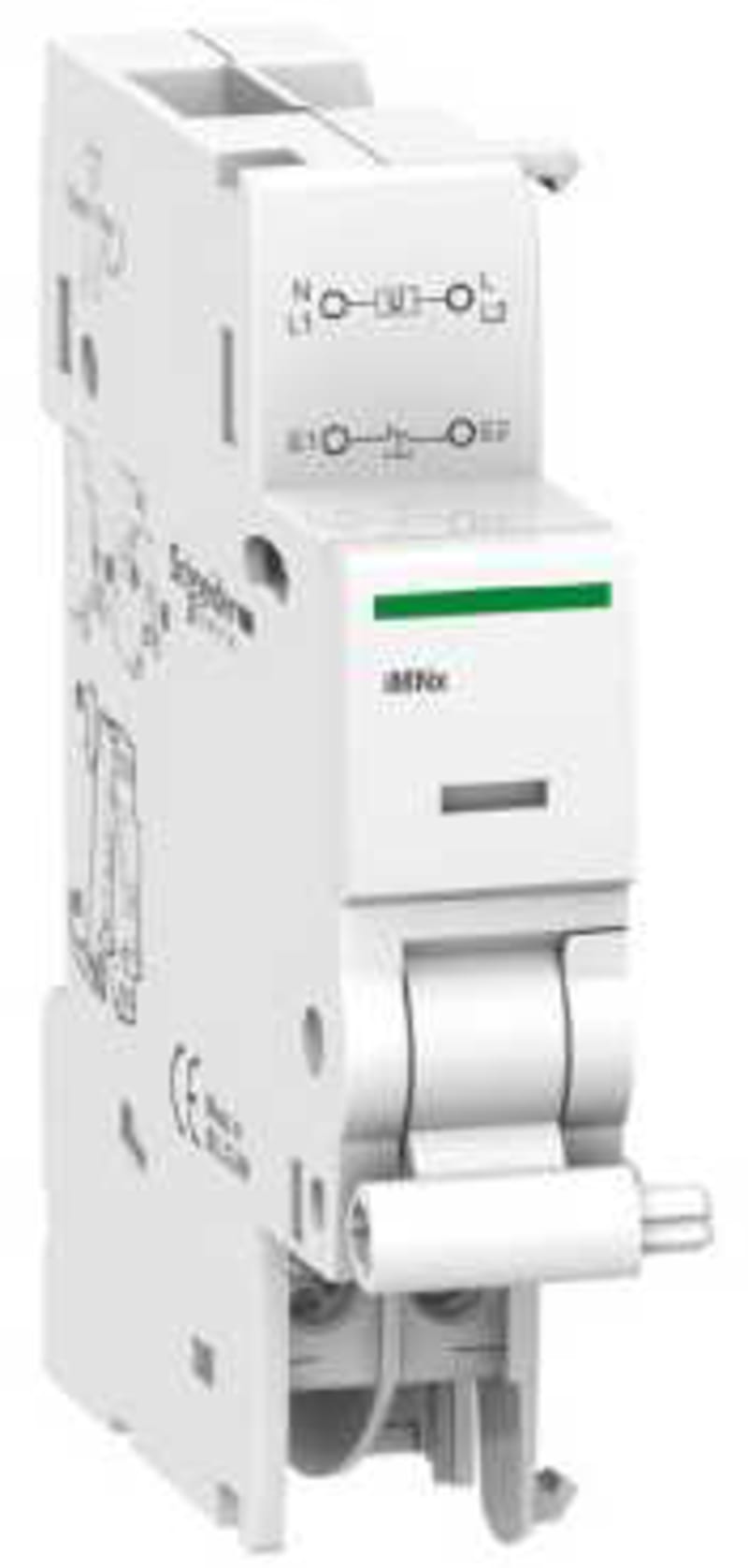

Schneider Electric undervoltage release, ACTI9, iMNx, voltage release, 220...240 V AC A9A26969

Schneider Electric A9A26969 Undervoltage.coil iMNx 230VAC.

Manufacturer part number (MPN)

A9A26969

EAN / GTIN

3606480088025

Sales unit

pcs

Package quantity

72 pcs

Voltage

230 V AC

range of product

Acti9

Product or component type

Undervoltage release

Device short name

iMNx

[Uc] control circuit voltage

220...240 V AC 50/60 Hz

Control type

With external feeding

9 mm pitches

2

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO

Local signalling

Action indicator

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top: YES

Width

18 mm

Colour

White

Connections - terminals

Clamp terminal - 1 cable(s) 11 mm² - rigid; Clamp terminal - 2 cable(s) 2.1 mm² - rigid; Clamp terminal - 1 cable(s) 9 mm² - flexible; Clamp terminal - 2 cable(s) 2.1 mm² - flexible with cable end

Tightening torque

1 N.m

Standards

EN/IEC 60947-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Function

Under voltage coil

Voltage type

AC

Rated voltage

240 V

Installed at the factory

No

Width in number of modular spacings

1

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Under voltage coil

Voltage type for actuating

AC

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

Country of origin

Belgium

HS Code

8536.30

• EAN 3606480088025
• SAP 1000326894
• Code 8355807
