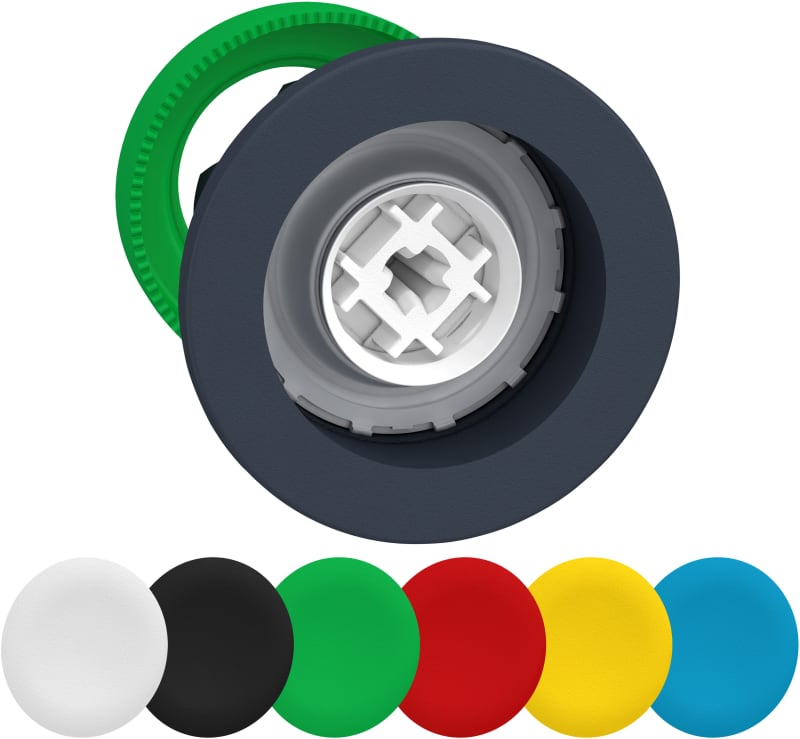

Schneider Electric flush mounted pushbutton head with set of 6 colored standard cap ZB5FA9

Schneider Electric ZB5FA9 Push-Button Head flush in plastic with spring return and 6 caps in forskellige colours.

Manufacturer part number (MPN)

ZB5FA9 EAN / GTIN: 3606481339171 Sales unit: pcs Range of product: Harmony XB5 Product or component type: Head for non-illuminated push-button Device short name: ZB5 Product compatibility: ZBYF...; ZBZF32; ZBZF33; ZB5AZ Bezel material: Dark grey plastic Mounting diameter: 30.5 mm Head type: Built-in-flush Sale per indivisible quantity: 1 Shape of signaling unit head: Round Type of operator: spring return Operator profile: 6 colors choice flush, unmarked Operator additional information: With set of 6 color cap CAD overall width: 37 mm CAD overall height: 37 mm CAD overall depth: 30 mm Product weight: 0.03 kg Mechanical durability: 10000000 cycles Electrical composition code: C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting Protective treatment: TH Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -40…70 °C Overvoltage category: Class II conforming to IEC 60536 IP degree of protection: IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50 E; Type 12 conforming to UL 50 E; Type 4 conforming to UL 50 E; Type 4X conforming to UL 50 E Resistance to high pressure washer: 7000000 Pa at 55 °C, distance : 0.1 m IK degree of protection: IK03 conforming to IEC 50102 Standards: CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; JIS C8201-5-1; IEC 60947-1; UL 508; JIS C8201-1; ISO 21702; ISO 22196:2011 Product certifications: CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 Vibration resistance: 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 4.400 cm Package 1 Width: 5.300 cm Package 1 Length: 9.100 cm Package 1 Weight: 36.000 g Country of origin: FR Warranty (in months): 18 Hole diameter: 31 mm Colour button: Set with several colours Suitable for lighting: No Number of command positions: 1 Spring-return: Yes Labelled: Yes Type of button: Flat Colour front ring: Grey Degree of protection (IP), front side: IP66 Width opening: 37 mm Height opening: 37 mm With protective cover: No material front ring: Plastic With front ring: Yes Construction type lens: Round Switching function latching: No

HS Code

8538.90

• EAN 3606481339171
• SAP 1200094614
• Code 81957743
