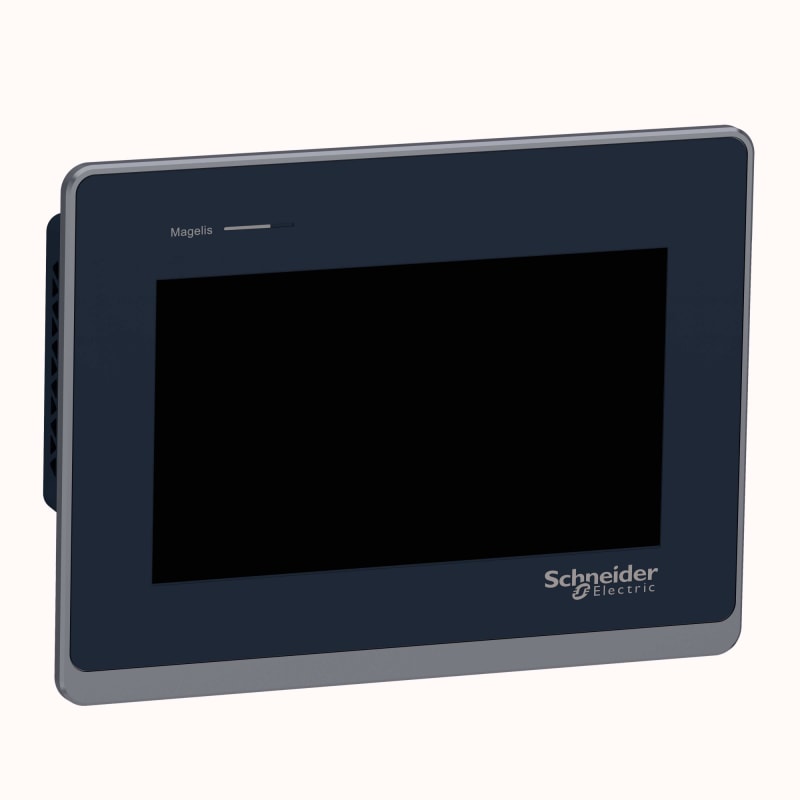

Schneider Electric Touch panel screen, Harmony ST6, 7"W display, 2COM, 2ETHERNET, USB host&device, 24 VDC HMIST6400

Schneider Electric HMIST6400 7W standard operator terminal.

Manufacturer part number (MPN)

HMIST6400

EAN / GTIN

3606489523381

Sales unit

pcs

Package quantity

6 pcs

Power

7 W

Range of product

Harmony ST6

Product or component type

Touch panel screen

Processor name

ARM Cortex-A8

Memory description

1 GB device memory; 128 MB user data memory; 512 KB backup memory

Display size

7 inch

Display type

Colour TFT LCD

Display colour

16 million colours

Display resolution

800 x 480 pixels WVGA

Touch panel

Single touch analogue resistive

Backlight lifespan

50000 hours with white

Brightness

16 levels

Character font

ASCII; ASCII (European characters); Chinese (simplified Chinese); Japanese (ANK, Kanji); Katakana; Korean; Taiwanese (traditional Chinese)

[Us] rated supply voltage

24 V DC (+/- 20 %)

Power consumption in W

9 W

Inrush current

30 A

Local signalling

Status LED green, steady for offline; Status LED green, steady for operating; Status LED green, flashing for operating; Status LED green, faded for stand-by; Status LED orange, flashing for software starting up; Status LED red, steady for power supply (ON); Status LED red, flashing for operating; Status LED red, off for power supply (OFF)

Number of pages

200 application pages

Port Ethernet

10/100BASE

Integrated connection type

1 COM1 serial link - 1 SUB-D 9-pin female - RS232C (rate: 2400...115200 bps)bottom; 1 COM2 serial link - female RJ45 - RS485 (rate: 2400...115200 bps)back; COM2 serial link (rate: 2400...187500 bps)back; 1 USB 2.0 type Abottom; 1 USB 2.0 type micro B; 2 Ethernet

Supply

External supply

Realtime clock

Built-in 0...50 °C; Built-in 10...90 % PURE WHITE

Downloadable protocols

Modbus; Uni-TE; Third party protocols

Product brand

Schneider Electric Modicon; Mitsubishi Melsec; Omron Sysmac; Rockwell Automation Allen-Bradley; Siemens Simatic

Fixing mode

By 4 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201; By 4 screws conforming to IEC 61131-2; By 4 screws conforming to IEC 61000-6-2

Enclosure material

PC

Front material

Aluminium

Marking

CE

Cut-out dimensions

190 x 135 mm panel cut dimension

Height

153 mm

Width

208 mm

Depth

45 mm

Product weight

0.8 kg

Immunity to microbreaks

5 ms

Standards

IEC 61000-6-4; IEC 61000-6-2; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201

Product certifications

CSA; CE; UKCA

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Ambient air temperature for operation

0…50 °C

Ambient air temperature for storage

-20…60 °C

Relative humidity

10…90 % non-condensing

Operating altitude

2000 m

IP degree of protection

IP20 (rear panel) conforming to IEC 61131-2; IP65 (front panel) conforming to IEC 61131-2

NEMA degree of protection

NEMA 4 front panel (indoor use); NEMA 13 front panel (in enclosure)

Shock resistance

147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2

Vibration resistance

+/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz)

Electromagnetic compatibility

Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test - test level: 1 kV (signal ports); Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3; Electrostatic discharge immunity test - test level: 8 kV (air discharge)

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

CN

Warranty (in months)

18

Power consumption

9 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

2

With SW interfaces

Yes

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Type of display

TFT

Colour display

Yes

Number of colours of the display

16000000

Number of grey-scales/blue-scales of display

16

Screen diagonal

7 inch

Number of pixels, horizontal

800

Number of pixels, vertical

480

Usable project memory/user memory

1000 kByte

With numeric keyboard

No

With alpha numeric keyboard

No

Touch technology

Resistive touch

With touch screen

Yes

With message indication

Yes

With message system (incl. buffer and confirmation)

No

Process value representation (output) possible

Yes

Process default value (input) possible

Yes

With recipes

Yes

With printer output

Yes

Additional software components, loadable

Yes

Degree of protection (IP), front side

IP67

Suitable for rail mounting

No

HS Code

8537.10

• EAN 3606489523381
• SAP 1200301618
• Code 82310014
