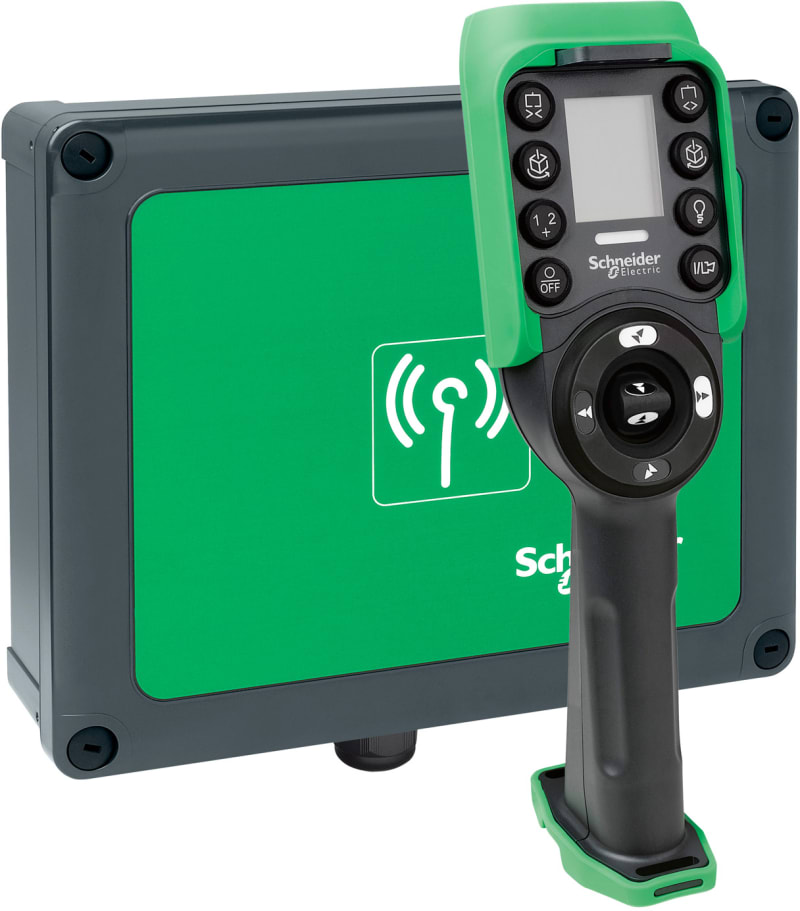

Schneider Harmony eXLhoist XARS12D18W Wireless Crane Remote and Base
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XARS12D18W is a Harmony eXLhoist wireless control station kit for crane and hoist applications, comprising a ZART12D remote and ZARB18W base station. Bluetooth Low Energy at 2.4 GHz gives 100 m operating range across 50 channels. Safety functions reach SIL 3 / PL e for emergency stop and SIL 2 / PL d for stop, per IEC 62061 and ISO 13849-1. Typical applications include overhead cranes, material-handling systems and hoisting equipment.
Technical Specifications
- Manufacturer part number (MPN)
- XARS12D18W
- EAN / GTIN
- 3606480610332
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range of product
- Harmony eXLhoist
- Product or component type
- Control station
- Device short name
- XARS
- Control station type
- Wireless
- Product specific application
- Material handling; Hoisting applications
- Number of channels
- 50
- Control station application
- Stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061; Stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1; Emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061; Emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1; Motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061; Motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1; Limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061; Limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1
- Kit composition
- Remote control; Base station
- Operating distance
- 100 m in free air
- cable entry
- Cable gland
- Communication network type
- Wireless: bluetooth low energy
- Transmission frequency
- 2.4 GHz
- Radio agreement
- FCC; ANATEL; ARIB; SRRC; ICASA; RSS
- Relative humidity
- 0…95 % at -20…45 °C storage
- Electromagnetic compatibility
- Resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2; Resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2; Resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
- Standards
- IEC 60204-1 safety; ISO 13849-1 safety; IEC 62061 safety; IEC 61508 safety; ISO 13850 safety; IEC 60204-32 hoisting applications; ETSI EN 301 489-1 radio; ETSI EN 301 489-3 radio; ETSI EN 301 489-17 radio; ETSI EN 300 440-2 radio; ETSI EN 300 328 radio; FCC part 15 radio; RSS GEN issue 3 radio; RSS 210 issue 8 radio; ARIB STD-T81 radio
- Product certifications
- CE; UL; CSA; C-Tick; JIS; KC; EAC
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 20.0 cm
- Package 1 Width
- 28.5 cm
- Package 1 Length
- 31.0 cm
- Package 1 Weight
- 2.522 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 2
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 40.0 cm
- Package 2 Length
- 60.0 cm
- Package 2 Weight
- 5.905 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 8
- Package 3 Height
- 75.0 cm
- Package 3 Width
- 60.0 cm
- Package 3 Length
- 80.0 cm
- Package 3 Weight
- 32.12 kg
- Country of origin
- FR
- Warranty (in months)
- 18
Cross References
- EAN 3606480610332
- SAP 1000648320
- Code 8441728
