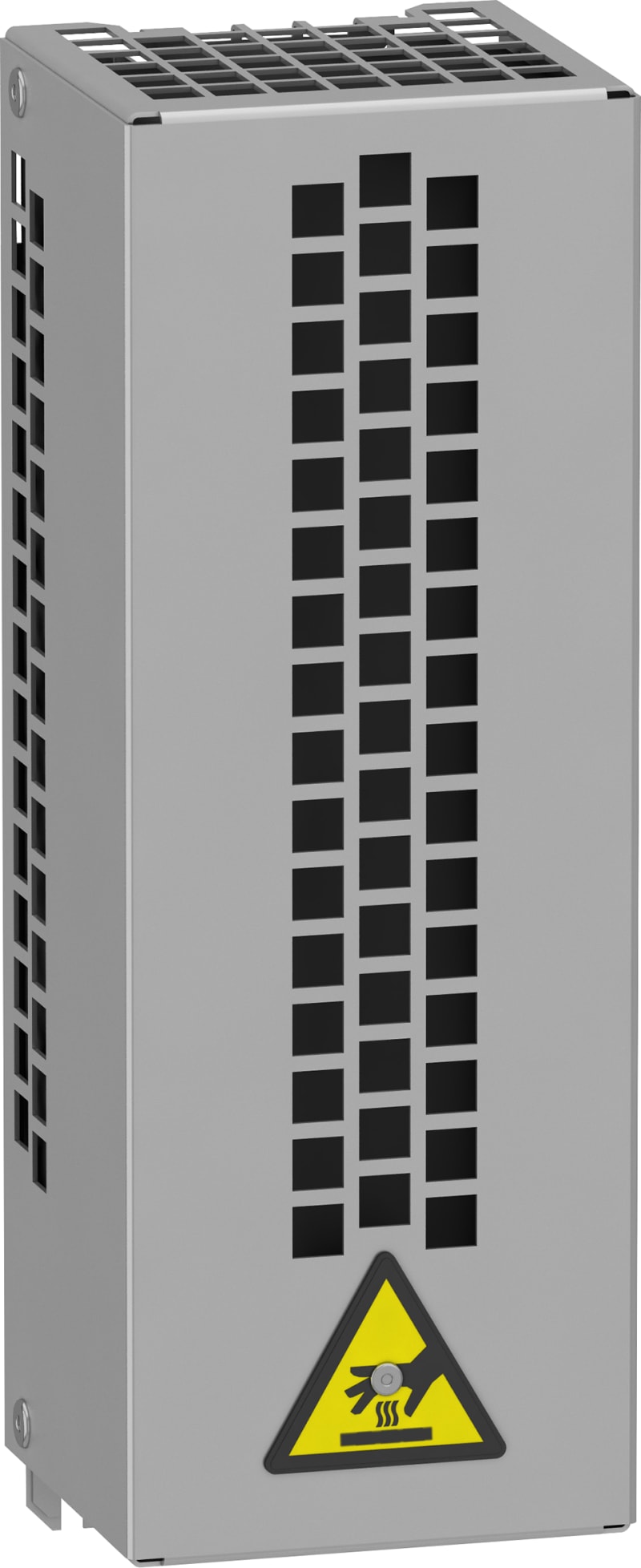

Schneider Electric braking resistor - 100 ohms - 0.1 kW - IP20 VW3A7730
Part numberVW3A7730EAN / GTIN3606480802249HS code8533.29
Drives & Controllers
Drive Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7730 Braking resistor 100 ohms 0,1kW IP20.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7730
- EAN / GTIN
- 3606480802249
- Sales unit
- pcs
- Power
- 0.1 kW
- Resistance
- 100 Ω
- Range of product
- Altivar
- Range compatibility
- Altivar Process ATV900; Altivar Machine ATV340; Altivar Machine ATV320; Easy Altivar 310; Easy Altivar 310L
- Product or component type
- Braking resistor
- Ohmic value
- 100 Ohm
- Product compatibility
- Variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle; Variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle; Variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle; Variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle; Variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle; Variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle; Variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle; Variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle; Variable speed drive ATV340 0.75 kW 380...480 V light cycle; Variable speed drive ATV340 1.5 kW 380...480 V light cycle; Variable speed drive ATV340 2.2 kW 380...480 V light cycle; Variable speed drive ATV340 3 kW 380...480 V light cycle; Variable speed drive ATV340 0.75 kW 380...480 V medium cycle; Variable speed drive ATV320 0.18 kW 200...240 V; Variable speed drive ATV320 0.37 kW 200...240 V; Variable speed drive ATV320 0.37 kW 380...480 V; Variable speed drive ATV320 0.55 kW 380...480 V; Variable speed drive ATV320 0.75 kW 380...480 V; Variable speed drive ATV320 1.1 kW 380...480 V; Variable speed drive ATV320 1.5 kW 380...480 V; Variable speed drive ATV320 2.2 kW 380...480 V; Variable speed drive ATV320 3 kW 380...480 V; Variable speed drive ATV310 1.5 kW; Variable speed drive ATV310 2.2 kW; Variable speed drive ATV310 3 kW; Variable speed drive ATV310 4 kW; Variable speed drive ATV930 2.2 kW 500...690 V light cycle; Variable speed drive ATV930 3 kW 500...690 V light cycle; Variable speed drive ATV930 4 kW 500...690 V light cycle; Variable speed drive ATV930 5.5 kW 500...690 V light cycle; Variable speed drive ATV930 3 hp 600 V light cycle; Variable speed drive ATV930 5 hp 600 V light cycle; Variable speed drive ATV930 7.5 hp 600 V light cycle; Variable speed drive ATV930 2.2 kW 500...690 V medium cycle; Variable speed drive ATV930 3 kW 500...690 V medium cycle; Variable speed drive ATV930 3 hp 600 V medium cycle; Variable speed drive ATV320 0.75 kW 525...600 V; Variable speed drive ATV320 1.5 kW 525...600 V; Variable speed drive ATV320 2.2 kW 525...600 V; Variable speed drive ATV320 4 kW 525...600 V; Variable speed drive ATV310L 0.75 kW; Variable speed drive ATV310L 1.5 kW; Variable speed drive ATV310L 2.2 kW; Variable speed drive ATV310L 3.0 kW; Variable speed drive ATV310L 4.0 kW; Variable speed drive ATV310L 5.5 kW
- Duty cycle
- Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle ; Light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle ; Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ; Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
- Average power available
- 0.1 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 10 mm² / 8 AWG for drive
- Protection type
- Thermal protection via drive
- Width
- 105 mm
- Height
- 295 mm
- Depth
- 100 mm
- Product weight
- 1.5 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 33
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3606480802249
- SAP 1200020030
- Code 81392420
