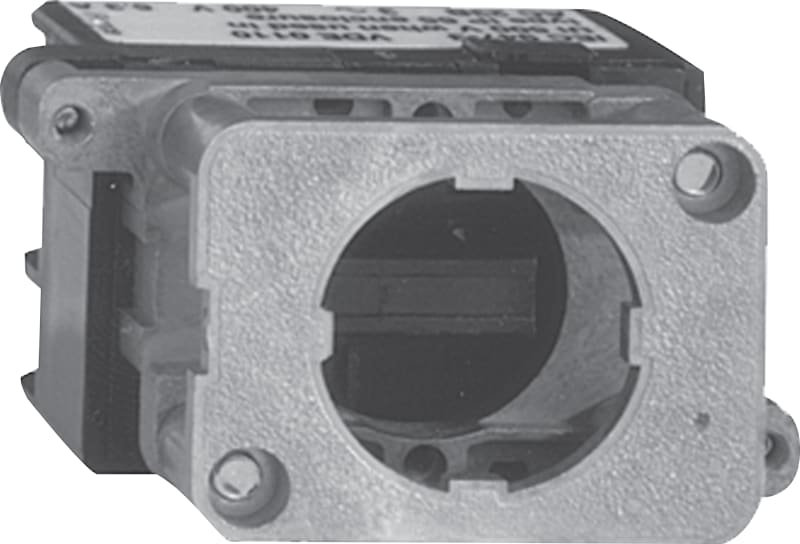

Kont for XACB 3XNC 3kW front

Schneider Electric XACS499 Kont for XACB 3xNC 3kW front.

Manufacturer part number (MPN)

XACS499

EAN / GTIN

3389110471229

Sales unit

pcs

Package quantity

50 pcs

Power

3 kW

Range of product

Harmony XAC

Product or component type

Isolating block

Component name

XACS

Electrical circuit type

Power circuit

Contact block application

Emergency stop push-button

Contact block type

Single

Product compatibility

XACB

Contacts type and composition

3 NC

Mounting of block

Front mounting

Contact operation

Snap action

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Vertical fixing centres

30 mm

Mechanical durability

1000000 cycles

Contact code designation

A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

[Ui] rated insulation voltage

400 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Rated operational power in W

3000 W AC-23B at 400 V

Product weight

0.1 kg

Standards

IEC 60947-3; IEC 60947-3; CSA C22.2 No 14

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class II conforming to IEC 61140

Number of Units in Package 1

1

Number of Units in Package 2

50

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.50

• EAN 3389110471229
• SAP 1000260234
• Code 8239868
