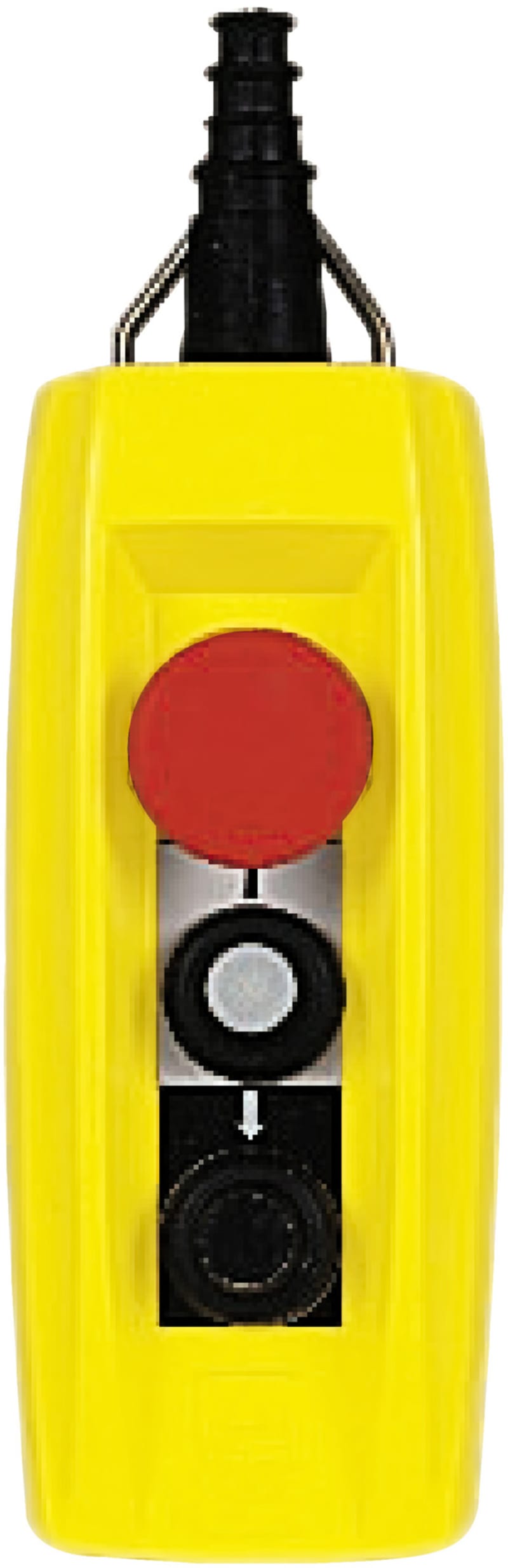

Schneider Electric Harmony XAC Pendant Station, 2 Buttons + E-Stop, 3 kW

The Schneider Electric XACB3201 is a Harmony XAC suspended pendant control station rated 3 kW for control of a single-speed hoist motor. It combines two three-pole raise/lower push-buttons with mechanical interlocking and a Ø40 mm three-pole normally-closed stop push-button in a double-insulated glass-reinforced polyester enclosure at IP65. Typical applications include workshop and warehouse hoists, cranes, and material-handling installations where a robust operator control is required.

Manufacturer part number (MPN)

XACB3201

EAN / GTIN

3389110470758

Sales unit

pcs

Package quantity

15 pcs

Power

3 kW

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACB

Control station type

Double insulated

Enclosure material

Glass reinforced polyester

Electrical circuit type

Power circuit

enclosure type

Complete ready for use

Control station application

Control of single speed hoist motor

Control station composition

2 push-buttons + 1 emergency stop

Control button type

Stop push-button Ø 40 mm 3 NC latching; First push-button 3-pole raise, slow; Second push-button 3-pole lower, slow

Product compatibility

XESD2201 for reversing operation; XACS499 for emergency stop

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

IEC 60204-32; CSA C22.2 No 14; IEC 60947-5-1

Product certifications

CSA type 4

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 10…22 mm

[Ithe] conventional enclosed thermal current

20 A

[Ui] rated insulation voltage

Emergency stop contact: 400 V (pollution degree 3) conforming to IEC 60947-1; 300 V conforming to CSA

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Snap action

Operating force

32 N push-button; 40 N emergency stop

Short-circuit protection

12 A fuse protection by cartridge fuse type aM

Rated power in hp

3 hp at 240 V

Rated operational power in W

3000 W at 240 V; 3000 W at 400 V

Electrical durability

1000000 cycles AC-3, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 1000000 cycles AC-4, 3000 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 700000 cycles AC-3, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 700000 cycles AC-4, 3000 W at 240 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

Terminals description ISO n°1

(13-14)NO; (33-34)NO; (53-54)NO; (73-74)NO; (63-64)NO; (23-24)NO

Terminals description ISO n°2

(31-32)NC; (21-22)NC; (11-12)NC

Terminal identifier

(13-14)NO; (11-12)NC

Product weight

1 kg

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

CZ

Warranty (in months)

18

Width

80 mm

Height

380 mm

Depth

90 mm

Number of command positions

2

Colour housing cover

Yellow

Suitable for emergency stop

Yes

Housing material

Plastic

Number of speeds

1

Type of executable motions

Transport - hoist

Degree of protection (IP)

IP65

HS Code

8537.10
