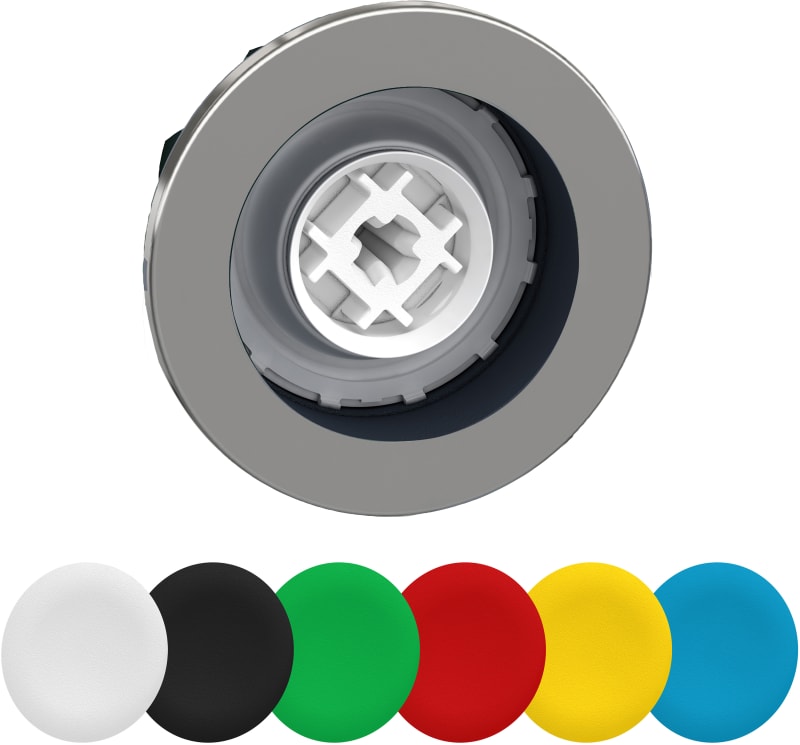

Push-button flush with 6 caps

Schneider Electric ZB4FA9 Push-Button Head flush with spring return and 6 caps in forskellige colours.

Manufacturer part number (MPN)

ZB4FA9 EAN / GTIN: 3606489581206 Sales unit: pcs Package quantity: 5 pcs Range of product: Harmony XB4 Product or component type: Head for non-illuminated push-button Device short name: ZB4F Bezel material: Chromium plated metal Mounting diameter: 30.5 mm Sale per indivisible quantity: 1 Head type: Built-in-flush Shape of signaling unit head: Round Type of operator: spring return Operator profile: 6 colours choice flush, unmarked Cap/operator or lens colour: 6 colors choice CAD overall width: 36.6 mm CAD overall height: 36.6 mm CAD overall depth: 31 mm Mechanical durability: 10000000 cycles Electrical composition code: C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting Device presentation: Basic element Protective treatment: TH Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -40…70 °C Overvoltage category: Class I conforming to IEC 60536 IP degree of protection: IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E IK degree of protection: IK06 conforming to IEC 50102 Standards: CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1 Product certifications: UL listed; CSA; CCC; EAC Vibration resistance: 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 Number of Units in Package 1: 1 Number of Units in Package 2: 40 Country of origin: FR Warranty (in months): 18 Hole diameter: 30.5 mm Colour button: Set with several colours Suitable for lighting: No Number of command positions: 1 Spring-return: Yes Labelled: No Type of button: Flat Colour front ring: Chrome Degree of protection (IP), front side: IP66 With protective cover: No material front ring: Metal With front ring: Yes Construction type lens: Round Switching function latching: No

HS Code

8538.90

• EAN 3606489581206
• SAP 1200223770
• Code 82176843
