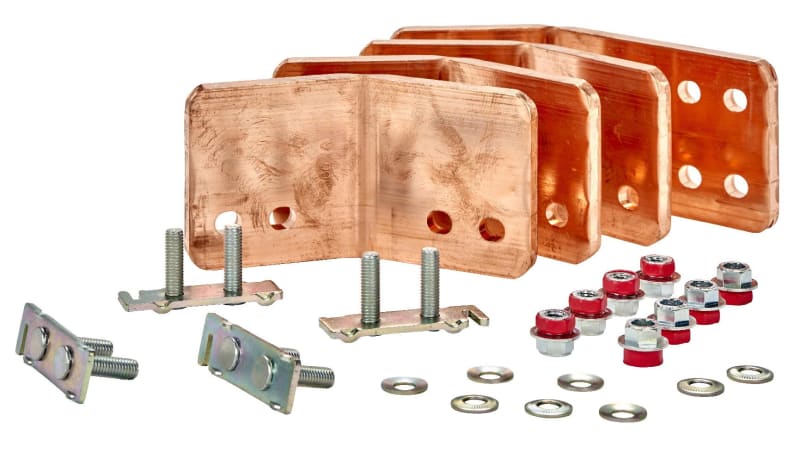

Schneider Electric LVS04611 Linergy LGYE 2500 A Internal Corner Joining Set
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04611 is a joining set for an internal corner of the Linergy LGYE 2500 A busbar system used in PrismaSeT P switchboards. Supplied as a set of four copper parts, it suits a 650 mm wide, 400 mm deep cubicle and complies with IEC 60439-1 and IEC 60439-2 with ASTA certification.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04611
- EAN / GTIN
- 3606481883568
- Sales unit
- pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Joining set
- Product name
- Linergy LGYE
- Standards
- IEC 60439-1, inside enclosure; IEC 60439-2, inside enclosure
- Product certifications
- ASTA
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 400 mm
- [Ie] rated operational current
- 2500 A
- Material
- Copper
- Quantity per set
- Set of 4
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 15.000 cm
- Package 1 Width
- 30.000 cm
- Package 1 Length
- 40.000 cm
- Package 1 Weight
- 5.666 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 15
- Package 2 Height
- 43.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 98.990 kg
- Warranty (in months)
- 18
- Rated current
- 2500 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 7419.99
Cross References
- EAN 3606481883568
- SAP 1200546990
- Code 82879512
Product Documentation
