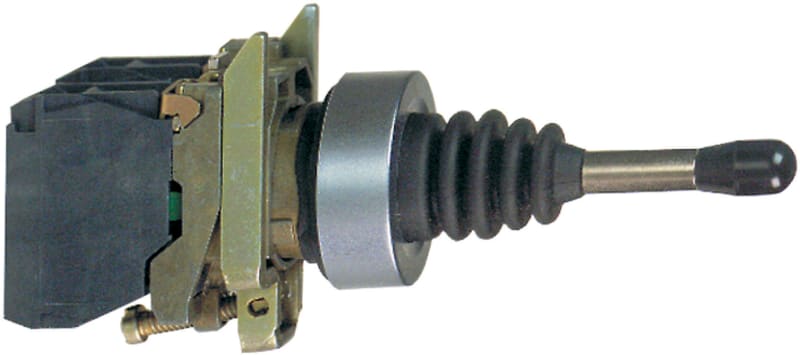

Schneider Electric XD5PA24 joystick controller Ø22 4-Direction spring return 1NO per direction

Schneider Electric XD5PA24 joystick controller Ø22 4-Direction spring return 1NO per direction is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 80 pcs; Range of product: Harmony XB5; Product or component type: Joystick controller; Device short name: XD5; Bezel material: Plastic.

Manufacturer part number (MPN)

XD5PA24

EAN / GTIN

3389110904307

Sales unit

pcs

Package quantity

80 pcs

Range of product

Harmony XB5

Product or component type

Joystick controller

Device short name

XD5

Bezel material

Plastic

Fixing collar material

Plastic

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

To 0 position spring return

Operator profile

54 mm long operating shaft

Operator position information

5 positions

Operator direction information

4 directions

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Height

47 mm

Width

30 mm

Depth

132 mm

Product weight

0.077 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Notch per direction

1

Contacts type and composition

1 NO

Contact operation

Slow-break

Contacts usage

Standard

Positive opening

Without

Mechanical durability

1000000 cycles

Device presentation

Complete product

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK03 conforming to IEC 50102

Standards

UL 508; IEC 60947-1; IEC 60947-5-4; CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

5.500 cm

Package 1 Length

12.500 cm

Package 1 Weight

81.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

80

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.903 kg

Unit Type of Package 3

P06

Number of Units in Package 3

640

Package 3 Height

75.000 cm

Package 3 Width

80.000 cm

Package 3 Length

60.000 cm

Package 3 Weight

63.224 kg

Country of origin

FR

Warranty (in months)

18

Number of switch positions

4

Rated operation current Ie at AC-21, 400 V

10 A

Centre mounting, hole diameter

22 mm

Number of actuation directions

4

Number of normally open contacts per actuation direction

1

With retraction in 0-position

Yes

Colour front ring

Black

Analogue output signal configurable

No

Degree of protection (IP)

IP66

Coder

No

Material front ring

Plastic

With front ring

Yes

Locking in 0-position

No

Joy stick length

54 mm

HS Code

8536.50
