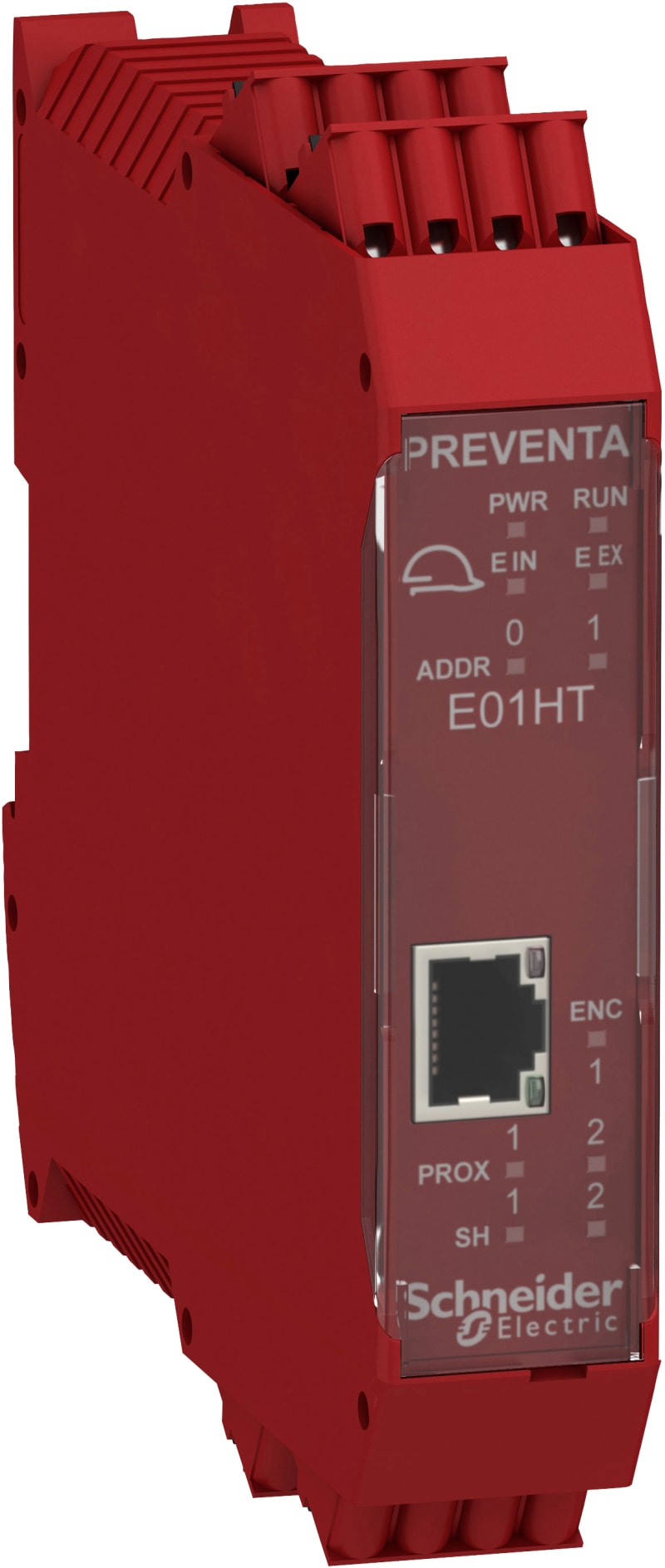

Schneider Electric Speed monitoring 1 HTL encoder expansion module with spring term XPSMCMEN0100HTG

Schneider Electric XPSMCMEN0100HTG Safety speed expansion module for 1 HTL-transmitter spring terminals.

Manufacturer part number (MPN)

XPSMCMEN0100HTG

EAN / GTIN

3606480748677

Sales unit

pcs

Range of product

Preventa Safety automation

Product or component type

Safe speed monitoring module

Device short name

XPSMCM

Electrical connection

Spring terminal

[Us] rated supply voltage

24 V - 20...20 % DC

Discrete input voltage

24 V DC

Function of module

Speed monitoring

Power consumption in W

3 W

Power dissipation in W

3 W

Integrated connection type

Backplane expansion bus

Safety level

Can reach category 4 conforming to EN/ISO 13849-1; Can reach PL = e conforming to EN/ISO 13849-1; Type 4 conforming to EN/IEC 61496-1; SILCL 3 conforming to IEC 62061

Quality labels

CE

Number of terminal blocks

4

Local signalling

1 LED green with PWR marking for power ON; 1 LED green with RUN marking for RUN (status); 1 LED red with E IN marking for internal error; 1 LED red with E EX marking for external error; 2 LEDs orange with ADDR marking for node address; 1 LED yellow with ENC marking for encoder connection status; 2 LEDs yellow with PROX marking for proximity sensors connection status; 2 LEDs yellow with SH marking for speed monitoring status

Connections - terminals

1 spring clamp terminals, removable terminal block; 2 spring clamp terminals, removable terminal block

Maximum input frequency

5 kHz for sensor; 300 kHz for encoder HTL

Sensor type

Inductive proximity sensor

Cable cross section

0.2…2.5 mm² - 24 AWG...14 AWG flexible cablewithout cable end; 0.2…2.5 mm² - 24 AWG...14 AWG solid cablewithout cable end; 0.25…2.5 mm² - 23 AWG...14 AWG flexible cablewith cable end, with bezel; 0.25…2.5 mm² - 23 AWG...14 AWG flexible cablewith cable end, without bezel; 0.5…1 mm² - 20 AWG...18 AWG flexible cablewith cable end, with double bezel

Mounting support

Omega 35 mm DIN rail conforming to EN 50022

Depth

22.5 mm

Height

99 mm

Width

114.5 mm

Product weight

0.28 kg

Standards

EN/IEC 61496-1; EN/IEC 61508; IEC 62061; EN/IEC 61800-5-1; EN/ISO 13849-1

Product certifications

cULus; RCM; TÜV

IP degree of protection

IP20 (enclosure)

Ambient air temperature for operation

-10…55 °C

Ambient air temperature for storage

-20…85 °C

Relative humidity

10…95 %

Pollution degree

2

[Uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 61800-5

Insulation

250 V AC between power supply and housing conforming to EN/IEC 61800-5-1

Overvoltage category

II

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2; Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3

Vibration resistance

+/-0.35 mm (f= 10…55 Hz) conforming to EN/IEC 61496-1

Shock resistance

10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to EN/IEC 61496-1

service life

20 year(s)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.5 cm

Package 1 Width

12.8 cm

Package 1 Length

16.2 cm

Package 1 Weight

238.0 g

Unit Type of Package 2

S01

Number of Units in Package 2

6

Package 2 Height

15.0 cm

Package 2 Width

15.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

1.668 kg

Warranty (in months)

18

Model

Expansion device

Suitable for monitoring of position switches

Yes

Suitable for monitoring of emergency-stop circuits

Yes

Suitable for monitoring of valves

Yes

Suitable for monitoring of tactile sensors

Yes

Suitable for monitoring of magnetic switches

Yes

Suitable for monitoring of proximity switches

Yes

Type of electric connection

Spring clamp connection

Suitable for rail mounting

Yes

Voltage type for actuating

DC

With detachable clamps

Yes

With start input

Yes

With muting function

Yes

With feedback circuit

Yes

Number of outputs, safety related, undelayed, semiconductors

2

Number of outputs, safety related, delayed, semiconductors

2

Type of safety according to IEC 61496-1

None

Stop category according to IEC 60204

0 + 1

Performance level according to EN ISO 13849-1

Level e

SIL according to IEC 61508

3

With approval for BG BIA

No

With approval according to UL

Yes

Country of origin

Italy

HS Code

9031.80
