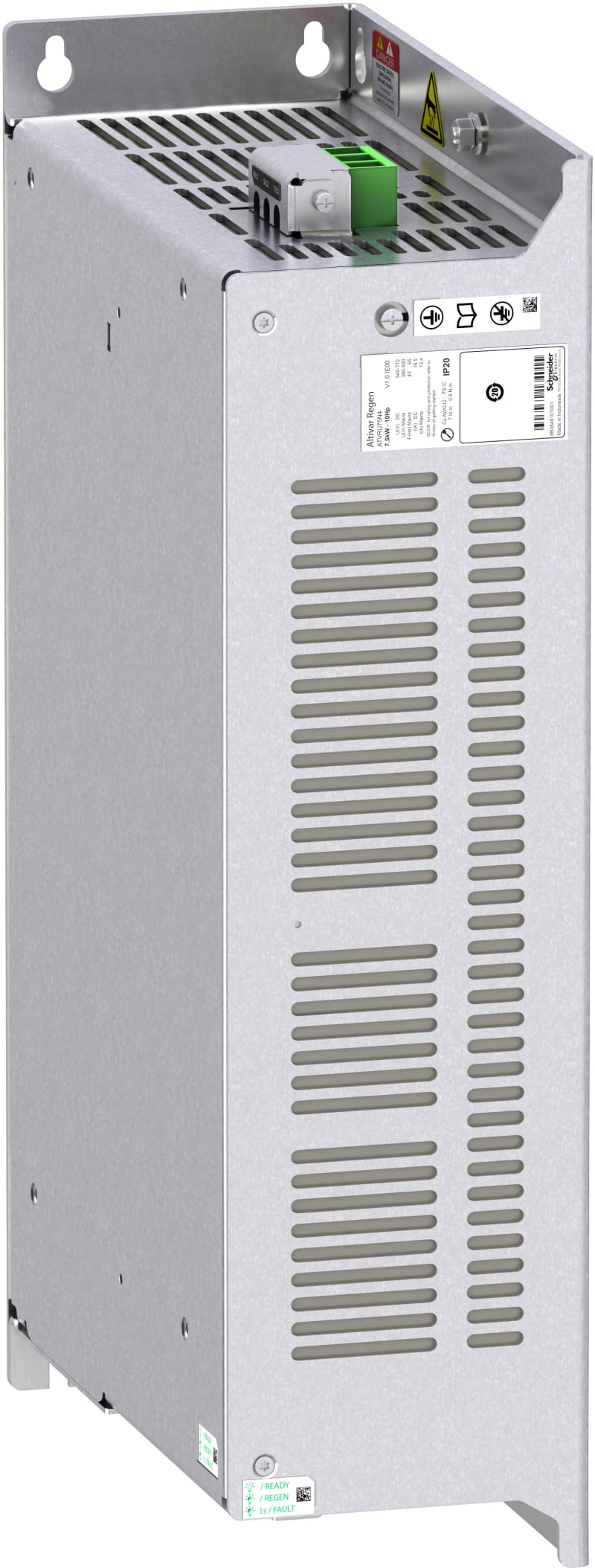

Regeneringsmodul 7,5kW ATV320,340,900

Schneider Electric ATVRU75N4 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Regenereringsmodul 7.5kW for ATV320 / 340/900 can sette energy tilbake on the mains 3 pcs can is connected parallelt.

Manufacturer part number (MPN)

ATVRU75N4

EAN / GTIN

3606481144218

Sales unit

pcs

Package quantity

6 pcs

Power

7.5 kW

Range of product

Altivar

Range compatibility

Altivar Machine ATV340; Altivar Process ATV900; Altivar Machine ATV320

Product or component type

Power module

Device application

Energy regeneration

[Us] rated supply voltage

380...500 V - 15...10 %

[Ue] rated operational voltage

456...778 V DC

Rated power in W

6.8 kW

Network frequency

45...65 Hz

Network number of phases

3 phases

fixing mode

By screws

Maximum voltage drop at rated load

3 %

Electrical connection

Control: removable screw terminal block: 0.5...1.5 mm², 20 AWG...16 AWG (bottom); Power supply: removable screw terminal block: 2.5...4 mm², 12 AWG...10 AWG (top); DC bus: removable screw terminal block: 2.5...4 mm², 12 AWG...10 AWG (bottom)

Input current

16.5 A at 380 V AC for voltage inputs (continuous); 14.5 A at 500 V AC for voltage inputs (continuous); 22.9 A at 380 V AC for voltage inputs (transient for 60 s); 19.1 A at 500 V AC for voltage inputs (transient for 60 s)

Input power

6.8 kW at 380...500 V AC for voltage inputs (continuous); 10.2 kW at 380...500 V AC for voltage inputs (transient for 60 s)

Maximum DC bus voltage

300...880 V DC

Output current

13.4 A at 380 V AC (continuous); 11.9 A at 500 V AC (continuous); 18.4 A at 380 V AC (transient for 60 s); 15.4 A at 500 V AC (transient for 60 s)

Width

80 mm

Height

337 mm

Depth

175 mm

Product weight

6 kg

Standards

IEC 61800-5-1; IEC 61800-3

Product certifications

cUL

Ambient air temperature for operation

-10…50 °C without derating; 50…60 °C with derating factor

Ambient air temperature for storage

-40…70 °C

Operating altitude

<= 1000 m without derating; 1000...3000 m with power derating 1 % per 100 m

Operating position

Vertical or horizontal position

Type of cooling

Fan

Environmental characteristic

Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3; Dust pollution resistance class 3S2 conforming to IEC 60721-3-3

Pollution degree

2 conforming to IEC 61800-5-1

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

ID

Warranty (in months)

18

Accessory

Yes

Spare part

No

HS Code

8537.10
