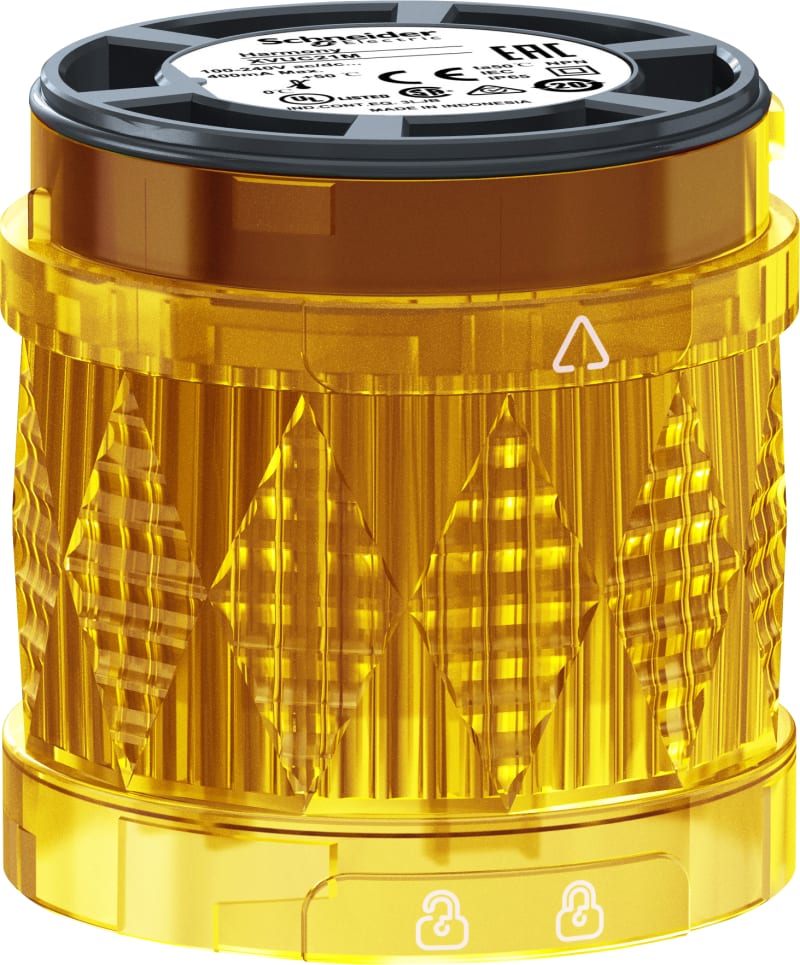

Yellow LED-unit Blink LIGHT

Schneider Electric XVUC48 Ø60 mm light unit for XVU lyskolonne in yellow colour with blinkende light.

Manufacturer part number (MPN)

XVUC48 EAN / GTIN: 3606480886997 Sales unit: pcs Package quantity: 24 pcs Range of product: Harmony XVU Product or component type: Modular tower light Beacon or indicator bank unit type: LED unit Mounting diameter: 60 mm Component name: XVU Light source: LED, yellow Device application: Automotive; Packaging machine; Machine tools Signalling type: Blinking Assembly style: Customer assembly, up to 5 units; Up to 4 units with buzzer material: PC (polycarbonate) V-2 conforming to UL 94; PC (polycarbonate) V-0 conforming to UL 94 [Us] rated supply voltage: 24 V AC/DC Maximum power dissipation in W: 1.2 W Length: 50 mm Product weight: 0.064 kg Product certifications: CE; UL; CSA Ambient air temperature for storage: -40…70 °C IP degree of protection: IP65 Ambient air temperature for operation: -25…50 °C Vibration resistance: 2 gn Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 9.0 cm Package 1 Width: 9.1 cm Package 1 Length: 13.3 cm Package 1 Weight: 143.0 g Unit Type of Package 2: S03 Number of Units in Package 2: 24 Package 2 Height: 30 cm Package 2 Width: 30 cm Package 2 Length: 40 cm Package 2 Weight: 4.034 kg Unit Type of Package 3: P06 Number of Units in Package 3: 192 Package 3 Height: 75 cm Package 3 Width: 60 cm Package 3 Length: 80 cm Package 3 Weight: 40 kg Country of origin: ID Warranty (in months): 18 Colour: Yellow Outer diameter: 60 mm Function: Flash light Voltage type: AC/DC Lamp type: LED Degree of protection (IP): IP65

HS Code

8531.80

• EAN 3606480886997
• SAP 1000746435
• Code 8439151
