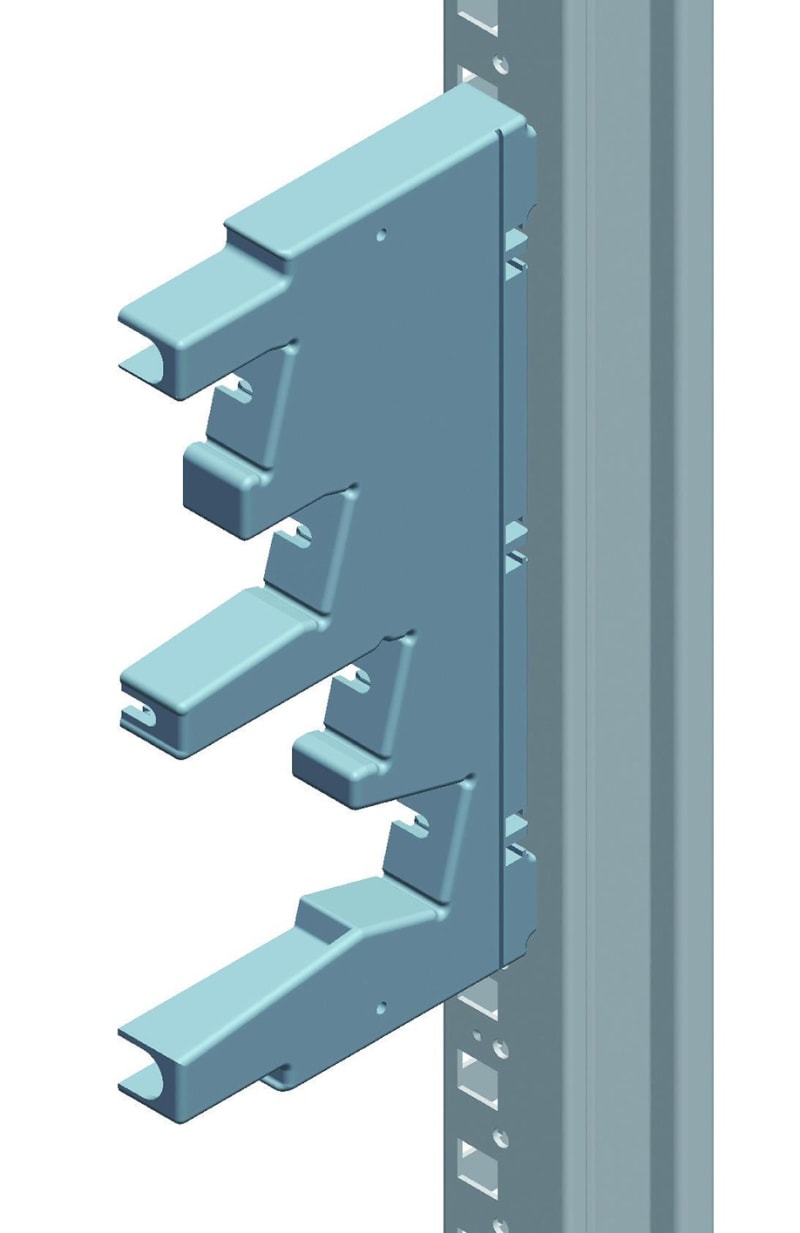

Shield clamp for Trappet busbar G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04192 Shield clamp for trappet busbar-Linergy BS-630A-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04192
- EAN / GTIN
- 3606481866981
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar support
- Product name
- Linergy BS
- Range compatibility
- Linergy Linergy BS busbar; PrismaSeT PrismaSeT G enclosure
- Cubicle-device connection
- Linergy BS lateral busbar
- installation description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm
- Permissible current
- 160 A - busbar cross section: 15 x 5 mm; 250 A - busbar cross section: 20 x 5 mm; 400 A - busbar cross section: 32 x 5 mm; 630 A - busbar cross section: 32 x 8 mm
- [Icw] rated short-time withstand current
- 10 kA (1 s) at 160 A for 450 mm between support centres; 20 kA (1 s) at 400 A for 300 mm between support centres; 13 kA (1 s) at 250 A for 450 mm between support centres; 15 kA (1 s) at 400 A for 450 mm between support centres; 15 kA (1 s) at 630 A for 450 mm between support centres; 20 kA (1 s) at 630 A for 300 mm between support centres; 25 kA (0.6 s) at 400 A for 300 mm between support centres; 25 kA (1 s) at 630 A for 300 mm between support centres
- Product weight
- 0.2 kg
- Quantity per set
- Set of 1
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 11.300 cm
- Package 1 Length
- 23.500 cm
- Package 1 Weight
- 203.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 10
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 2.380 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 320
- Package 3 Height
- 71.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 78.960 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 50 mm
- Max. rated current
- 630 A
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481866981
- SAP 1200547061
- Code 82879928
Product Documentation
