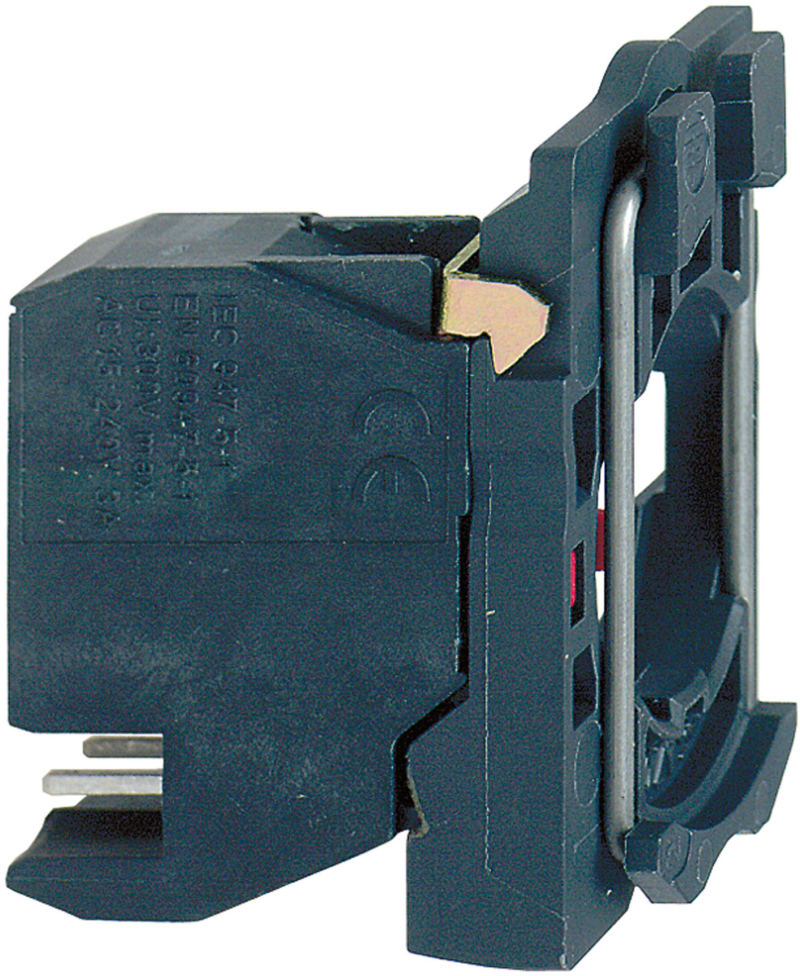

Schneider Electric single contact block with body/fixing collar 1NO plug-in connector ZB5AZ1014

Schneider Electric ZB5AZ1014 Push Button Body with 1NO Element.

Manufacturer part number (MPN)

ZB5AZ1014

EAN / GTIN

3389110924404

Sales unit

pcs

Range of product

Harmony XB5

Product or component type

Complete body/contact assembly

Device short name

ZB5

Fixing collar material

Plastic

Sale per indivisible quantity

1

Head type

Standard

Contacts type and composition

1 NO

Contact operation

Slow-break

Contact block type

Single

Connections - terminals

Plug-in connector

CAD overall width

30 mm

CAD overall height

42 mm

CAD overall depth

32 mm

Terminals description ISO n°1

(13-14)NO

Product weight

0.018 kg

Device composition

Body; Fixing collar

Contacts usage

Standard contacts

Positive opening

Without

Operating travel

2.6 mm (NO changing electrical state); 4.3 mm (total travel)

Operating force

2.3 N NO changing electrical state

Mechanical durability

10000000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

4 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1; 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 1 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 1.5 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.15 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-5-1; UL 508; IEC 60947-1; IEC 60947-5-4; JIS C8201-1

Product certifications

BV; UL; CSA; DNV; LROS (Lloyds register of shipping)

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.400 cm

Package 1 Width

3.400 cm

Package 1 Length

4.400 cm

Package 1 Weight

18.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

160

Package 2 Height

15 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

3.140 kg

Unit Type of Package 3

P06

Number of Units in Package 3

2560

Package 3 Height

75.000 cm

Package 3 Width

80.000 cm

Package 3 Length

60.000 cm

Package 3 Weight

58.240 kg

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
