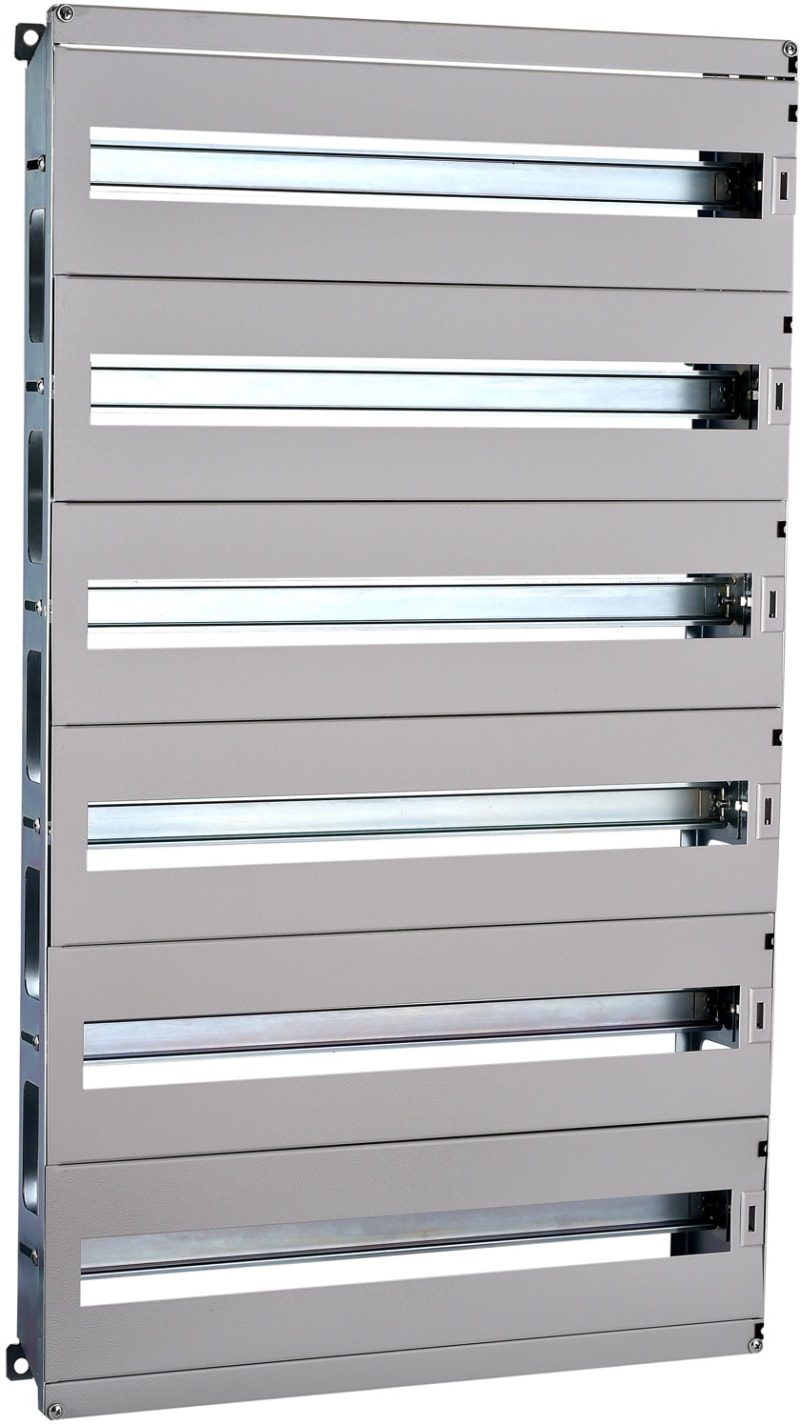

Modular frame 88M H700XW500

Modular frame 88 M H700XW500.

Manufacturer part number (MPN)

NSYDLM88 EAN / GTIN: 3606480162565 Sales unit: pcs Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Multi-purpose; Modular distribution application Product or component type: Chassis Device short name: DLM For enclosure nominal dimensions: - Mounting location: Front of enclosure; Step slide Range compatibility: PanelSeT S3D; PanelSeT CRN Device composition: 1 chassis structure; 4 front panels with 35 mm DIN rail; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on front and back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 4 Total number of 18 mm modules: 88 Type of front plate: Plain and cut-out plates Number of cut-out: 4 cut-outs Height: 653 mm Width: 455 mm Depth: 101.5 mm Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 12.000 cm Package 1 Width: 46.000 cm Package 1 Length: 66.000 cm Package 1 Weight: 6.210 kg Unit Type of Package 2: PAM Number of Units in Package 2: 21 Package 2 Height: 124.000 cm Package 2 Width: 100.000 cm Package 2 Length: 120.000 cm Package 2 Weight: 143.000 kg Country of origin: ES Warranty (in months): 18 Type of covering: With notch Number of DIN-rails: 4 Number of modular spacings per DIN-rail: 22

HS Code

8538.10

• EAN 3606480162565
• SAP 1000470579
• Code 8787503
