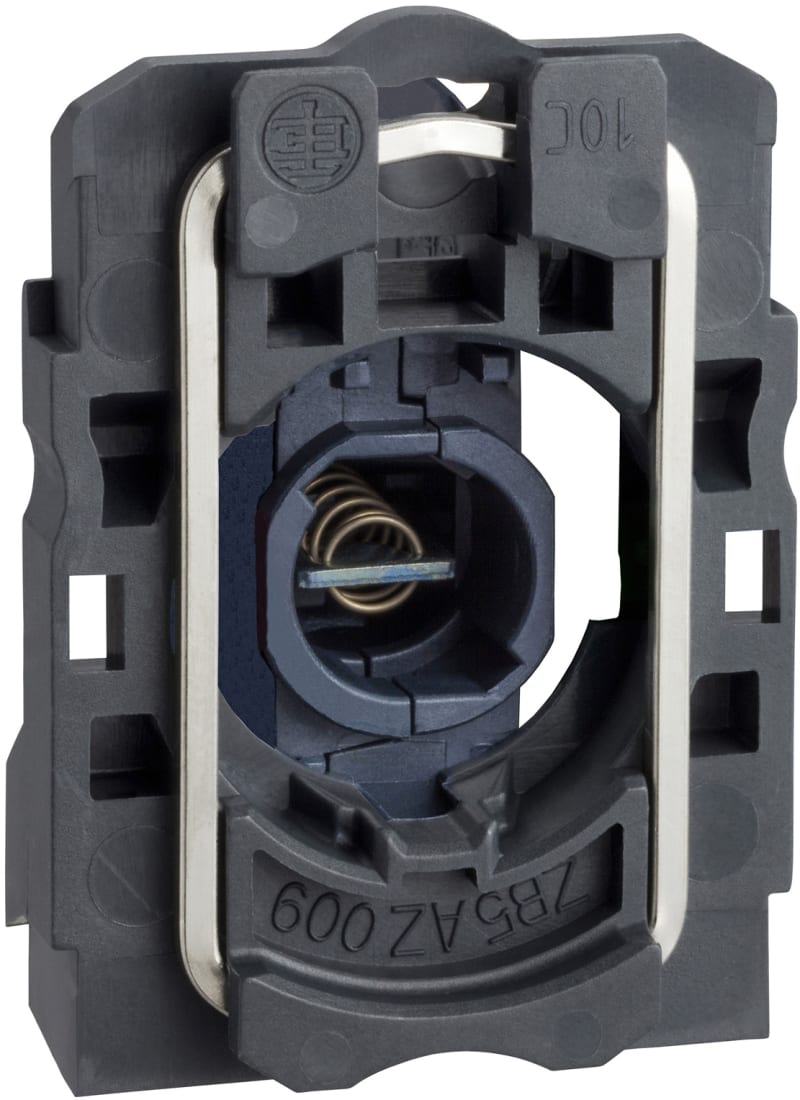

Light Block with BA9s Lamp Holder, <250 V, Harmony XB5

Schneider Electric ZB5AV6 Harmony XB5 light block (body) for Ø22 pilot lights with BA9s lamp holder, <250 V; pack of 5.

Manufacturer part number (MPN)

ZB5AV6

EAN / GTIN

3389110908282

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Complete body/light block assembly

Device short name

ZB5

Fixing collar material

Plastic

Sale per indivisible quantity

1

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Light source

Bulb not included

Bulb base

BA 9s

Light block supply

Direct <2.4 W

CAD overall width

30 mm

CAD overall height

42 mm

CAD overall depth

32 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.022 kg

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Signalling type

Steady

[Us] rated supply voltage

<= 250 V

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

Standards

IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-4; JIS C8201-5-1; UL 508; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

300

Number of Units in Package 3

2400

Country of origin

FR

Warranty (in months)

18

Lamp holder

BA9s

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

No

Lamp type

Incandescent lamp

Type of fastening

Front fastening

With light source

No

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

0–250 V

Rated voltage Ue at AC 60 Hz

0–250 V

Voltage type for actuating

AC

HS Code

8531.80
